The Shinobi 7 RX provides built-in Wi-Fi to pair with an Atomos TX device, and it can even view external RTSP H.264 streams with low-latency wireless under 60ms from up to 984′ away.
This allows your crew to move elements on the set freely without losing visual connection.
- Monitor 4K footage in DCI or UHD 4K formats via HDMI 2.0 up to 60 fps and up to 1080p60 via 3G-SDI
- Output signal via HDMI and 3G-SDI loop outputs
- The Shinobi 7 RX features HDMI/SDI cross conversion support
While connected to a compatible camera, you can simply tap the Shinobi 7 RX touchscreen for the camera to automatically focus on your point of interest.
Touch to focus takes advantage of camera focus modes such as focus tracking for effortless control.

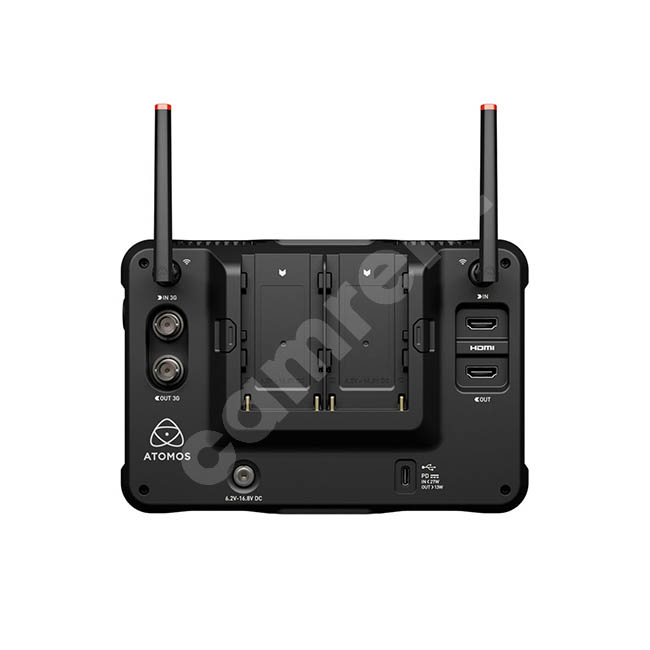

The back of the monitor features dual NP-F/L-series battery slots for longer shoot durations, and it can also accept optional battery eliminators/dummy batteries. You can also power the monitor via a USB-C PD input via an optional adapter, external battery, or power bank.
In addition to providing power, the USB-C port can provide camera control for supported cameras. The USB-C port can also be used with external calibrators without the need for a computer.
The monitor supports numerous Log formats, including:
- Sony: SLog / SLog2 / SLog3 / HLG
- Canon: C-Log / C-Log2 / C-Log3
- ARRI: Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600
- Panasonic: V-Log / HLG, JVC J-Log
- RED: RedLogFilm / Log3G10 / Log3G12
- FUJIFILM: F-Log, PQ (HDR10), HLG
- Nikon: N-Log
The monitor supports numerous HDR formats, including:
- BT.2020, DCI P3, DCI-P3 D65, and Rec. 709
- Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec. 709
- Canon Cinema: DCI P3 / DCI P3plus / Rec. 709
- Panasonic: V Gamut
- ARRI: ALEXA Wide Gamut
- JVC: LS300
- RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
The monitor runs the latest AtomOS firmware that features a variety of onscreen analysis tools such as multi-scope views, exposure, framing, focus assist, waveform, RGB parade, and histogram tools.
An SD card slot allows you to load custom 3D LUTs and apply them to both input and output signals, and they can be used with the built-in image tools for exposure control.
The Shinobi 7 RX supports intuitive camera control for Canon, FUJIFILM, Nikon, Panasonic, Sony (via USB-C), and Z CAM E2 (via optional serial cable). Its intuitive interface makes adjusting aperture, shutter speed, and ISO fast and responsive. Compatibility includes:
- Canon EOS R5, EOS R6, EOS R6 Mark III
- FUJIFILM GFX100S II, GFX100RF
- Nikon ZR, Z7 II (Stills mode only)
- Panasonic GH7, S1R M2, S1 M2, S1 M2ES, S1H
- Sony FX2, FX3A, a7V
Depending on the supported camera, it can control features such as Record Trigger, White Balance, Shutter Speed, Shutter Angle, Aperture, ISO, Camera Overlays, Record Indicator, Touch to Focus, and more.
Accurate monitoring ensures reliable results.
