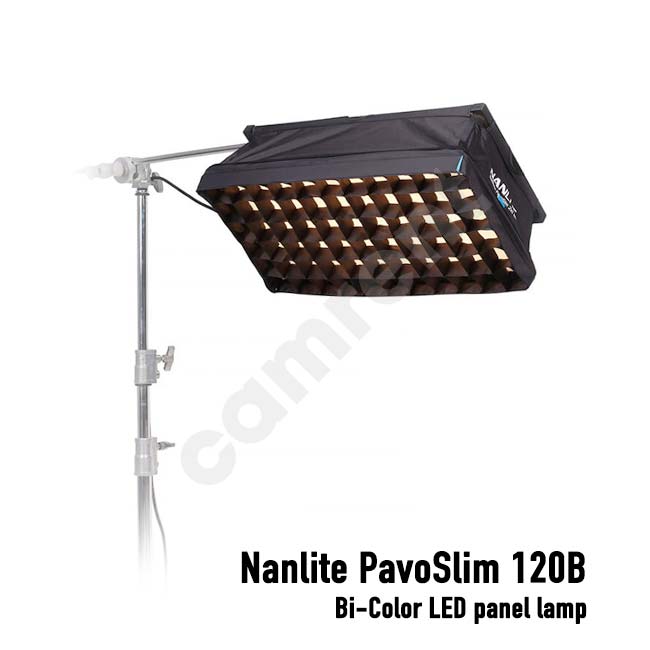

Nanlite PavoSlim 120B Bi-Color LED Panel with QR Quick-Open Softbox
Thin, lightweight, and bright, this 2×1 dormat (602×306.3×18.6mm) PavoSlim 120B Bi-Color LED Panel with Quick-Open Softbox from Nanlite is an ideal choice for shoots where color accuracy and sophisticated control are needed. Nanlite has upgraded the 120B’s softbox to give gaffers, DPs, and creators a fast, uncomplicated setup thanks to a quick-open mechanism. Offering a wide variable color temperature range of 2700 to 6500K and 0-100% dimming, this slim and powerful panel seamlessly integrates into ambient light situations, letting you match the output of most fixtures. The panel’s high CRI/TLCI ratings of 95/97 provide high color accuracy and rendering, and multiple onboard and wireless control options make for easy creative adjustments. Twelve built-in special effects are included—CCT loop, intensity loop, flash, pulse, storm, TV, paparazzi, candle/fire, bad bulb, firework, explosion, and welding. Additionally, two diffusers and an eggcrate are also included for modifying and adjusting the panel’s output. A compact padded carry case safely holds everything.
The Nanlite PavoSlim 120B is an exceptionally thin and lightweight 2×1 LED panel light that provides impressive output (17620 lux, 1637 fc @1M 5600K), 0–100% dimming, a bi-color CCT range of 2700K–6500K, power through AC or V-Mount battery, and includes a Control Unit, softbox, 2 sets of diffusion, eggcrate grid, a swivel mount, and a compact padded carrying case that safely holds everything.
SPACE-EFFICIENT & FAST This is a portable fixture that easily fits into tight spaces and quickly sets up and breaks down. It has durable, heat-dissipating metal construction that operates without a fan and was designed to provide years of reliable service.
THIN YET POWERFUL PavoSlim 120B is only 0.73″” (30.6 cm) thick, yet it features an advanced optical system that’s capable of outputting a sizable amount of light: 16210 lux (1506 fc) @1M 3200K, 17620 lux (1637 fc) @1M 5600K.
COMPLETE CONTROL The Control Unit has easy-to-use buttons, knobs, and a screen. Put the panel high up on a stand while being able to access the controls and swap out batteries easily. Features a locking metal DMX/RDM port, Bluetooth for the free NANLINK app, and 2.4G for the WS-RC-C2 handheld remote or WS-TB-1 Transmitter Box (both sold separately).

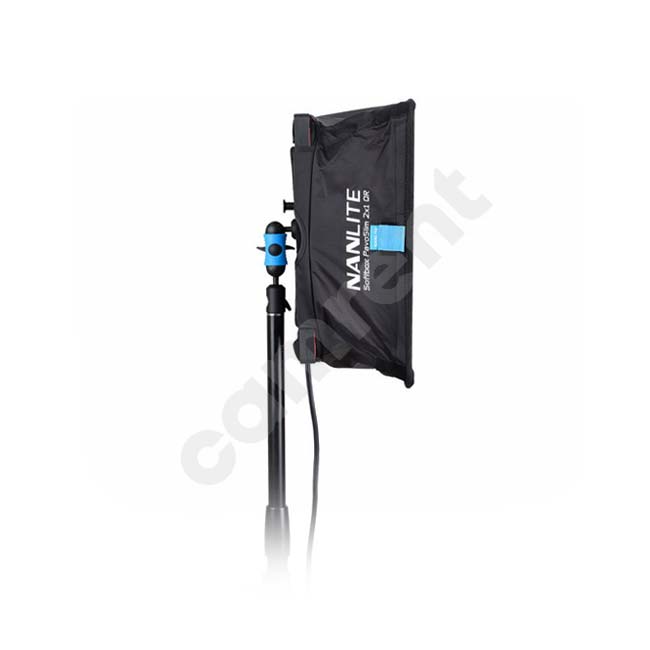

VERSATILE MOUNT The body of PavoSlim is metal with multiple 4-pin locking plates incorporated into the back. The included mount slides into the plates and locks securely. It can be swiveled and locked into the exact position you desire.
EXPANDABLE SYSTEM Coupling accessories are available (sold separately) that let you fuse two PavoSlim panels together to create larger light sources.

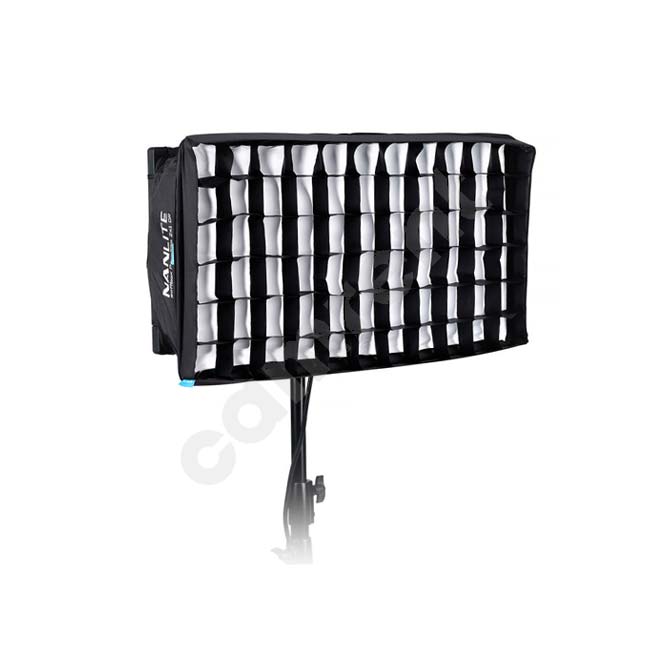

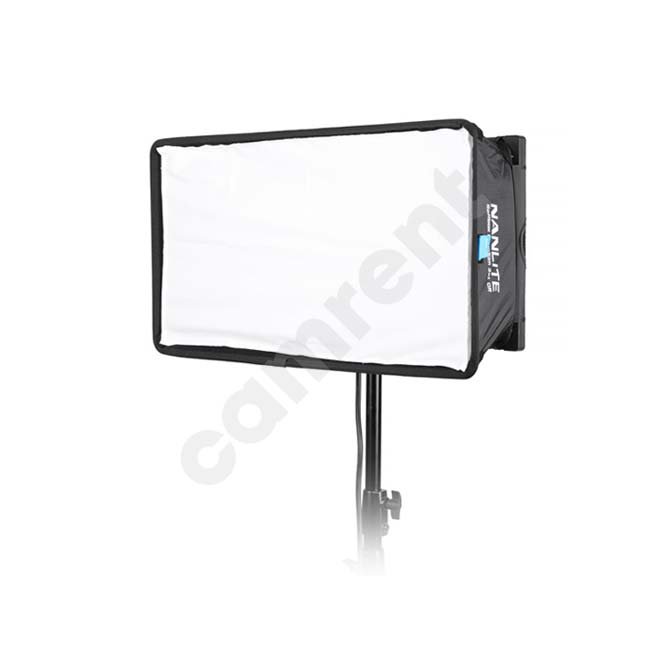

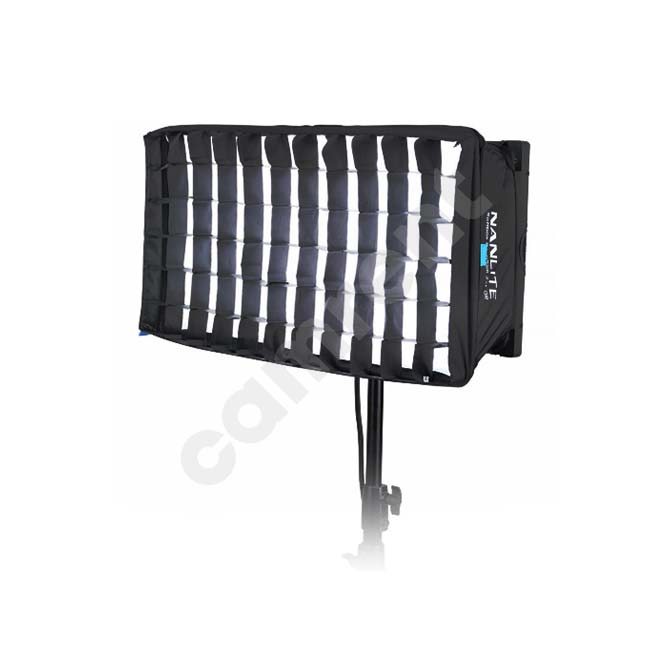

SOFTBOX & CASE The slender padded carrying case has room for all the included accessories, like the softbox, grid, 1.5 stop, and 2.5 stop diffusers (which all set up and break down remarkably quickly with hook-and-loop fasteners). The case won’t weigh you down or consume unnecessary space in transit or storage.
FLICKER-FREE ACCURACY Every Nanlite fixture delivers highly accurate performance that remains flicker-free even at incredibly high frame rates, and PavoSlim is no different. With the 120B, you can always have confidence in your colors: CRI average 95, TLCI average 97, TM-30 Rf average 95 and Rg average 102, SSI 3200K 83 and 5600K 73.
- Rated Power: 150W
- Input Voltage/Current: DC 24V, DC (Battery)14.4-26V, AC100-240V 50/60Hz
- CRI/TLCI: Average 95/ Average 97, CCT: 2700K-6500K
- Control: On-board controller, 2.4G, Bluetooth, NANLINK APP, DMX/RDM
- Product Size(mm): 602×306.3×18.6mm/23.7×12.06×0.73″
- Product Weight (kg): 1.65kg/3.64lb
- Illumination:
5600K: 52200 lux@0.5m, 17620 lux@1m, 4815 lux@2m
3200K: 48830 lux@0.5m, 16210 lux@1m, 4422 lux@2m
Nanlite PavoSlim 120B Specs
| Item Type | |
| Included Light Modifier | |
| Included Filters | |
| Included Storage Case | |
| Photometrics | |
| Color Temperature | |
| Color Modes | |
| Color Accuracy Standard | |
| Dimming | |
| Cooling System | |
| Beam Angle | |
| Built-In Flash | |
| Umbrella Mount | |
| Front Accessory Mount |
| Wireless Remote Control Type | |
| Mobile App Compatible |
| Power Source | |
| Battery Plate Type | |
| Battery | |
| Input Power | |
| Included Adapter / Cable | |
| Inline Switch | |
| Power Pass-Thru | |
| Power Consumption |
| Fixture Mounting |
| Display | |
| Dimensions | |
| Weight |
