CAMRENT Nanlux Evoke 600C Full RGB LED Lamp

Nanlux Evoke 600C LED Full RGB Light

Name: Nanlux Evoke 600C LED Full RGB Light
SKU: CAMR_EVOK600C
Price: 65.00 EUR
Availability: InStock

Kaina: 65,00 €

Komplektacija:
NANLUX EVOKE 600C Full RGB Color LED lempa
Nanlux 25º reflektorius
Maitinimo laidas, nuotolinis pultelis su laidu

Reikalingas tvirtas stovas su junior receiver jungtimi

Produkto kodas: CAMR_EVOK600C Kategorijos: LED Lempos, Nanlite, Apšvietimas Žymos: bi-color, bowens, color-lamp, full-rgb, led light, nanlux, nlm

Specifikacija

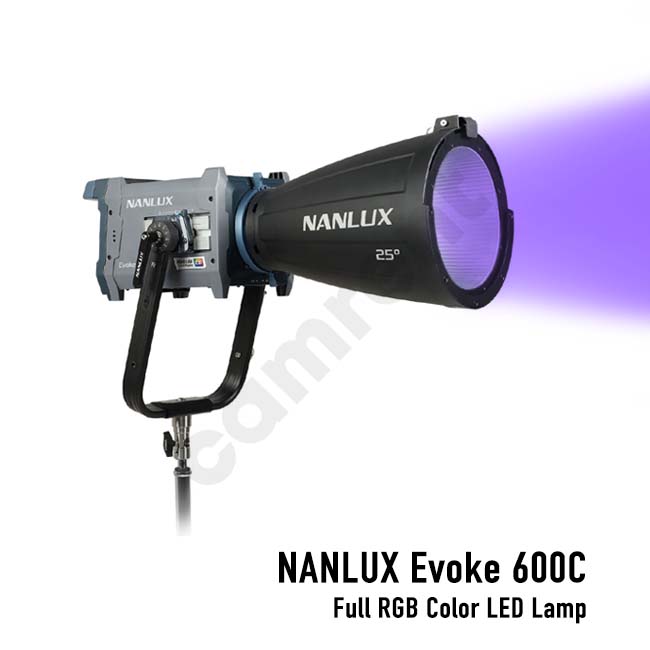

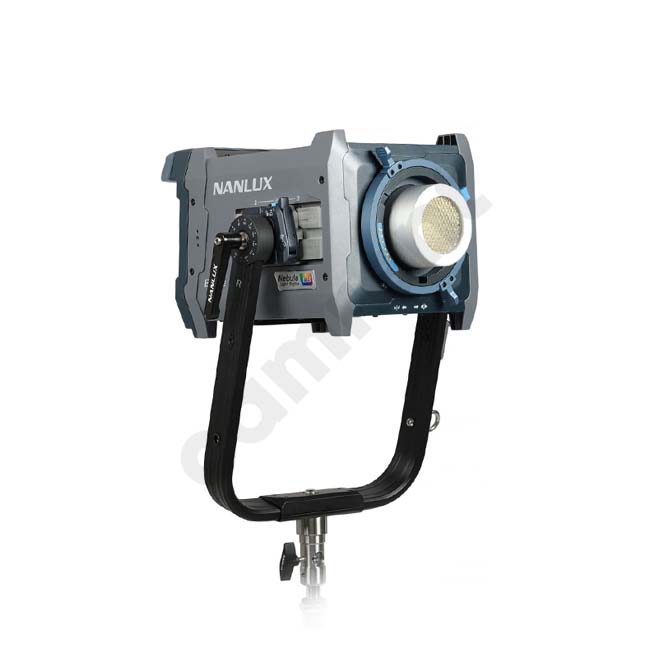

Nanlux Evoke 600C Full RGB LED Spot Light

Powerful and extremely color-accurate, the Evoke 600C RGB LED Spot Light Trolley Case Kit from Nanlux arrives as the ideal choice for a light setup in need of an all-in-one full-color fixture with no external ballast. 600C itself measures 14 x 9.7 x 8″ and weighs 16 lb to offer a native BE mount for standard Bowens compatibility. Developed to accommodate most situations, the light’s wide color balance from 1000 to 20,000K is backed by an extensive +/- 200 green/magenta tint-shifting. What is behind this advanced capability is the Nebula C8 8-chip light engine that mixes deep red, red, amber, lime, green, cyan, blue, and indigo LEDs for the most vivid colors. The Evoke 600C permits AC/DC power and features a wide range of reliable control methods—onboard, DMX/RDM, LumenRadio CRMX, app, or using the supplied wired controller. Finally, the Evoke 600C is built around an IP66-rated housing for all-weather protection. Nanlux adds a trolley case that ensures full protection during storage and transportation.

Key Features:

Light, Trolley Case & Wired Controller
Output: 24,620 Lux at 1m / 3.3′ (Bare, 5600K)
1000-20,000K CCT; Full RGB Color Control
+/- 200 Green/Magenta Tint Adjustment
8-Chip Light Engine & AC/DC Operation
Onboard, DMX/RDM, CRMX & App Control
CRI 96 | TLCI 97
IP66 Rating & Bowens Compatibility
Includes Yoke & AC Power Cord
Includes 25° BE Mount Reflector

Your Go-To Powerhouse Fixture

Using a reliable 8-chip light engine, the Evoke 600C’s Nebula C8 technology produces bright and accurate illuminance for a variety of scenarios—meaning deep saturation, warm CCT, and wide color gamut with eight colored LED emitters. The Evoke 600C features advanced light mixing technologies ensuring accuracy in CCT changes from 1000K all the way up to 20,000K. The Evoke 600C outputs an impressive bare light 24,620 lux at 3.3′ and 5600K or up to 20,820 lux at a relevant distance of 9.8′ using its 25° reflector.

Nebula C8 LED Light Engine

Nanlux’s goal here was to find the highest level of accuracy. Through rigorous testing, the brand was looking for a specific number of combined LEDs that could produce highly accurate color rendition and the widest possible color range. By applying the Nebula C8 technology, the Evoke 600C’s 8-chip LED engine means the most accurate, broadest, and richest spectrum of the color space. Developed for professionals who care about the quality of color rendition, the Evoke 600C has gone through the most rigorous and professional testing until it became an accurate and extremely versatile full-color fixture that is larger than the 150C, but still compact.

Accurate Color, Precise Dimming & Effects

Always light with confidence: whether you’re dimming down or going to full intensity. The Evoke 600C features 0-100% dimming capabilities in 0.1% step increments for smooth light fading and seamless adjustments. CRI 96, TLCI 97, SSI 78 at 5600K, and SSI 86 at 3200K are high ratings that demonstrate precise color rendering, which translates in pleasing tones. Besides that, 15 built-in effects are CCT loop, INT loop, HUE loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, fireworks, explosion, and welding.

Extensive Operating Options

Nanlux offers a generous bounty of methods to control the Evoke 600C, supporting both wired and wireless control for simple or complex sets. Dimming and other adjustments can be made locally, over DMX/RDM, or by using other advanced options. These operating options include: intuitive onboard or wireless Nanlink app control via Bluetooth, DMX control with an optional DMX console, wireless DMX via LumenRadio CRMX, or an optional WS-RC-C2 wireless remote. Here, Nanlux supplies the WC-EXT wired controller that magnetically attaches to metal surfaces or to the included magnetic base of the fixture. The optional AS-EXT-LAN adapter also supports Ethernet control with the ArtNet/sACN protocols. NFC functionality allows for quick app control.

Simplified AC/DC Power & Cooling System

One of the main highlights of this fixture is its convenient all-in-one design with no need for an external ballast. A single cord plugs into one port for both AC and DC power options. Power options are AC 100-240V or DC 48V. To keep the light from overheating, this fan-cooled fixture provides five different modes: smart, full speed, low speed, pause, and off.

25° BE Mount Reflector

Paired with its included 25° reflector, the Evoke 600C enables BE mount-compatible light modifiers, offering standard Bowens mount compatibility, which expands your modifying possibilities. Electronic contacts communicate with select modifiers for optimized performance. An optional NL to BE mount adapter expands your light shaping options for use with NL mount accessories.

All-Weather Protection

Rugged and durably constructed, the IP66-rated design of the Evoke 600C protects the fixture from dust, water, rough weather, and demanding environments. Do not worry about location work under the rain or any eventuality that occurs on set. The light was made to be robust, but its modular design facilitates repairs if needed.

Accessories

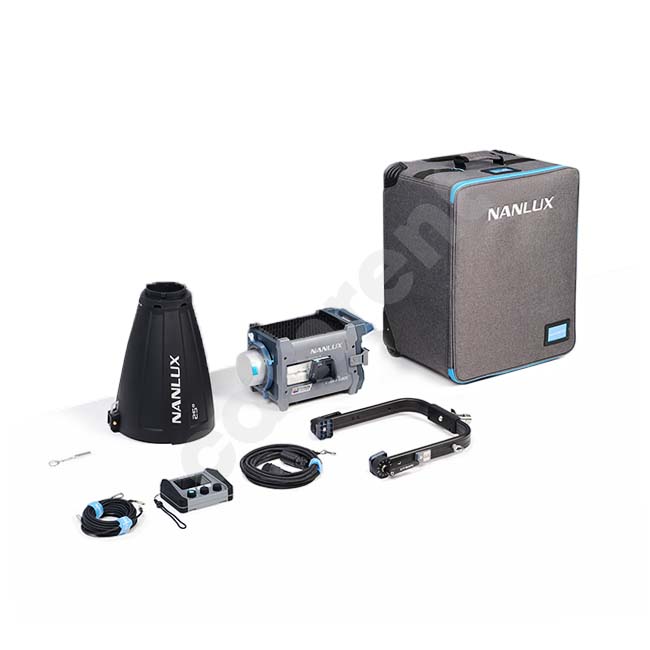

The Evoke 600C is conveniently packed with a 19.6′ long AC power cord, a USB flash drive, a wired controller, and a 26.2′ long connection cable.

Illumination (lux / fc)

Light Only
Distance	1M	3M	5M
3200K	22130 lux / 2056 fc	2512 lux / 233 fc	952 lux / 88 fc
5600K	24620 lux / 2287 fc	2754 lux / 256 fc	1042 lux / 97 fc
R	3790 lux / 352 fc	421 lux / 39 fc	158 lux / 15 fc
G	13910 lux / 1292 fc	1567 lux / 146 fc	592 lux / 55 fc
B	2109 lux / 196 fc	236 lux / 22 fc	89 lux / 8 fc
With 25° Reflector
Distance	3M	5M	7M
3200K	17610 lux / 1636 fc	5780 lux / 537 fc	2866 lux / 266 fc
5600K	20820 lux / 1934 fc	6810 lux / 633 fc	3380 lux / 314 fc
R	2326 lux / 216 fc	771 lux / 72 fc	380 lux / 35 fc
G	11110 lux / 1032 fc	3640 lux / 338 fc	1810 lux / 168 fc
B	1866 lux / 173 fc	614 lux / 57 fc	304 lux / 28 fc

Nanlux Evoke 600C Specs

Light Fixture

Item Type	1x LED Spot Light
Included Light Modifier	1x Reflector
Included Storage Case	Yes
Photometrics	3200K: 2055 fc / 22,130 Lux at 3.3′ / 1 m (Unmodified) 233 fc / 2512 Lux at 9.8′ / 3 m (Unmodified) 88 fc / 952 Lux at 16.4′ / 5 m (Unmodified) 5600K: 2287 fc / 24,620 Lux at 3.3′ / 1 m (Unmodified) 255 fc / 2754 Lux at 9.8′ / 3 m (Unmodified) 96 fc / 1042 Lux at 16.4′ / 5 m (Unmodified) 25° at 3200K: 14,723 fc / 158,490 Lux at 3.3′ / 1 m (with Reflector)* 1635 fc / 17,610 Lux at 9.8′ / 3 m (with Reflector) 536 fc / 5780 Lux at 16.4′ / 5 m (with Reflector) 25° at 5600K: 17,407 fc / 187,380 Lux at 3.3′ / 1 m (with Reflector)* 1934 fc / 20,820 Lux at 9.8′ / 3 m (with Reflector) 632 fc / 6810 Lux at 16.4′ / 5 m (with Reflector)*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature	1000 to 20,000K
Color Modes	RGB, Daylight, Tungsten
Color Accuracy Standard	CRI 96 TLCI 97 SSI 78 at 5600K SSI 86 at 3200K TM-30 Rf 96 TM-30 Rg 100
Dimming	App-Controlled / Built-In Dimmer / Controller Included / DMX / RDM • 0 to 100%
Cooling System	Fan
Beam Angle	65° Unmodified 25° with Included Reflector
Built-In Flash	No
Preprogrammed Effects	Yes
Umbrella Mount	No
Front Accessory Mount	Proprietary

Connectivity

Wireless Remote Control Type	Bluetooth CRMX Radio/RF *Remote Not Included
Mobile App Compatible	Yes: Android & iOS App Name: Nanlink Functionality: Remote Control

Power & I/O

Power Source	AC Power (Cable Included) Battery (Not Included)
Inputs/Outputs	1x Proprietary Power Input ( 100 to 240 VAC, 50 / 60 Hz 48 VDC) 1x Unspecified Remote Input 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output
Battery	1x Battery Power Station, 48 VDC (Not Included)
Input Power	48 VDC at 12.5 A 100 to 240 VAC, 50 / 60 Hz at 8 A
Included Adapter / Cable	1x USA Type-A/B Plug to Proprietary Cable (19.7′ / 6 m) 1x Unspecified to Unspecified Cable (26.2′ / 8 m)
Inline Switch	No
Power Pass-Thru	No
Power Consumption	600 W

Mounting

Yoke Type	Manually-Operated Yoke
Fixture Mounting	Support Mount 1x 1-1/8″ Stud with 5/8″ Receiver (Via Yoke Mount) Accessory Mount Multiple x 1/4″-20 Female Thread 1x 3/8″-16 Female Thread

General

Display	Yes
Environmental Resistance	Dust/Weather/Water-Resistant (IP66)
Operating Conditions	-4 to 113°F / -20 to 45°C
Certifications	BIS, CE, FCC-ID, Kcc, NCC, PSE Circle, RoHS, UKCA
Dimensions	14 x 9.7 x 8″ / 35.6 x 24.6 x 20.3 cm (Fixture) 22.23 x 18.11 x 14.57″ / 56.46 x 46 x 37.01 cm (Included Storage Case)
Weight	16 lb / 7.3 kg (Fixture with Reflector/Yoke)

Svoris	2200 g
