Tilta Nucleus-M II Lens Control System

Name: Tilta Nucleus-M II Lens Control System
SKU: CAMR_TLTNUCLMII
Price: 40.00 EUR
Availability: InStock

Kaina: 40,00 €

Komplektacija:
1x Nucleus-M II FIZ Hand Unit + Electronic Focus Marking Disk
1x Nucleus-M II Lens Motor (2x in Ultimate Kit)
2x Nucleus-M II Handgrip (Left+Right) (Ultimate Kit only)
1x Nucleus-M II Zoom Module for Handgrip (Ultimate Kit only)
1x Nucleus-M II Handgrip to ARRI Rosette Adapter (Ultimate Kit only)
5 x Nucleus-M II Follow Focus Marking Disks
1x Nucleus-M II Monitor Mounting Bracket for FIZ Hand Unit
1x Nucleus-M II Baby-Pin Adapter for Monitor Bracket
1x Nucleus-M II FIZ Hand Unit Lanyard
2x Nucleus-M II 7-Pin to 7-Pin Cable 11.8″, 19.7″
1x Tilta Nucleus-M II D-Tap to 7-Pin Power Cable (27.6″)
1x Nucleus-M II 0.5 MOD Motor Gear
2x Nucleus-M II Motor Rod Mounts (15mm, 19mm)
Nucleus-M II Hard-Shell Waterproof Case

Produkto kodas: CAMR_TLTNUCLMII Kategorijos: Fokusavimo sistemos, Objektyvų priedai

Specifikacija

Tilta Nucleus-M II Lens Control System

Advanced Four-Channel Lens Control System

The Tilta Nucleus-M II Wireless Lens Control System Ultimate Kit provides advanced, four-channel lens control for cine-style shooters. Compatible with first-gen Nucleus-M components, this enhanced version features more reliable transmission, greater precision, a 2.4″ display, updated algorithms, and L-series battery power.

Key Features:

4-Channel Focus, Iris, Zoom & ND Control
2.4″ Touchscreen, Electronic Focus Ring
Reliable & Fast 0.02-Second Response
Handwheel, Right & Left Handgrips
Two Lens Drive Motors, 15 & 19mm Mounts
Use Handwheel on Right or Left Side
Dedicated Interference-Resistant Channel
Two 0.8 MOD & One 0.5 MOD Drive Gears
128 Lens Data Presets with Hand Unit
MARK Point & RANG Memory Protection

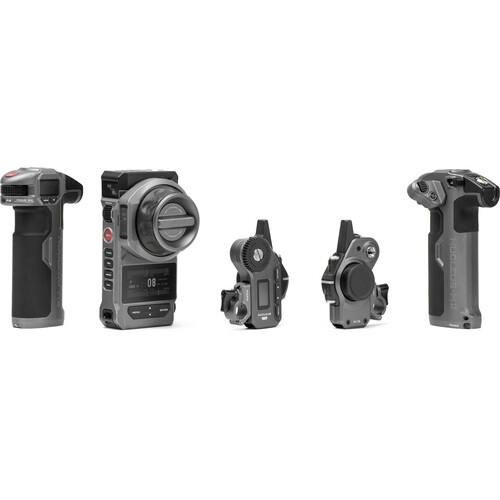

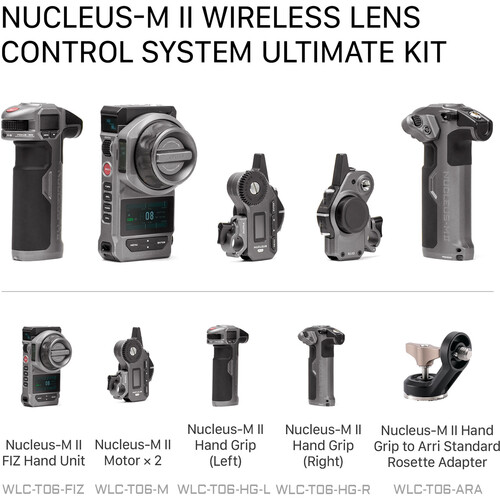

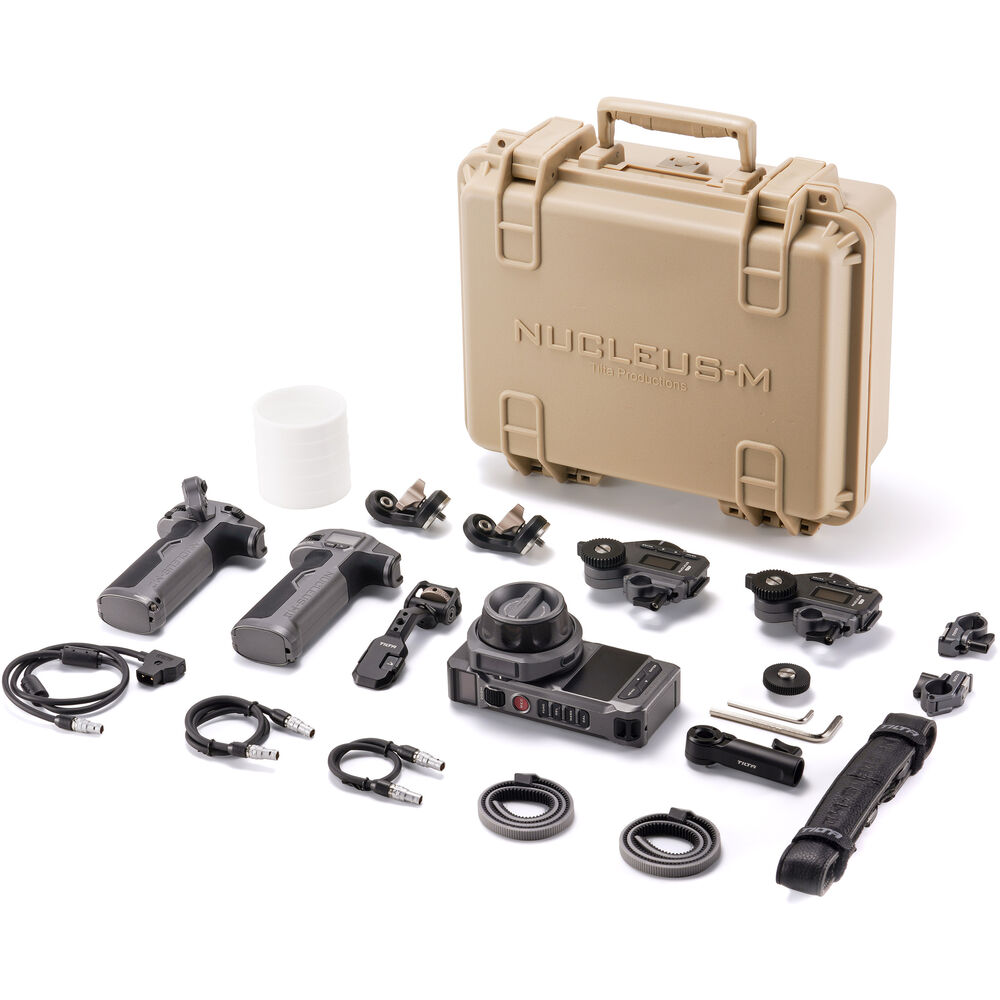

This Nucleus-M II ultimate kit comprises a FIZ handwheel controller, lanyard, ARRI rosette adapter, one 0.5 and two 0.8 MOD gears, one electronic focus and five standard focus disks, two motors, right and left handgrips, 15 and 19mm rod mounts, baby pin and hand unit monitor mounts, 7-pin and D-Tap cables, and a waterproof hard case that protects the system during transport and storage.

This updated system features seamless integration with the first-generation Nucleus-M, eliminating any learning curve for existing Nucleus-M users. It retains the damping adjustment and menu shortcut layout of the original version.

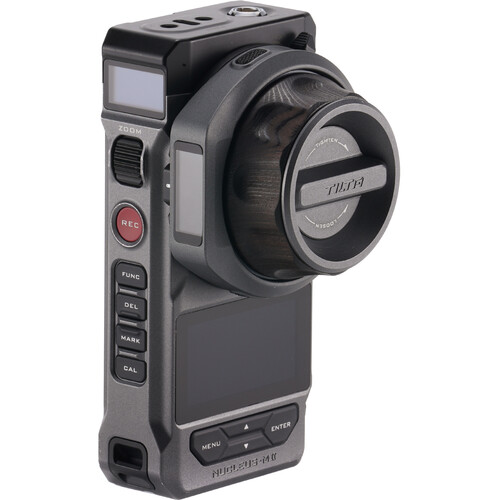

Handwheel Unit

The handwheel unit now features adjustable tension, built-in lens mapping, and clear focus, iris, and zoom information displayed in up to four different locations.
Four control options now include the wheel and a rocker, slider, and dial.
Control settings like white balance, ISO, and shutter speed for select cameras.

Electronic Marking Disk

The Nucleus-M II features a new electronic marking disk that lets execute precise focus pulls even in lower light levels.
This detachable ring can be removed to return to your physical focus marks.

Larger 2.4″ Touchscreen Display

Use the new 2.4″ color touchscreen to quickly access controls like focus, aperture, ISO, and more.

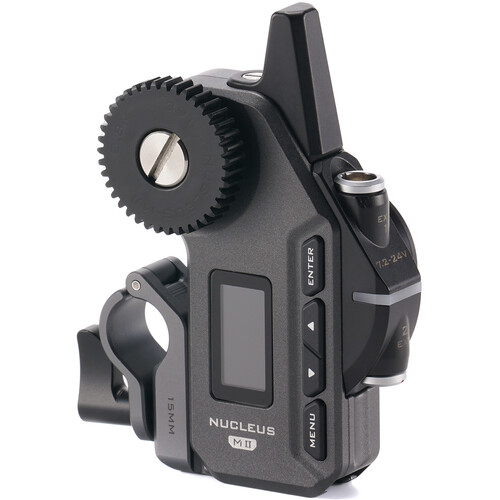

Redesigned Lens Motors

The redesigned lens motors now offer a streamlined user interface, high torque, color-coded LED indicators, and a compact form that is ideal for gimbal, handheld, and drone use.

Updated Algorithms

The Nucleus-M II’s new PID 2.0 (Proportional Integral Derivative) algorithm now offers a fast 0.02 second response time with smooth, stutter- and delay-free adjustments.
When used with the handwheel, you can now control up to four channels.
It can be paired effortlessly with stabilizers like the DJI RS 2, reducing your setup time.
The modular design lets you quickly replace gears.
This kit includes both 15 and 19mm single-rod mounts.

Professional Design

Four-Channel Control

The Nucleus-M II offers not only focus, iris, and zoom, but also a fourth channel used for geared filters like Tilta’s variable ND for the Mirage Pro Matte Box.
The ND control lets you make real-time exposure adjustments from a distance, a handy feature for capturing gimbal, stabilizer, handheld, or complex dolly shots.

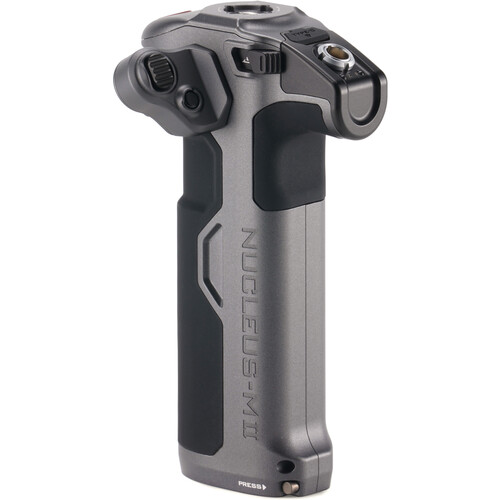

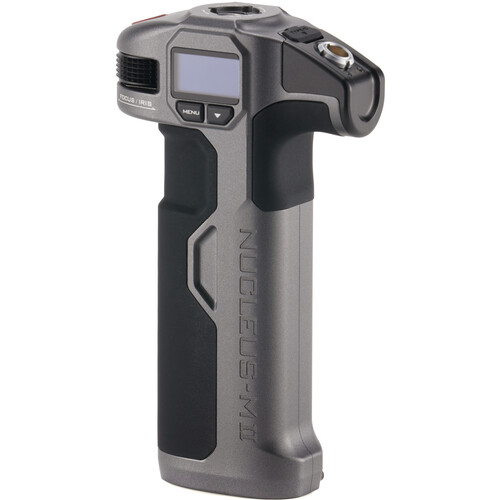

Ergonomic Handgrips

You can configure the ergonomic handgrips for maximum comfort and easily switch between the primary and secondary controls.
Set up the Nucleus-M II as a top handle, in handheld mode, or in a stabilizer configuration.

Sony L-Series Type Compatibility

The handwheel unit is powered using widely available Sony L-Series type batteries that you may already have in your kit, providing long runtimes.

Settings Presets

The Nucleus-M II handwheel controller can store up to 128 data presets, letting you quickly recall settings with a touch.

Power Loss Protection

Power loss protection maintains your MARK point and RANG memory setting, even after an outage.

Upgraded Control

Multi-Point Collaboration

The Nucleus-M II supports multi-control adjustments for both camera and lens motor settings, letting solo operators or teams tweak each FIZ parameter.

Expanded Compatibility

Works with a Wide Range of Ecosystems

This system works with both Tilta and DJI ecosystems for seamless hand unit compatibility.
Tilta compatibility:
First-gen Nucleus M lens control motors.
Nucleus Nano lens control motors.
DJI compatibility.
Built-in DJI RS protocol lets you directly control DJI lens motors via a DJI RS stabilizer.

Right- or Left-Hand Use, Robust Channels

The detachable handwheel and thumb module let you easily set up the Nucleus-M II for left-hand use.
Use the included baby pin and monitor brackets to mount your system on a C-stand, camera cart, or handheld rig.
More robust channels provide a stronger, more stable signal for precise focusing.

Additional Features

The Nucleus-M II system lets you dim the lens motor’s LEDs, eliminating distractions on a set with lower light levels.
Transport your Ultimate Kit using the soft carrying bag or the durable, waterproof hard case.

Tilta Nucleus-M II Specs

System

Number of Channels

Receiver / Motor

Bluetooth	Yes
Included Drive Gear	0.5 / 0.8 MOD
Rod Standard	Motor: 15 mm Single Rod Motor: 19 mm Single Rod
Included Motors	2
Motor Model	Nucleus-M II
Maximum Peak Torque	Not Specified by Manufacturer
[Component] I/O	1 x LEMO 7-Pin Input 1 x LEMO 7-Pin Output
Battery Type	No
