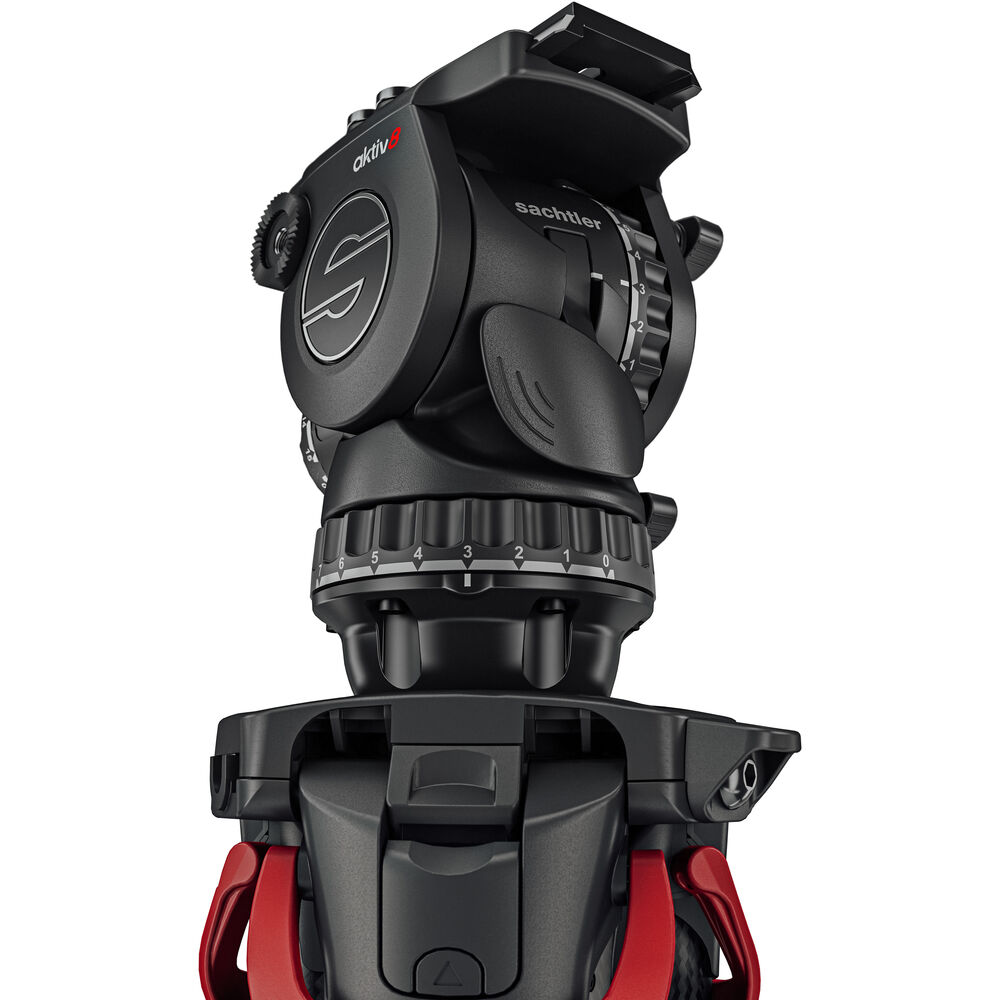

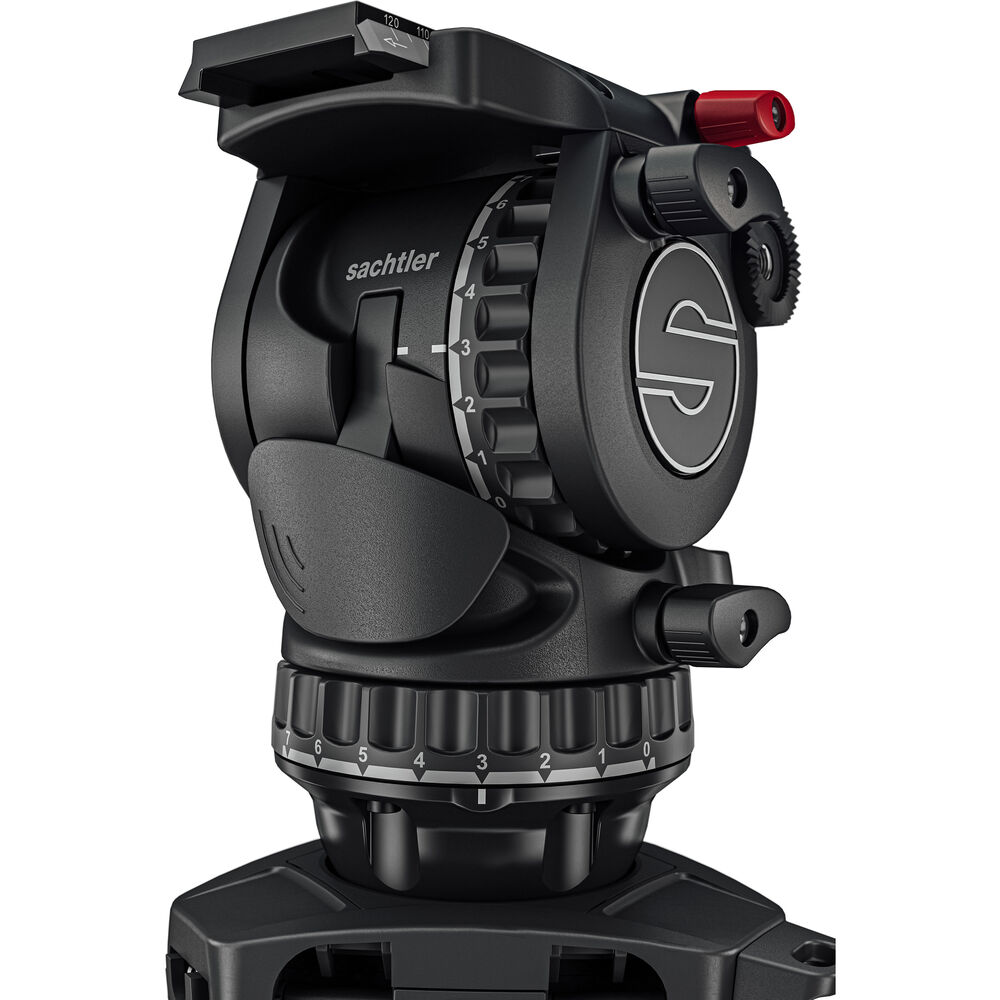

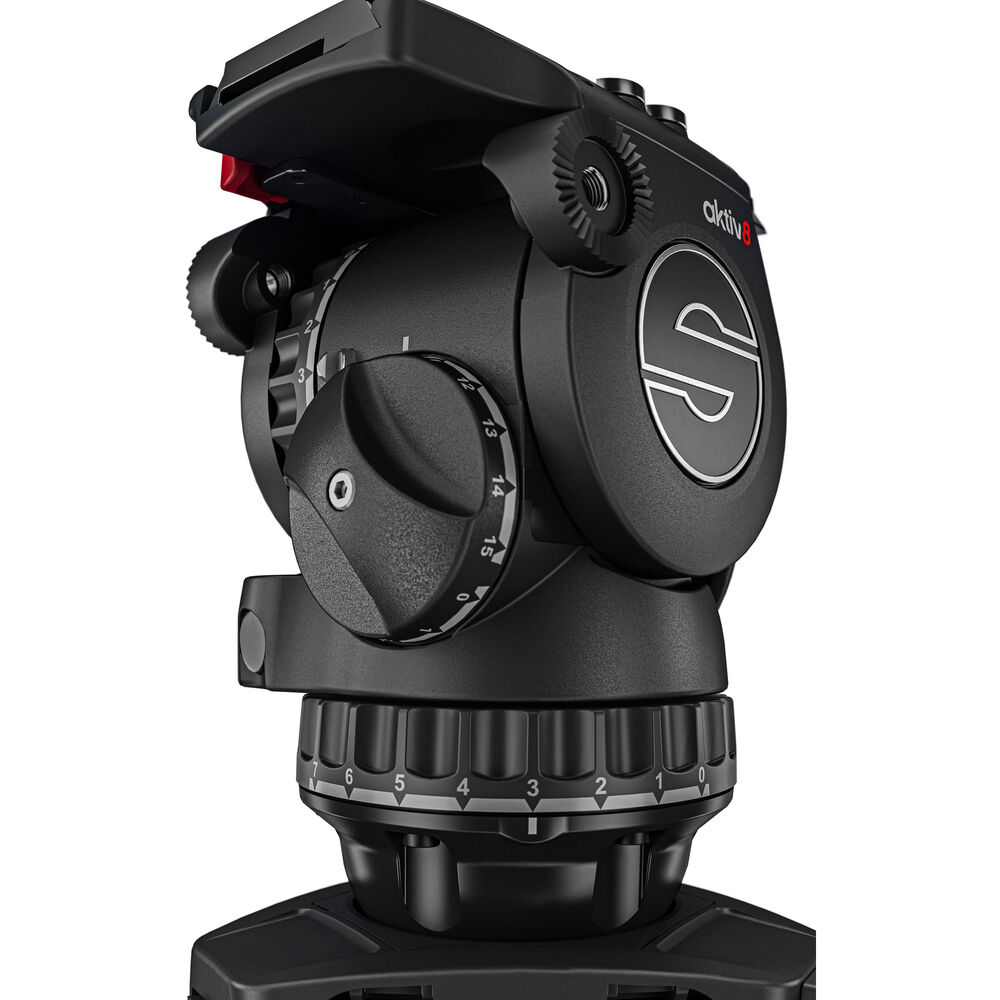

The aktiv8 Sideload Fluid Head uses Sachtler‘s truly innovative SpeedLevel technology to provide almost instant mounting and leveling of your camera rig on Sachtler 75mm tripod legs. The clamp and stud SpeedLevel system saves precious time leveling your camera rig by eliminating the need to screw on a tie-down knob. Designed for documentary, news, and corporate productions, the aktiv8 supports rigs weighing up to 26.5 pounds. This 75mm ball fluid head features 15 steps of counterbalance and seven steps of pan and tilt drag adjustment, plus zero settings for both balance and drag.

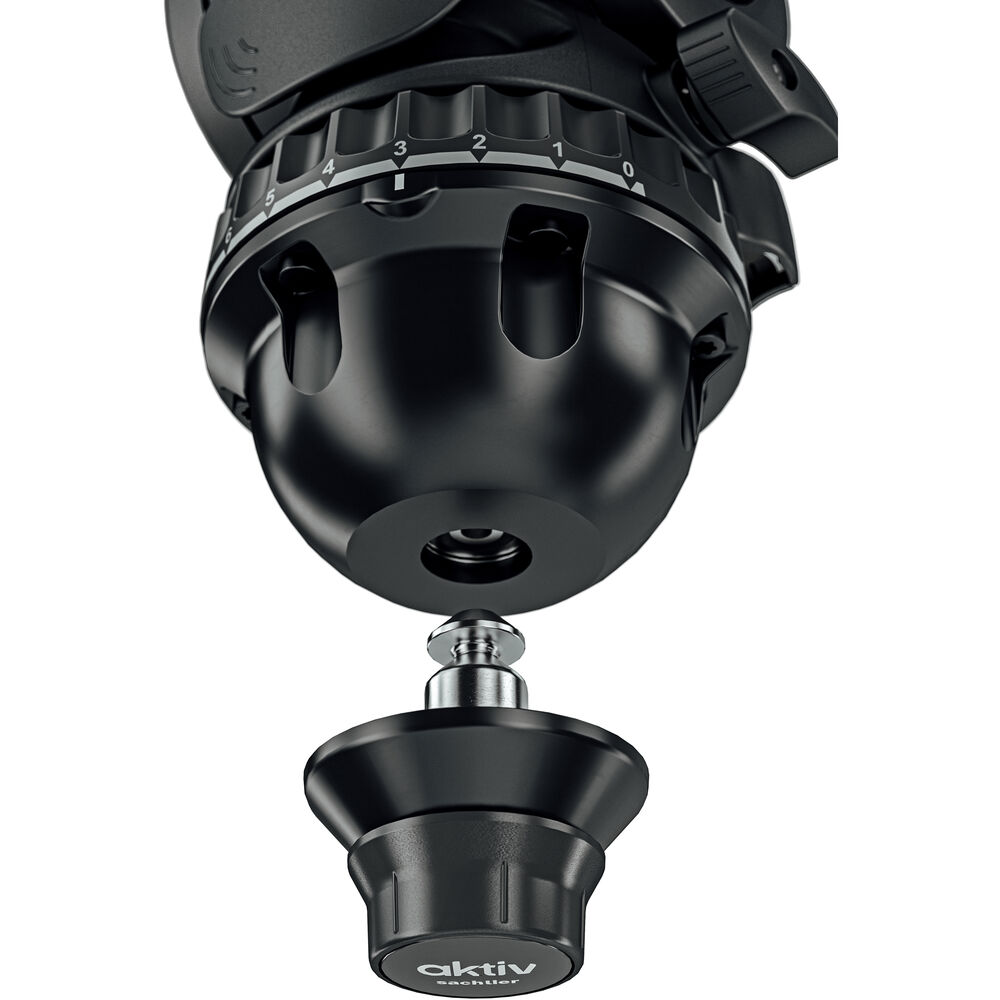

The SpeedLevel technology replaces the traditional head screw and tie-down design with a strong clamp built into the head bowl and a stud component that clamps onto your tripod bowl or other mounting platform, such as a slider. Simply grasp the large lever on the head and pull it up to release the clamp, then press it down to lock your head in place. Partially lifting the lever allows you to quickly and easily level the head.

When used with a separately available flowtech tripod, the aktiv8 enables you to spread the legs flat, getting as low to the ground as your head can without a tie-down knob getting in the way. You can also now mount your head directly onto a slider using a separately available aktiv system stud that screws onto support systems with a 3/8″-16 threaded stud.

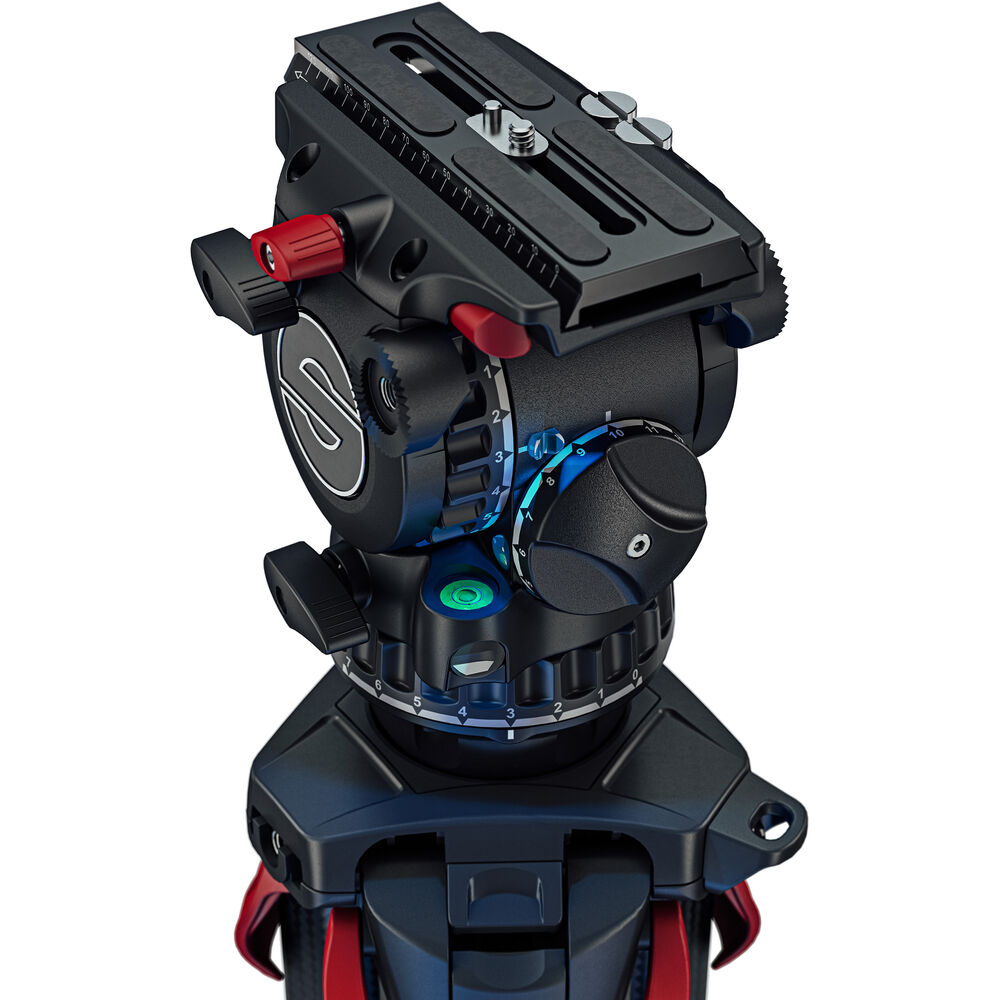

The PrismBubble level system is pressed once to illuminate the bubble level to be illuminated or pressed twice to light up both the bubble level and the drag settings, a boon when working in darker environments. The bubble level also has a built-in prism, enabling you to more easily level the head when the legs are at set at maximum height or an awkward angle.

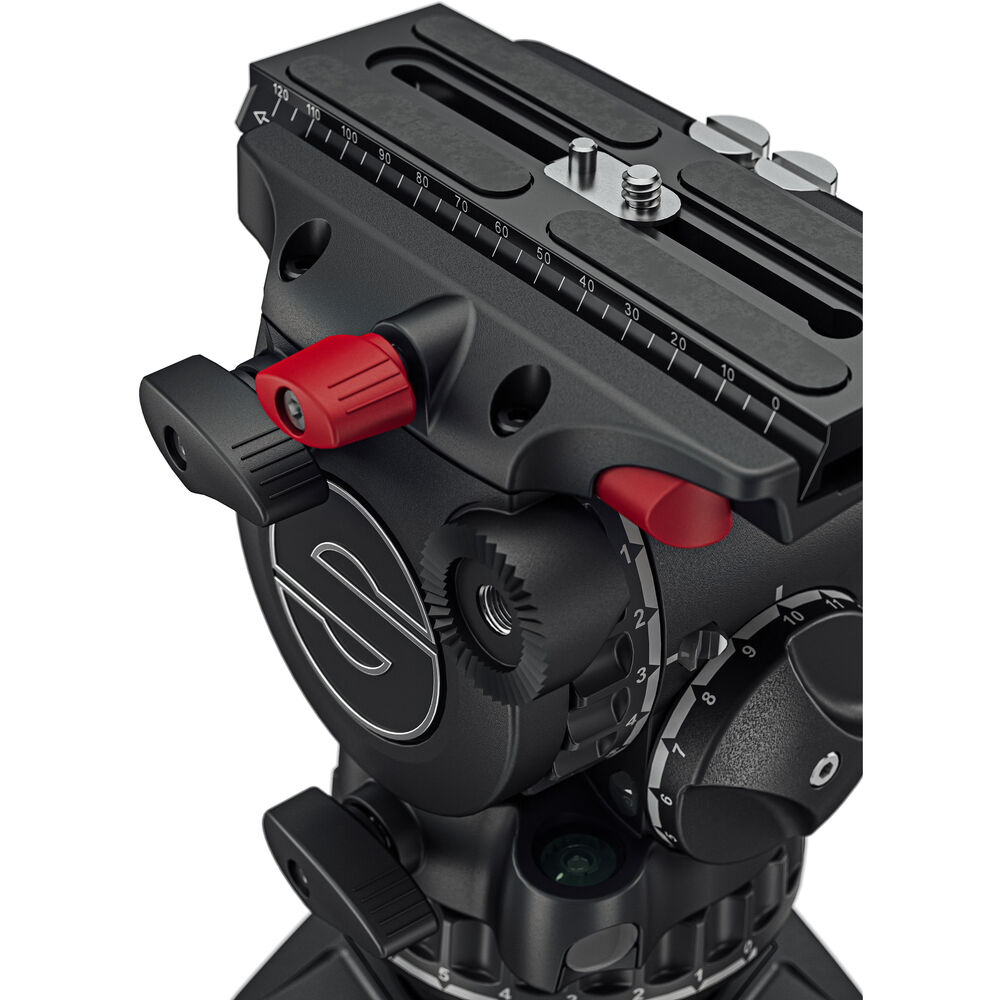

Mount your camera using the included Sideload Plate S that has both a 1/4-20 camera screw and a locating pin to prevent twisting. With a sliding range of 4.7″, this head balances quickly to accommodate variously configured rigs The Sachtler aktiv8 head also features a detachable pan bar that can be mounted onto the rosettes on either the right or left side of the head.

• aktiv8 Sideload Fluid Head
• flowtech75 Tripod
• Mid-Level Spreader, Carry Handle, Bag
• SpeedSwap Clamp-Style Base
• SpeedLevel Technology

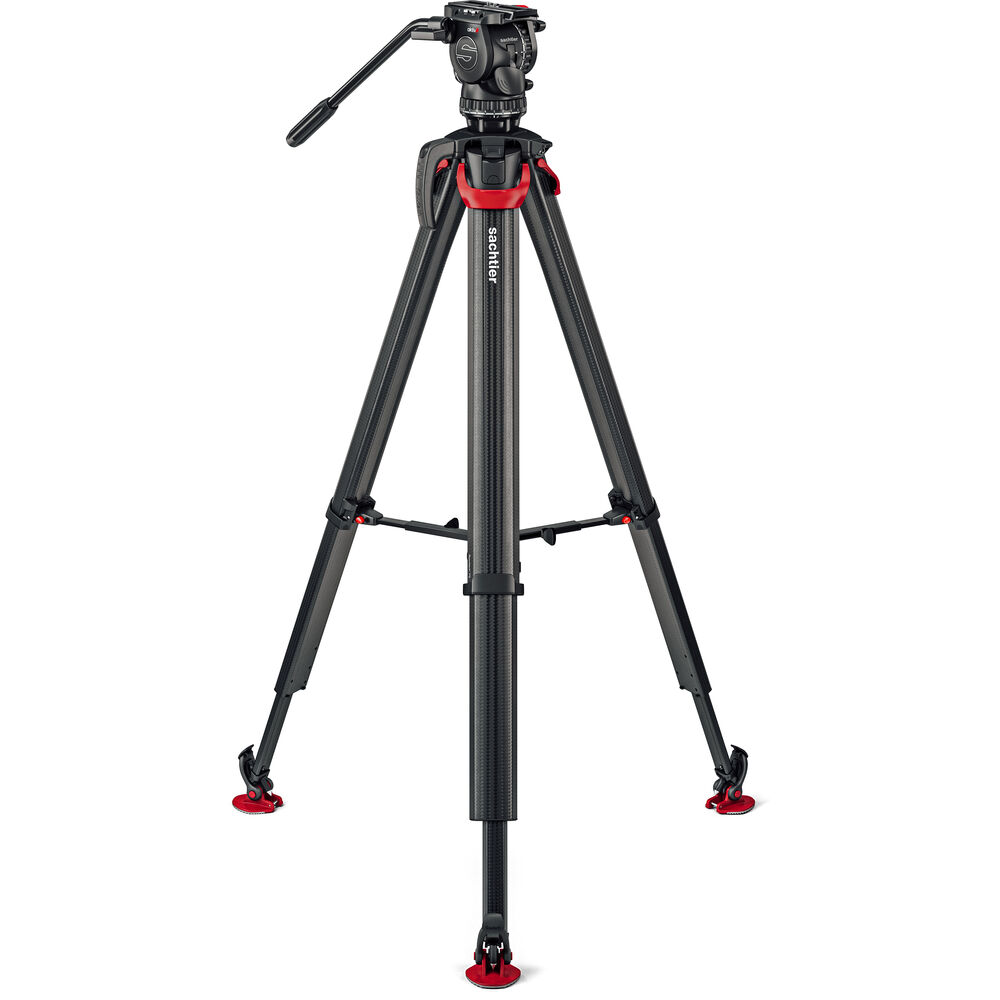

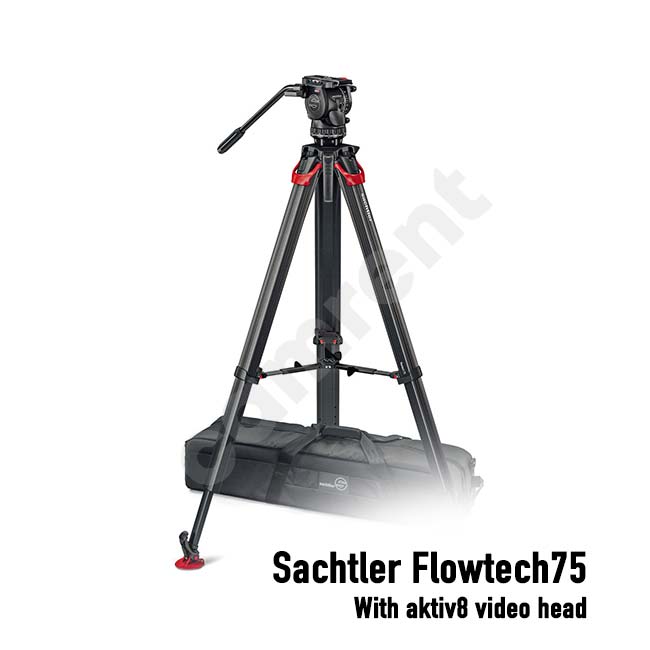

The Sachtler Flowtech 75 MS Carbon Fiber Tripod with Mid-Level Spreader and Rubber Feet eschews the common single or double carbon fiber tube design and instead has redesigned the shape of the legs for improved torsional strength. The legs work weigh just under 7 pounds yet they can support a payload of up to 44 pounds, and extend from a minimum height of 24″ to a maximum height of 61″ when using the included removable mid-level spreader. Each leg features a single clamping lever that locks and unlocks the sections.

Each leg extends or retracts independently from the other two, and when it is detached from the spreader each leg can pivot without affecting the other legs. This is especially useful when working on rough or uneven terrain. You can remove the spreader completely and lock each leg in one of three positions, so you can work without a spreader if you wish. This enables you to spread the legs extremely wide for low shots, while the tripod legs maintain their torsional stability. The dual spikes at the end of each leg provide extra grip when working on softer ground, and you can snap rubber feet onto the dual spikes for better grip when working on hard or delicate surfaces.
