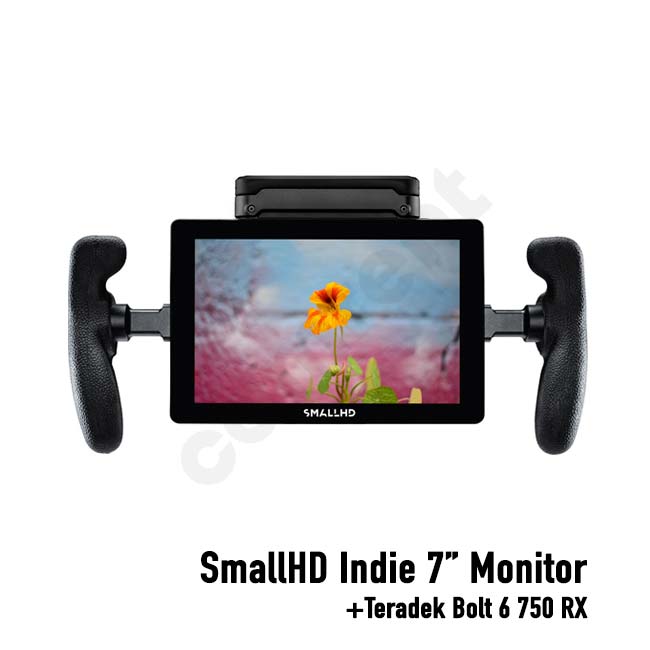

SmallHD 7″ Indie +Teradek BOLT 6 750 RX

Name: SmallHD 7" Indie +Teradek BOLT 6 750 RX
SKU: CAMR_INDIE7BOLT6
Price: 25.00 EUR
Availability: InStock

Kaina: 25,00 €

Komplektacija:
1x Small HD 7″ Indie Monitor
1x Side handles
1x Strap
1x Bolt 6 LT 750 RX module /w External Antennas
Hard case

Suderinamas BOLT 6 TX-RX Teradek BOLT6 TX+RX
Suderinamas BOLT 6 TX Teradek BOLT 6 TX
Rekomenduojamos kompaktiškos baterijos: Anton Bauer Titon Micro 45 Wh V-Mount

Produkto kodas: CAMR_INDIE7BOLT6 Kategorijos: CAMRENT–5, Laidai ir jungtys, Monitoriai Žymos: bolt6, teradek

SmallHD INDIE 7″ Touchscreen On-Camera Monitor

The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7″ IPS LCD with 1920×1200 resolution, 10-bit color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.

The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4″-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.

Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.

Key Features:

7″ 1920×1200 Touchscreen Display
1000 cd/m², 10-Bit, IPS LCD Panel
HDMI & 3G-SDI Inputs & Outputs
Supports Video Input up to UHD 4K30
L-Series Battery Plate, SmallHD PageOS 4
Pixel Zoom, Focus Assist, Peaking Tools
SD Card Slot & Micro-USB Input
3.5mm Headphone Output, 1/4″-20 Threads

Features

Daylight-viewable, 7″ touchscreen on-camera monitor with 1000 cd/m² brightness / Slim, lightweight design with 10-bit, touchscreen IPS LCD panel / HDMI and 3G-SDI inputs and outputs; supports video input up to UHD 4K30 via HDMI / Four 1/4″-20 mounting threads on left, right, bottom, and back of the monitor / SmallHD PageOS 4 has all the features of OS3 to organize and save customized function and settings pages as well as a settings dashboard, page tabs, false color overlays, improved function buttons, pixel zoom, focus assist, peaking, and more / Power using a barrel input or with the included L-series battery plate, or use a separately available Gold mount or V-mount plate / Durable aluminum chassis / Display Tools / Pixel zoom: 2x and 4x with pinch-zoom / Aspect ratios: Preset and customizable

DSLR scale: Canon 5D Mk II and Canon 7D / Custom scale: Underscan only / Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x / Image flip: Auto and manual / Image rotation: Auto and manual / Cross conversion: HDMI to SDI, SDI to HDMI / Color focus assist: Adjustable style and intensity / Peaking: Adjustable intensity / False color: Spectrum, ARRI-style, and customizable / Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting / Vectorscope / RGB parade, customizable / Histogram: Luma and RGB / Image capture, with dedicated button and image gallery
/ Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu / LUT import: Via SD card or USB storage device / Image overlay: Opacity slider and blink setting / Image capture / Audio meters: Up to 8 channels

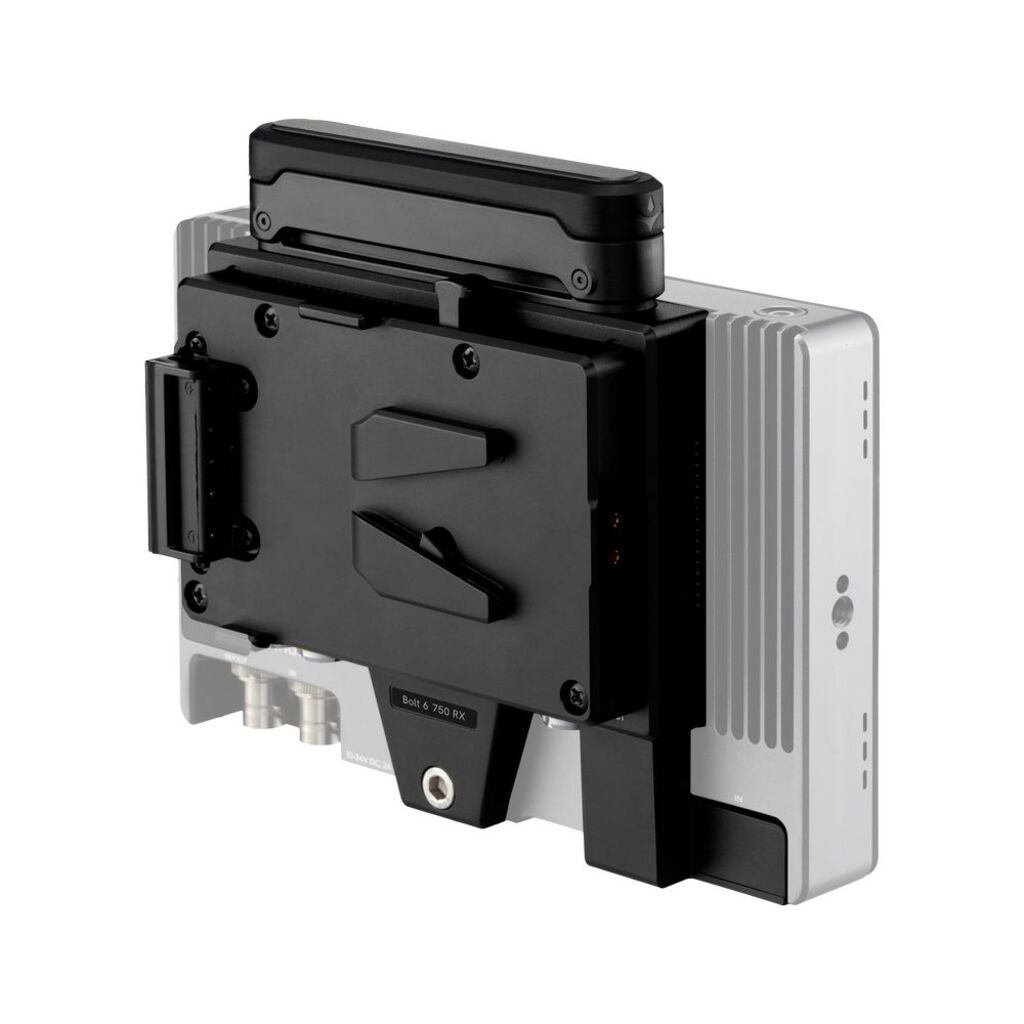

Teradek Bolt 6 RX 750 Monitor Module with Internal Antennas (V-Mount)

Receive lossless HD video from up to 300 m / 750′ line-of-sight with the Bolt 6 RX 750 Monitor Module with Internal Antennas from Teradek. This module mounts onto the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support and outputs video via one HDMI port. It features five internal antennas and includes a battery plate to power the receiver using a professional V-mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

Internal Antennas. Five internal 2 dBi antennas provide this receiver with a rugged, compact design.

Encryption and Timecode. The Bolt 6 RX 750 Monitor Module features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 system also supports the transmission of timecode and start/stop triggers from the camera.

Software and Mobile Apps. The receiver module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

– Supports the new freely available 6 GHz wireless frequency band.

– Cross-compatible with all Bolt 4K and 4K LT series 5 GHz transmitters.

– Mounts on the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor.

– Wirelessly receive up to 4K30 video and output up to 4K30 via HDMI 2.0 port.

– V-mount battery plate included.

– Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut.

– Smaller and lighter chassis design than other Bolt receivers.

– AES-256 encryption and RSA 1024 key pairing support.

– Wireless Android/iOS app via Bluetooth features a spectrum analyzer and remote configuration.

Key Features:

5x 2 dBI Internal Antennas
Supports New 6 GHz Frequency Band
Receives HD Video from up to 300m / 750′ LoS
V-Mount Battery Plate
For SmallHD Cine 7 | 702 Touch | Indie 7
Receives up to 4K30 Video, Zero Delay
Output Video up to 4K30 via HDMI
Compatible with Any Bolt 4K Transmitter
AES-256 Encryption|RSA-1024 Key Exchange
Bluetooth Mobile App, Spectrum Analyzer

Teradek Bolt 6 RX 750 Monitor Module with Internal Antennas (V-Mount)

Inputs/Outputs

Antenna I/O	No
Video I/O	2x HDMI 1.4b Output
Embedded Audio	HDMI: 2-Channel
Audio I/O	No
Power I/O	1x LEMO 2-Pin (18 VDC) Input
Other I/O	2x LEMO 5-Pin 2.0 Output
Encryption	Yes: 256-Bit AES

Wireless

Wireless Range	750′ / 228.6 m (Line-of-Sight)
# of Channels	24
Frequency Range	DFS Frequencies US: 5.27 to 5.67 GHz Non-DFS Frequencies US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz US: 5.94 to 6.42 GHz
Latency	0 ms
RF Power	22 dBm
Wi-Fi	Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.0
Mobile App Compatible	Yes: Android & iOS App Name: Bolt App
Cellular Support	No

Format Support

Video Format	HDMI/Wireless UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Audio Format	2-Channel 24-Bit 48 kHz
Wireless Video Compression	Uncompressed
Timecode Support	Yes

Power

Input Power	6 to 18 VDC
Battery	1x V-Mount on Fixed Plate
Power Consumption	7 W

Mounting

Tripod/Accessory Mounting

1x 1/4″-20 Female
1x 3/8″-16 Female

General

Environmental Resistance	No
Operating Conditions	32 to 72°F / 0 to 40°C
Material of Construction	Aluminum, Plastic
Dimensions	4.8 x 3.7 x 1.1″ / 122 x 94 x 27 mm
Weight	10.30 oz / 292.00 g
