OSEE 22″ Production Monitor

Name: OSEE 22" Production Monitor
SKU: REE_OSEE22MONITOR
Price: 35.00 EUR
Availability: InStock

Kaina: 35,00 €

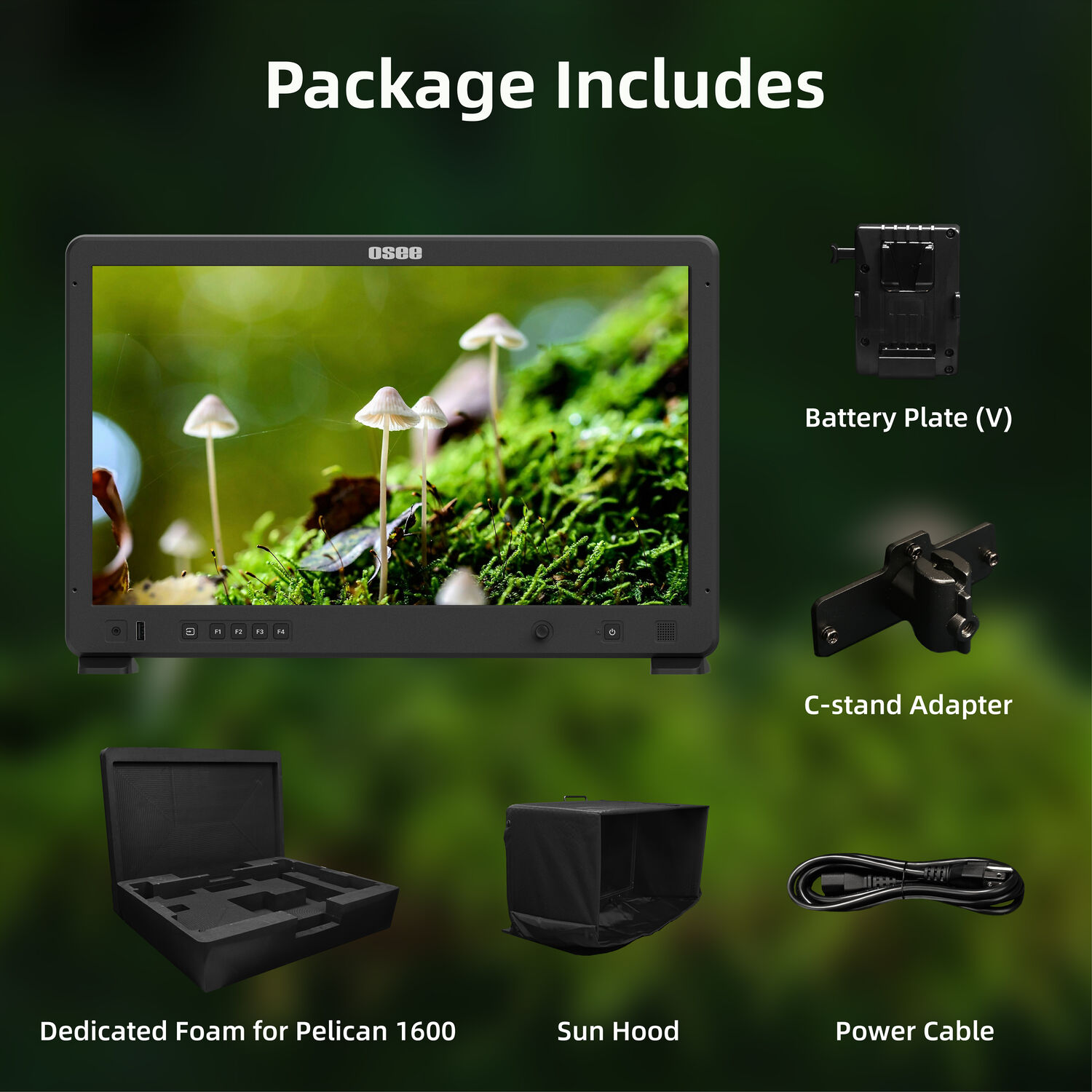

Komplektacija:
OSEE 22″ Mega 22S Production Monitor with V-Mount Kit
Sun Hood
V-Mount Battery Plate
C-Stand Adapter
Cheese Plate
Power Adapter from 220V
HDMI cable
Hard Case Pelican Style with Custom Foam

Produkto kodas: REE_OSEE22MONITOR Kategorija: Monitoriai

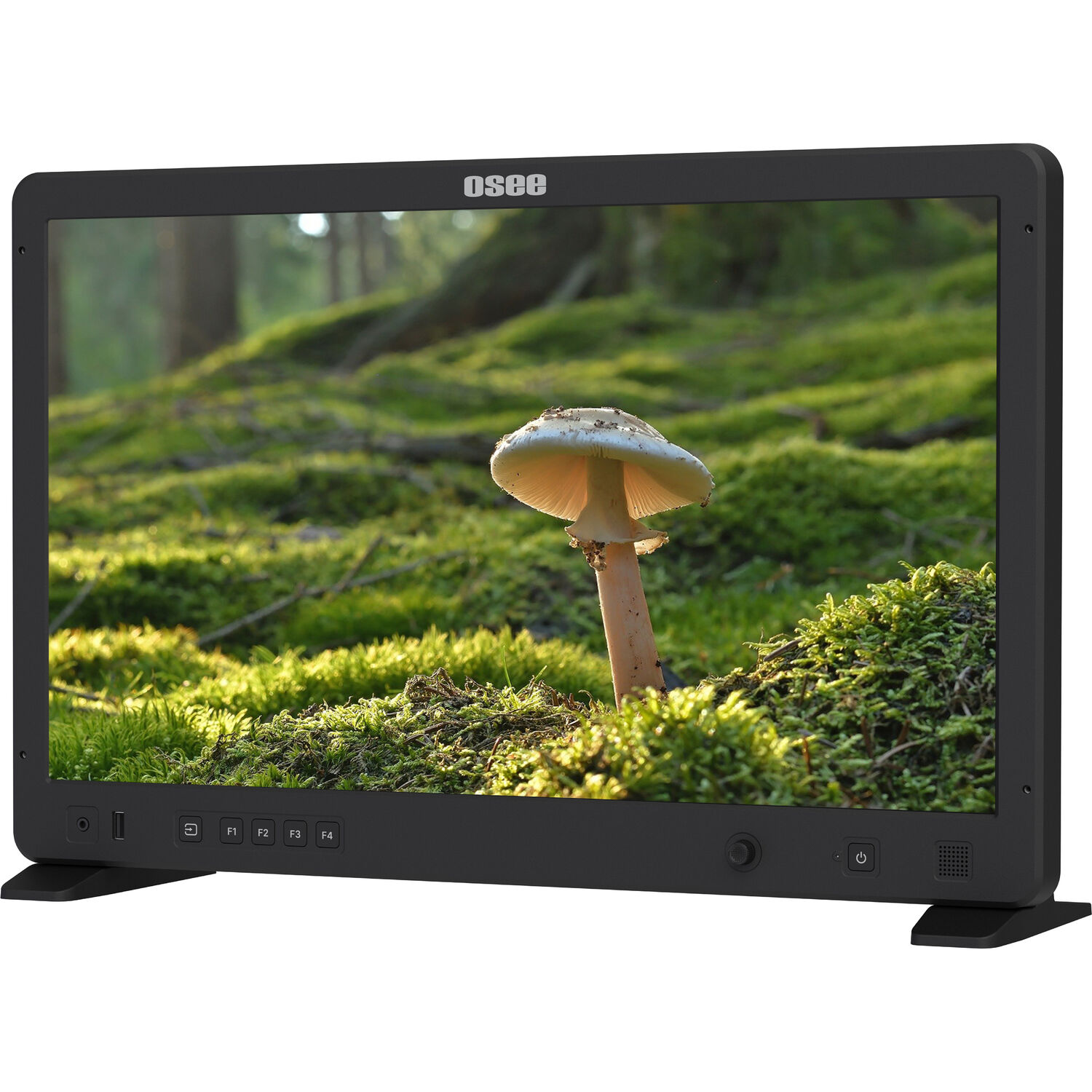

OSEE 22″ Mega 22S Production Monitor with V-Mount Kit

The OSEE 21.5″ Mega 22S Production Monitor with V-Mount Plate Kit is a bright, 1500 cd/m² monitor featuring an IPS panel with 10-bit color, 3D LUT application, and HLG/PQ HDR for crisp, clear imaging for video resolutions up to DCI 4K30. A slew of monitoring tools includes focus peaking, histogram, waveform, false color, zebra, and aspect ratio options. The Mega 22S also supports anamorphic de-squeeze, plus timecode and audio metering for SDI. The monitor includes a V-mount battery plate, sun hood, C-stand mount, and desktop feet.

Key Features:

10-Bit IPS LED Panel
Hight 1500 cd/m² Brightness
Built-In and Custom Load 3D LUTs
HDMI Input, 3G-SDI Inputs and Outputs
Timecode and Audio Metering on SDI
Exposure, Framing, and Focus Tools
Sun Hood, VESA Patterns
Upgrade and USB-A LUT Input Port
C-Stand Adapter, Desktop Feet
Includes V-Mount Battery Plate

High-Bright Display. With a high 1500 cd/m² brightness level, this OSEE monitor is daylight viewable and includes a sun hood for blocking extraneous light when desired.

IPS LED Panel. The 10-bit color IPS LED panel produces greater depth, enabling you to display your images with precisely the tones you’ve created.

Multiple Video Inputs/Outputs

One HDMI input supports up to DCI 4K30.
Two 3G-SDI inputs and outputs support up to 2K50 and 1080p60.

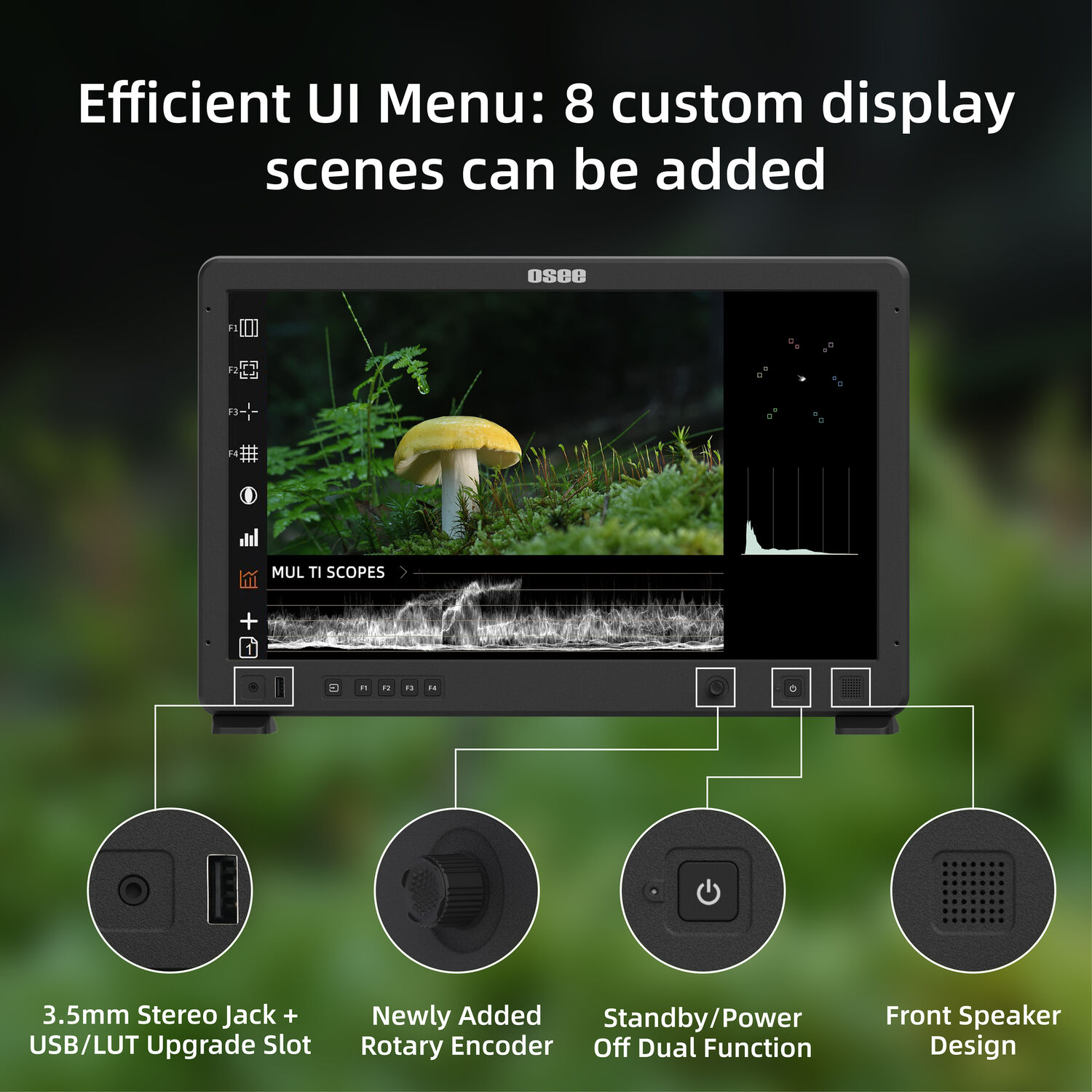

Imaging Tools

Focus Assist, Focus Peaking
False Color, Zebra
Histogram, Vectorscope
Waveform, Anamorphic De-Squeeze
Custom Aspect Ratios
Frame and Center Markers
Crosshatching

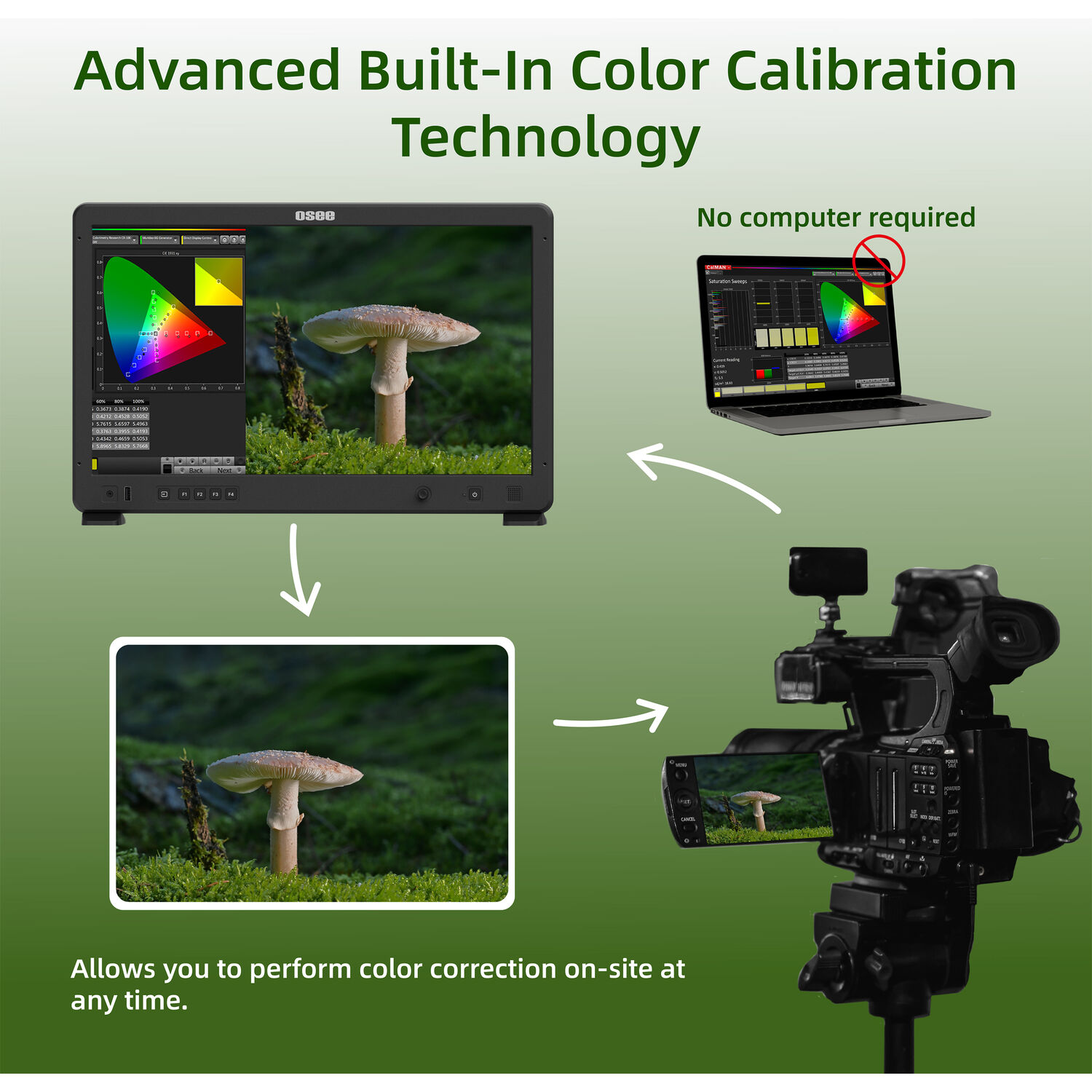

Built-In and Custom 3D LUT Support. The Mega 22S monitor can not only store up to 10 custom LUTs, but it also provides multiple logs, including ones for ARRI, Blackmagic Design, Canon, FUJIFILM, Panasonic, and Sony cameras.

Versatile Power Options. Power this 21.5″ monitor using the included plate and a V-mount battery, via the 4-pin XLR power input, or via AC power.

SDI Audio and Timecode. Monitor your embedded audio and use timecode on the SDI video ports.

OSEE Mega 22S Specs

Display

Panel Type	LCD
Display Size	21.5″ / 54.6 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 178° Vertical: 178°
Touchscreen	No
Maximum Brightness	1500 nits / cd/m²
Contrast Ratio	1100:1
Color Support	1.07 Billion Colors
HDR Support	Yes
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Vectorscope, Waveform

Inputs/Outputs

Video I/O	2x BNC (3G-SDI) Input 2x BNC (3G-SDI) Output 1x HDMI 1.4 Input
Embedded Audio	SDI
Audio I/O	1x 1/8″ / 3.5 mm Headphone Output 1x 1/8″ / 3.5 mm Line Input
Built-In Speaker	Mono
Power I/O	1x XLR 4-Pin (17 VDC) Input 1x IEC Input
Other I/O	1x USB-C 1x USB-A (Firmware/LUT Upload)
Media/Memory Card Slot	No

Wireless

Wireless	No
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

HDMI
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/25/24/23.98
DCI 2K: 50/25/24/23.98
DCI 2K PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
SDI
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2K PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
720p: 60/59.94/50

Power

Input Power	11 to 17 VDC at 3 A 100 to 240 VAC, 50 / 60 Hz
Battery	1x V-Mount on Included, Interchangeable Plate
Power Consumption	45.4 W (Typical) 50.7 W (Maximum)

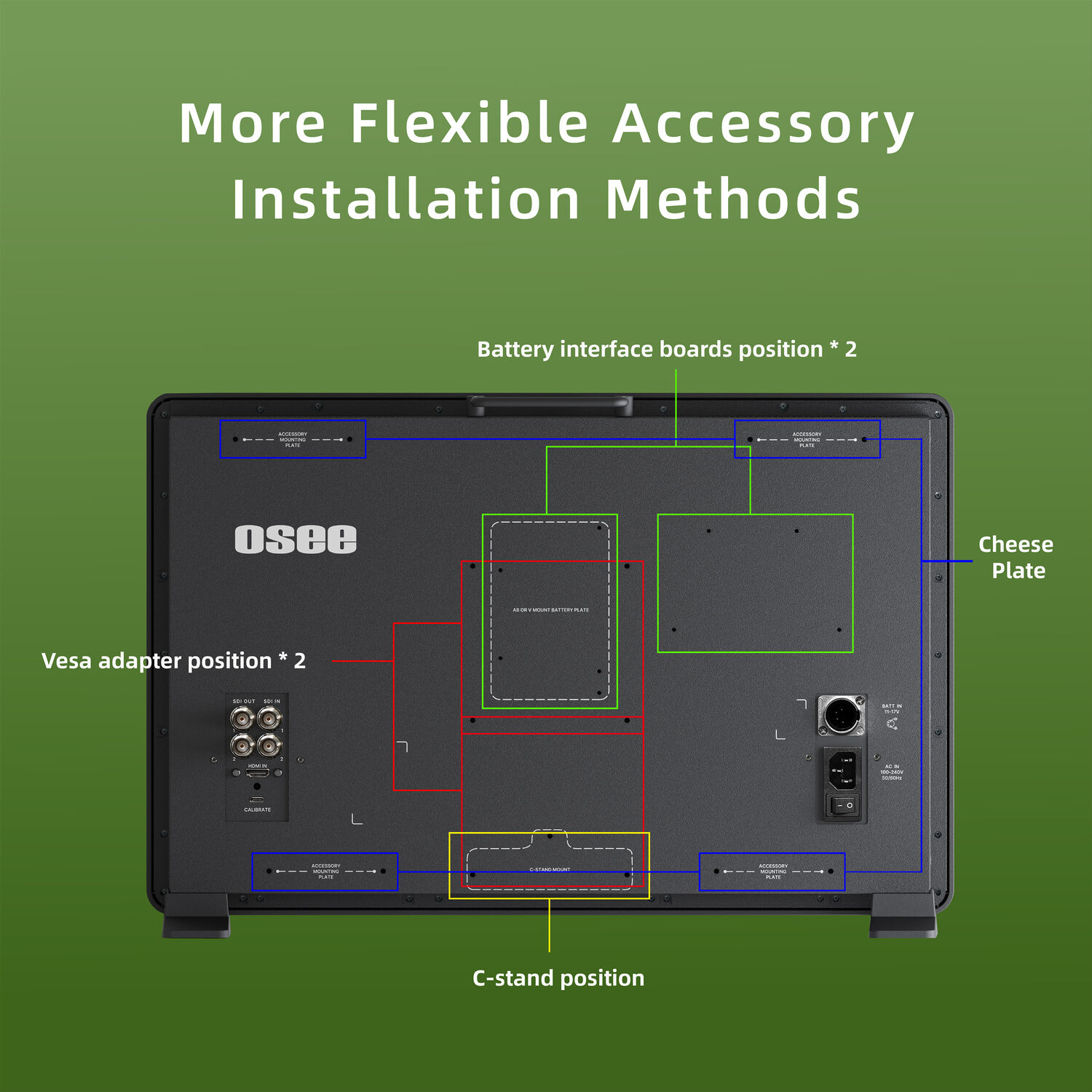

Mounting

VESA Mounting-Hole Pattern	100 x 100 mm
Tripod/Accessory Mounting	Bottom 24x Anti-Twist 1/4″-20 Female 4x Anti-Twist 3/8″-16 Female Left/Right 12x Anti-Twist 1/4″-20 Female 2x Anti-Twist 3/8″-16 Female Back 1x 5/8″ Receiver
