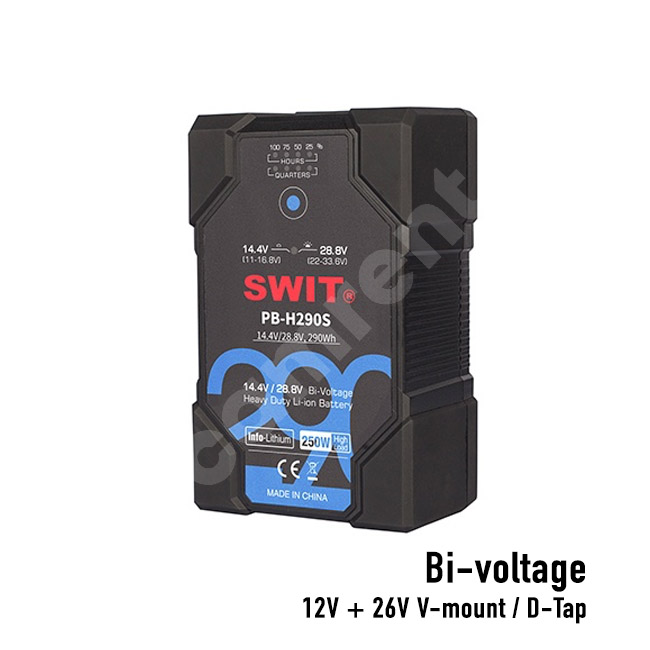

SWIT 290Wh Bi-voltage V-mount

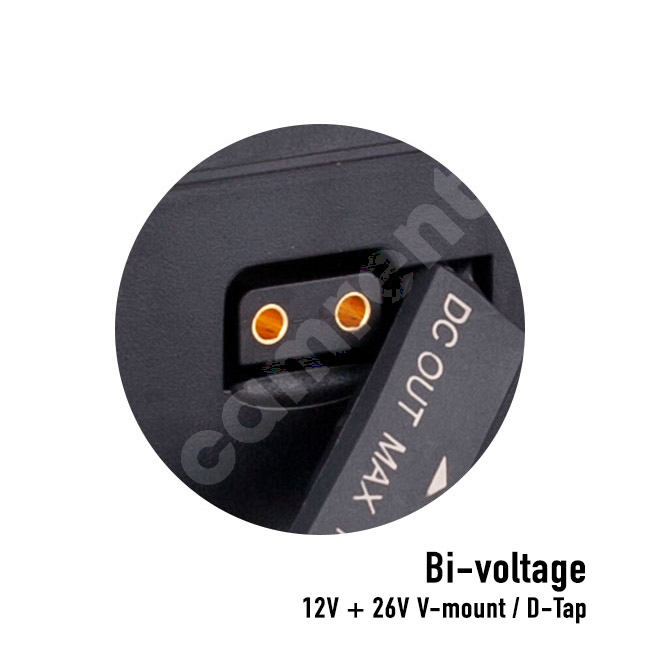

D-tap Socket

A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipment together.
Under 14.4V (11-16.8V) output mode, D-tap output 11-16.8V and Max load 120W/10A;
Under 28.8V (22-33.6V) output mode, D-tap output constant 16V and Max load 50W/3A;

Digital Power Indicator

8-LED remaining time read

When battery is discharging:
Press „Power Check” button, Upper 4 LEDs display remaining working hours, and Lower 4 LEDs display remaining working minutes, under current output power. The LED will flash when remaining time is less than 15 minutes to remind changing battery.
When battery is charging:
Upper 4 LEDs flashing constantly, indicates the real-time capacity percentage 25%, 50%, 75% and 100%.
When battery is free:
Press „Power Check” button, Upper 4 LEDs light up, to indicate the remaining capacity percentage 25%, 50%, 75% and 100%.

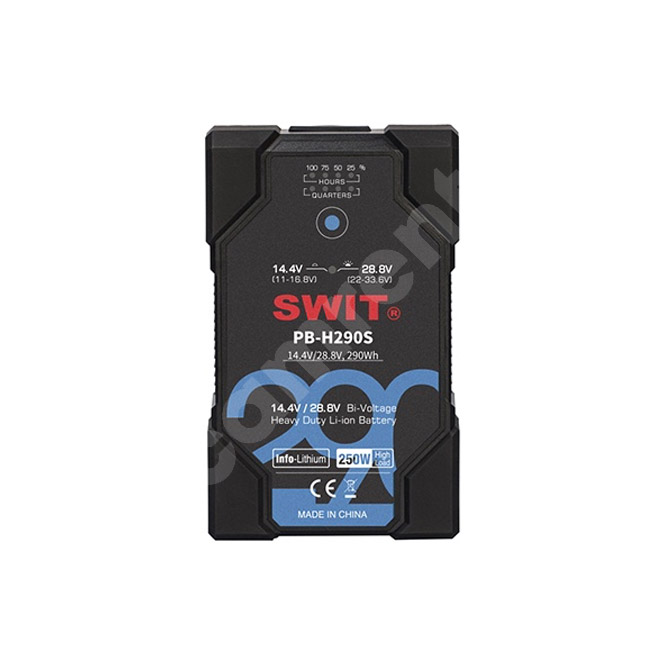

14.4V/28.8V Bi-Voltage

The great solution to power ARRI Alexa LF/65 high voltage cameras: SWIT Intelligent Bi-voltage Battery, which can output both 11-16.8V normal voltage and 22-33.6V high voltage, with auto recognition and switching by the dedicated V-mount plate, compatible with Alexa LF/65 and all other normal cameras and devices, with no risk of misusing.

Strong 1.5m Drop-off Proof

Dual housing + Rubber cover

PB-H290S has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off.

14.4V/28.8V Auto Switching

By “Magic Sticker” on normal V-plates

Beside ALEXA cameras, many Cine Lights are also designed high voltage input, to reduce current ef- fectively, and protect power pins and ensure the reliability.
You can easily put on a “Magic Sticker” on the par- ticular position of all standard V-mount plates, then PB-H290S battery can recognize and auto switch on 22-33.6V output mode.



[/col] [/row]

Svoris	750 g
