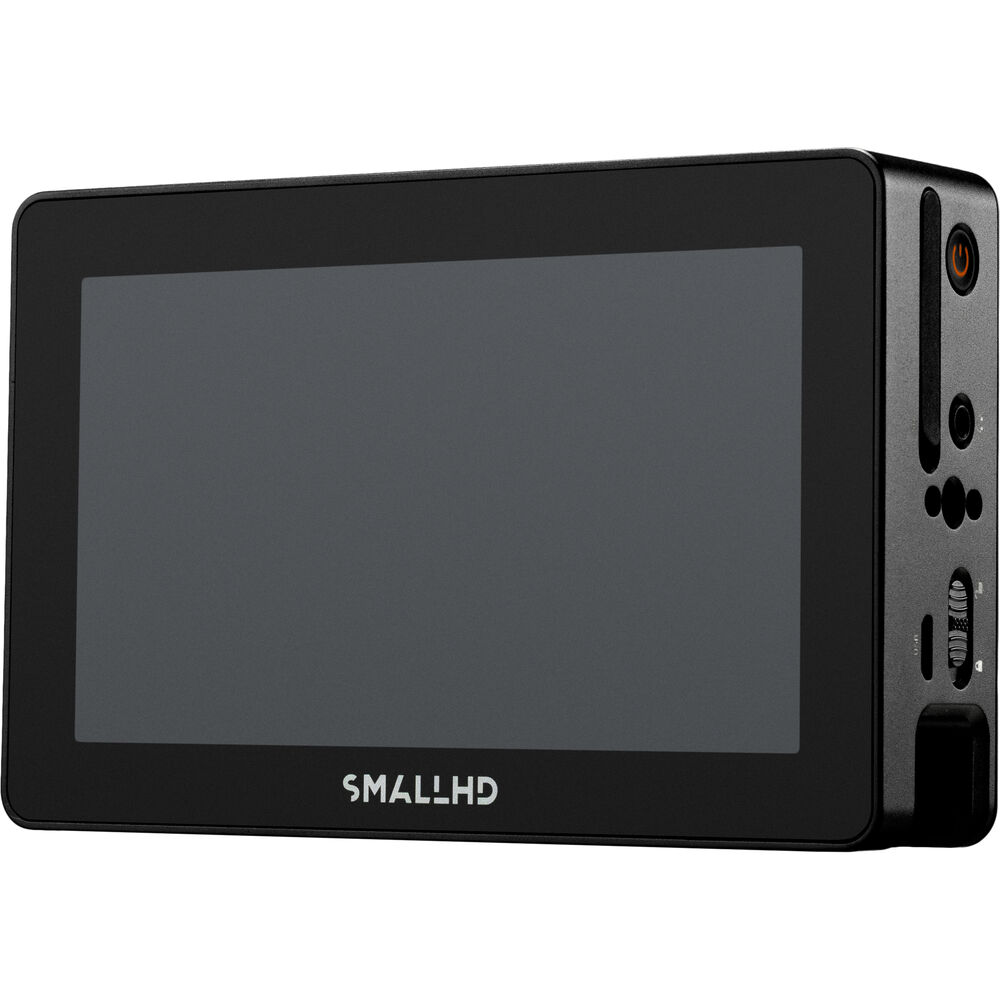

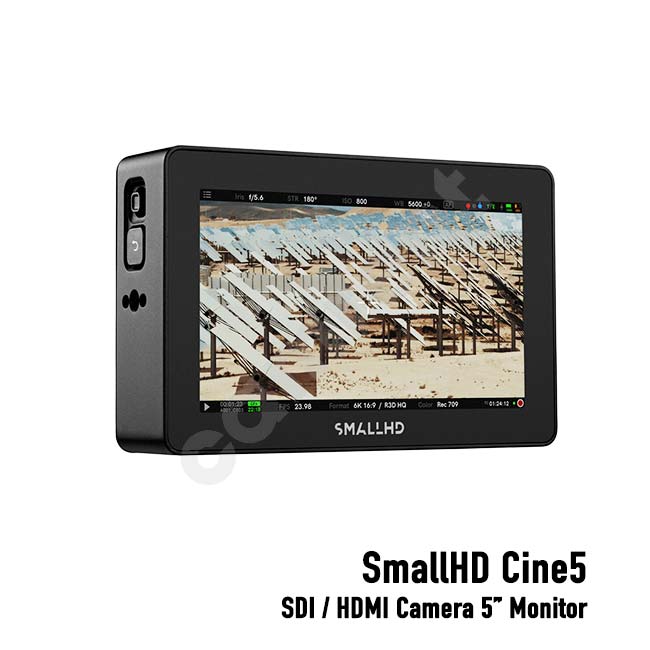

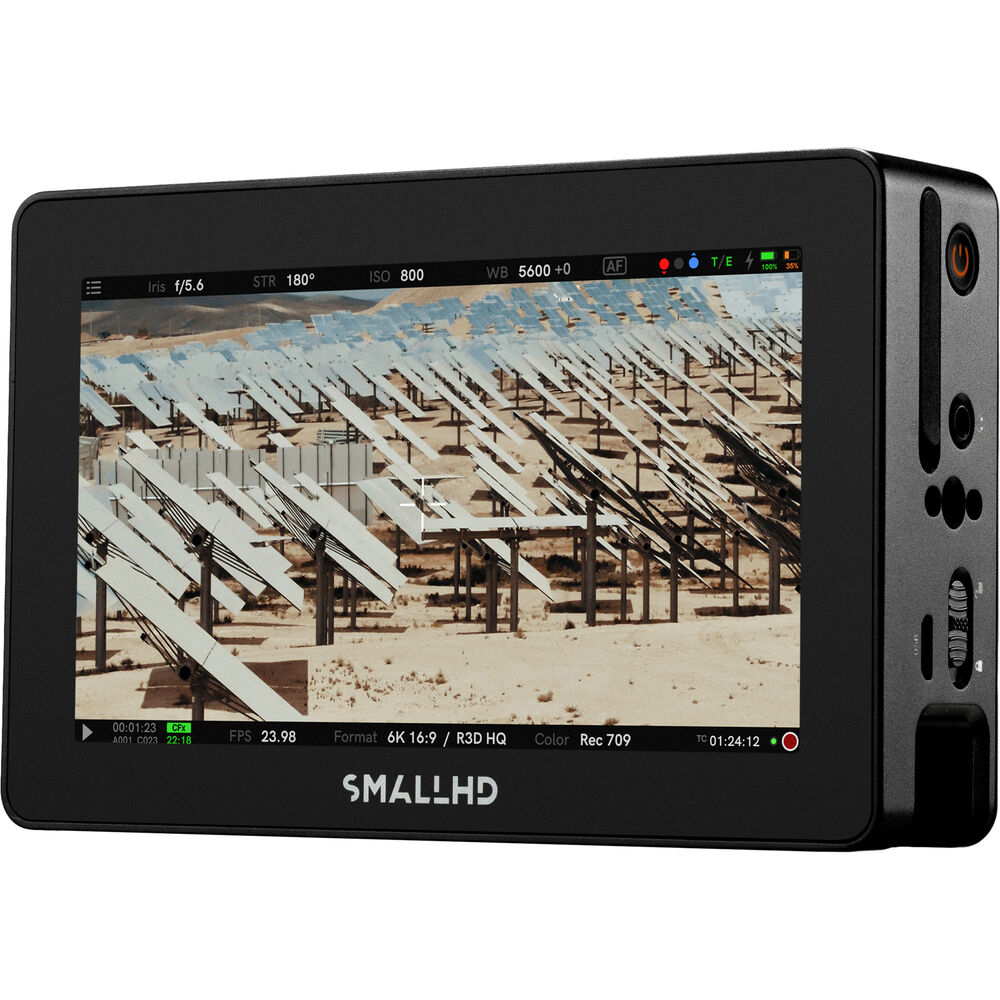

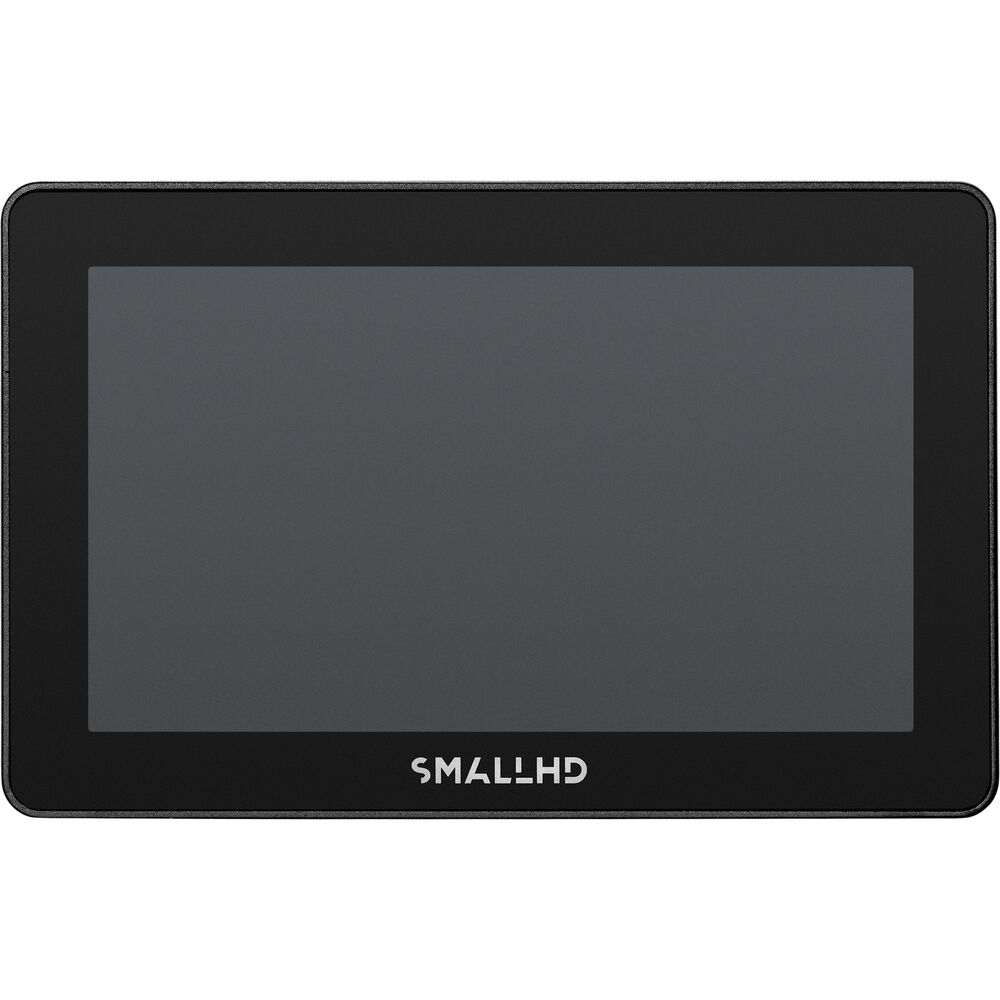

SmallHD Cine 5″ Monitor

Name: SmallHD Cine 5" Monitor
SKU: REE_SMALLHDCINE5
Price: 25.00 EUR
Availability: InStock

Kaina: 25,00 €

Komplektacija:
SmallHD 5″ Cine Monitor
SunHood
D-Tap to LEMO adapter
SDI cable
HDMI Cable
220V adapter

SmallHD didesnis SmallHD 7″ Indie
Suderinamas BOLT 6 TX-RX Teradek BOLT6 TX+RX
Suderinamas BOLT 6 TX Teradek BOLT 6 TX
Rekomenduojamos kompaktiškos baterijos: Anton Bauer Titon Micro 90 Wh V-Mount

Produkto kodas: REE_SMALLHDCINE5 Kategorijos: CAMRENT–5, Monitoriai Žyma: smallhd

SmallHD CINE 5 Touchscreen On-Camera Monitor

Monitor your camera with the CINE 5 Touchscreen On-Camera Monitor from SmallHD. Featuring a sharp 5″ display suitable for indoor or outdoor use, the CINE 5 monitor supports various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.

Key Features:

5″ 1920 x 1080 Touchscreen Display
2000 cd/m², 10-Bit LCD Panel, DCI P3
2-Pin Locking Power Input
5-Pin Locking USB for RED Camera Control

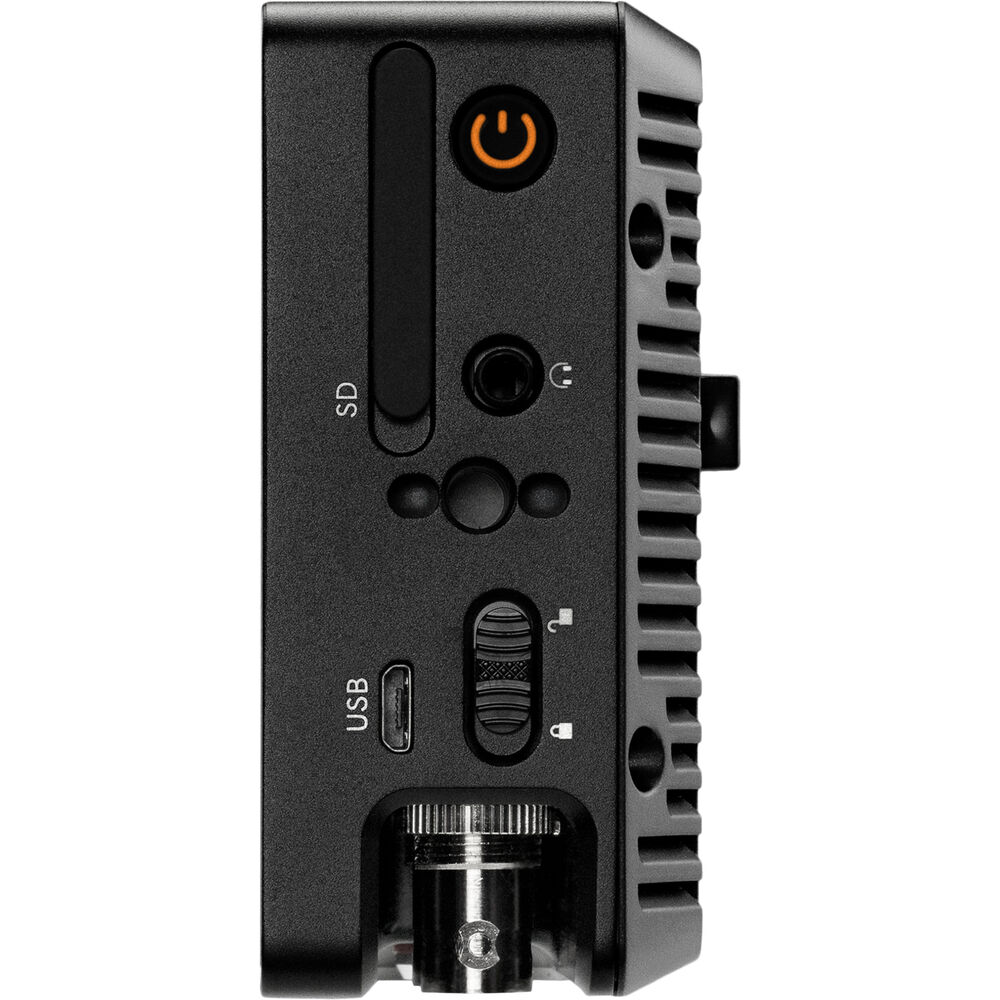

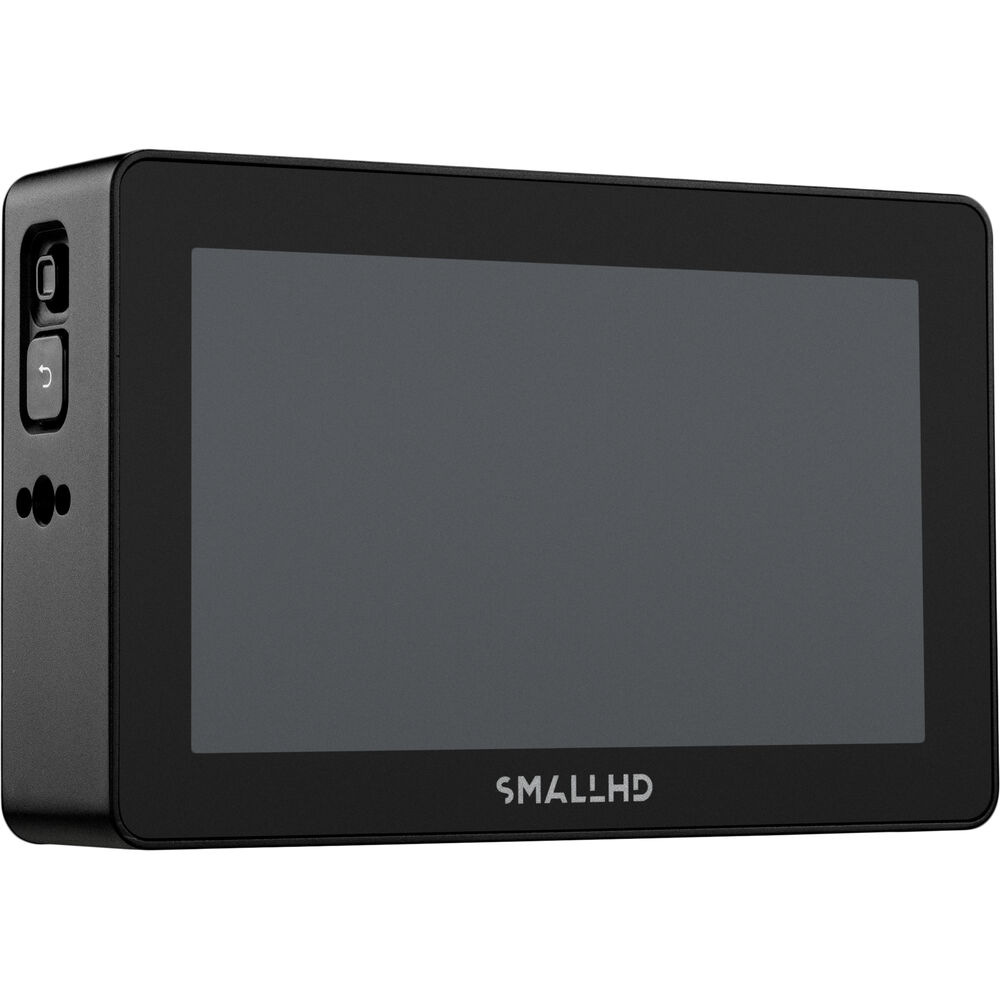

Side-Mounted Joystick, Back Button
1 x HDMI Input, 1 x HDMI Output
1 x 3G-SDI Input, 1 x 3G-SDI Output
Waveform / RGB Parade / Vectorscope

The CINE 5 features a bright 2000 cd/m², 1920 x 1080 LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 5, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap, and the CINE 5 also adds a joystick on the side and a button on the back for ease of use. There is a 5-pin USB output to utilize optional RED camera control. The monitor can be powered using its 2-pin power input.

Slim, lightweight, daylight-viewable, 5″ touchscreen on-camera monitor with 2000 cd/m² brightness.

HDMI-to-SDI and SDI-to-HDMI cross conversion is supported.

Supports 10-bit 4:2:2 DCI-P3 color

The included PageOS 5 Toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), Advanced Teradek RT Overlays, and more. The PageOS 5 UI offers quick and repeatable setups and full control over all parameters and display tools.

Power via 2-pin power input.

Four 1/4″-20 mounting points on top, left, right, and back.

Optional RED camera control.

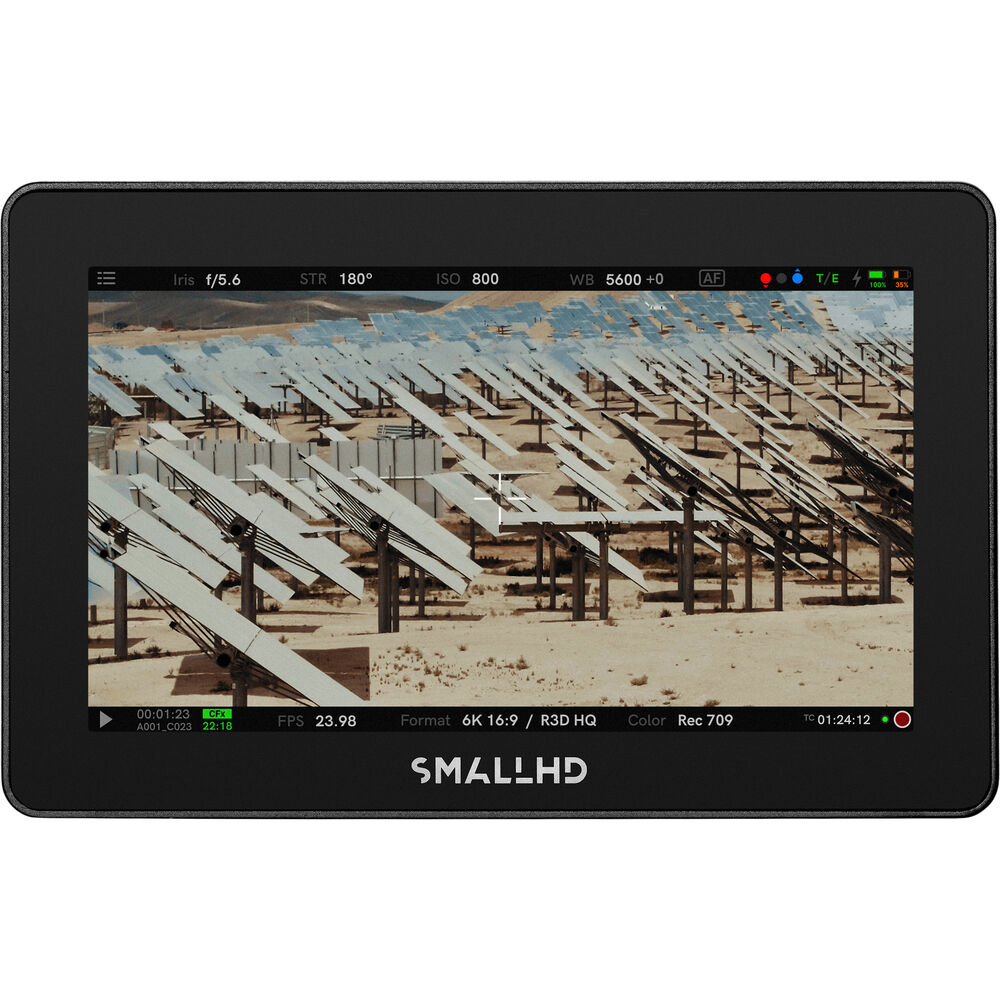

RED Control Features

Run/stop

Color controls

Exposure controls

Status

Color temperature

Video format

Playback

Shutter

Menu control

Software Features

Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch-zoom

DSLR scale: Canon 5D Mk II and Canon 7D

Custom scale: Underscan only

Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x

Image flip: Auto and manual

Image rotation: Auto and manual

Color focus assist: Adjustable style and intensity

Peaking: Adjustable intensity

False color: Spectrum, ARRI-style, and customizable

Dual zebra: Customizable

Waveform: Luma and RGB, customizable with region of interest highlighting

Vectorscope: Yes

RGB parade: Customizable

Histogram: Luma and RGB

Image capture: With dedicated button and image gallery

Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu

Image overlay: Opacity slider and blink setting

Audio meters: HDMI and SDI up to eight channels

SmallHD CINE 5 Specs

Display

Panel Type	LCD
Display Size	5.0″ / 12.7 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Touchscreen	Yes
Maximum Brightness	2000 nits / cd/m²
Contrast Ratio	1000:1
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	No
Color Gamut	100% DCI-P3
Image Controls	Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra

Inputs/Outputs

Video I/O	1x HDMI 2.0 Input 1x HDMI 2.0 Loop Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI: 8-Channel SDI: 8-Channel
Audio I/O	1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x LEMO 2-Pin (34 VDC) Input
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC [LUT/Firmware Update Only]

Wireless

Wireless	No
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p: 200/100/50
480p: 240/239.76/120/119.88/100/60/59.94
480i: 60/59.94
576i: 50
SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i: 50
480i: 59.94

Video Signal Conversion

SDI to HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 240/239.76
HDMI to SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100
720p: 60/59.94/50/30/29.97/25/24/23.98
480i: 59.94
576i: 50

Power

Battery

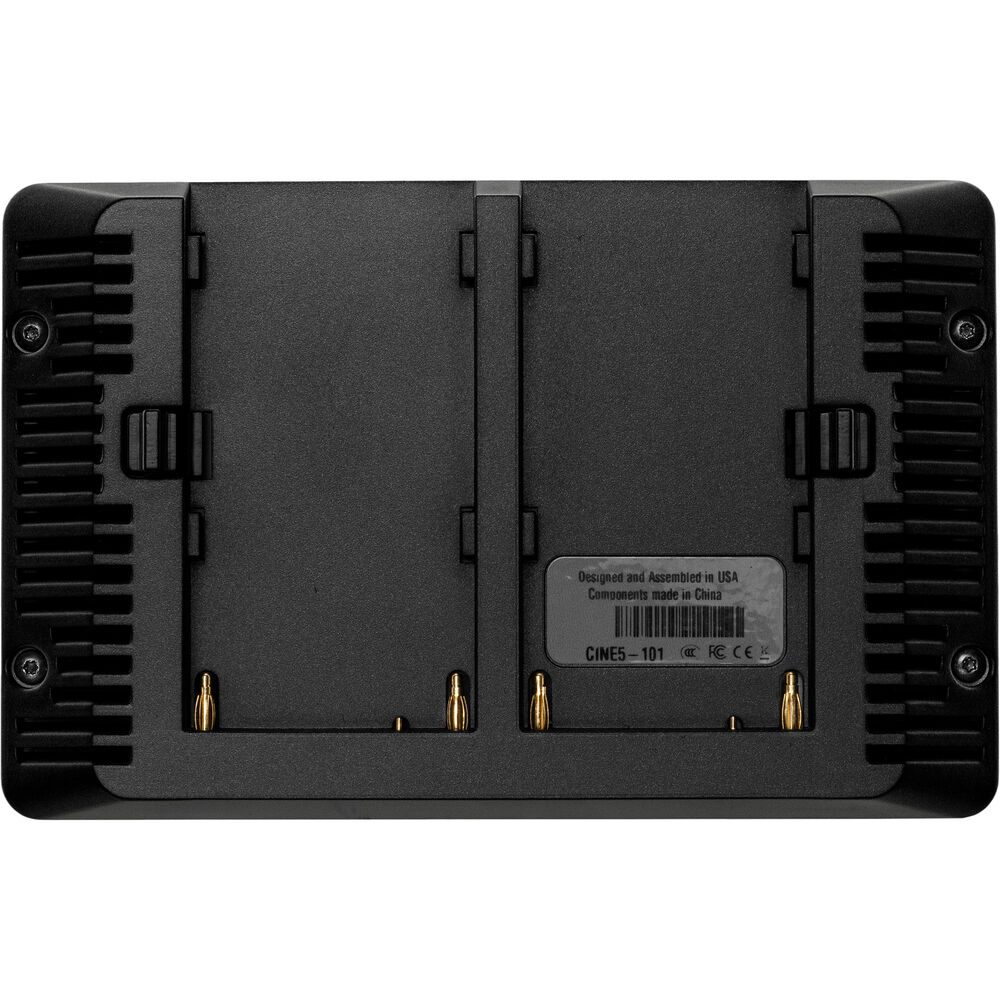

2x L-Series Mount on Fixed Plate

Mounting

Tripod/Accessory Mounting

6x Anti-Twist 1/4″-20 Female
4x M3 Female
