NAUJA

SmallHD 7″ Indie Monitor

Name: SmallHD 7" Indie Monitor
SKU: REE_SMALLHDINDIE7
Price: 25.00 EUR
Availability: InStock

Kaina: 25,00 €

Komplektacija:
1x Small HD 7″ Indie Monitor

Suderinamas BOLT 6 TX-RX Teradek BOLT6 TX+RX
Suderinamas BOLT 6 TX Teradek BOLT 6 TX
Rekomenduojamos kompaktiškos baterijos: Anton Bauer Titon Micro 90 Wh V-Mount

Produkto kodas: REE_SMALLHDINDIE7 Kategorijos: Monitoriai, CAMRENT–5 Žyma: smallhd

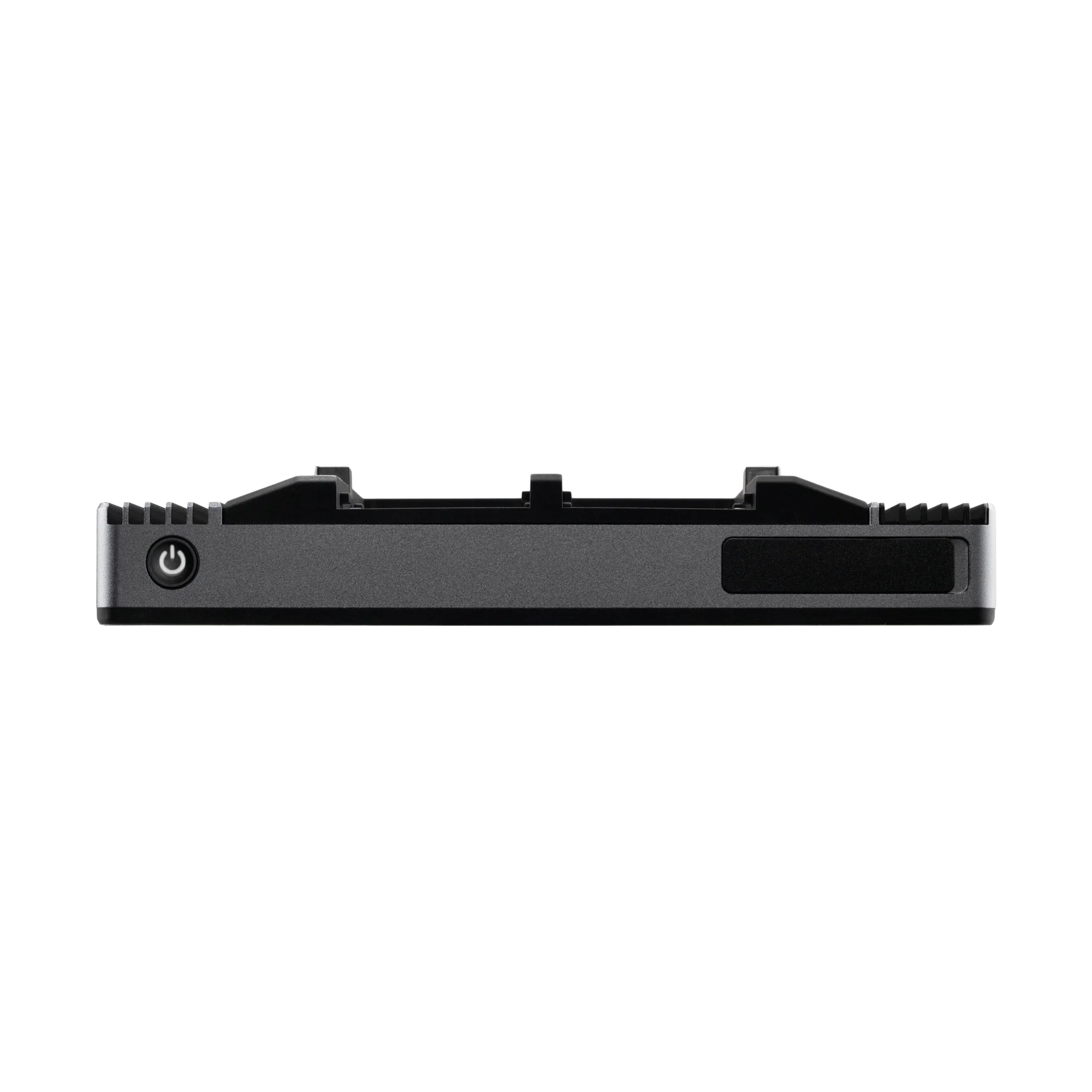

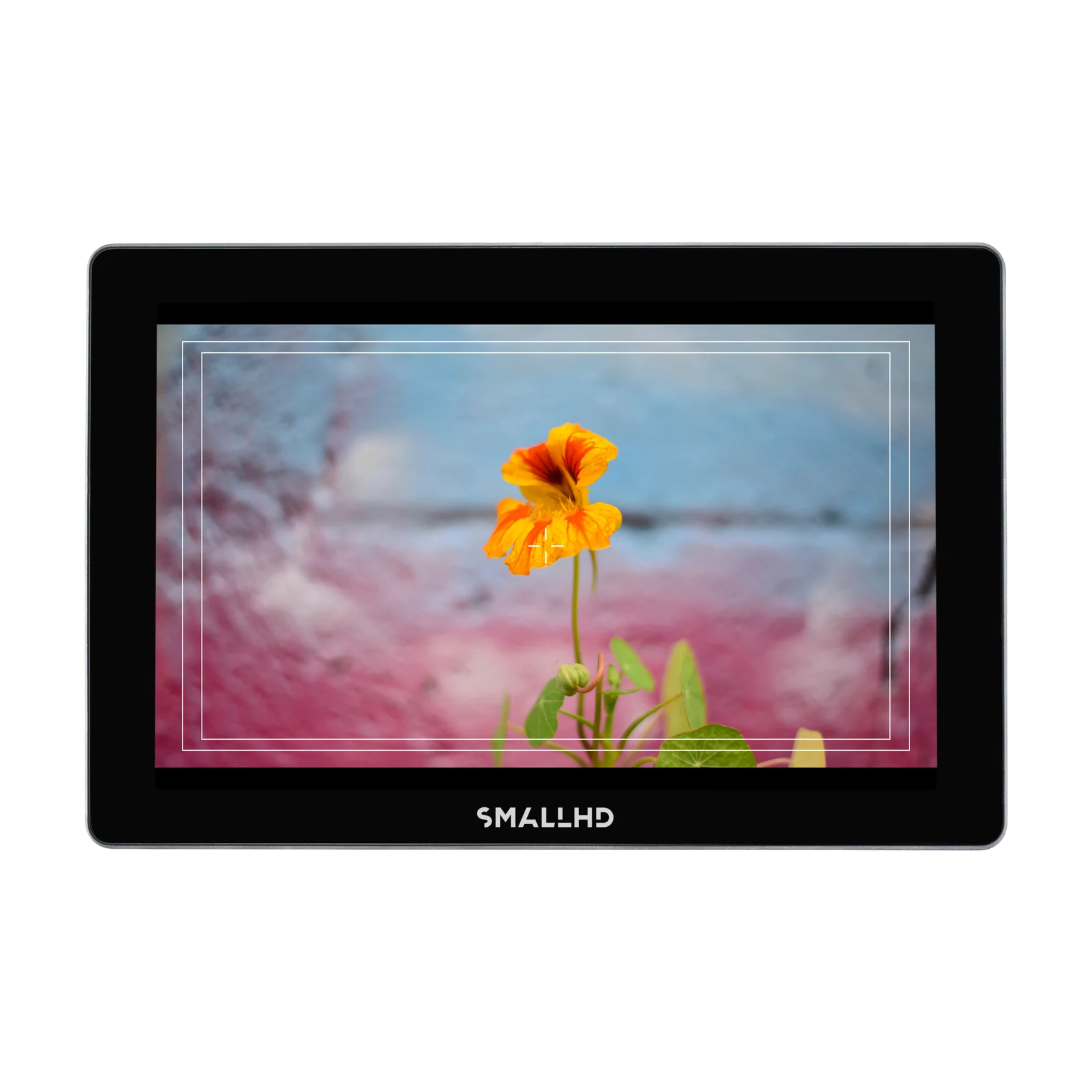

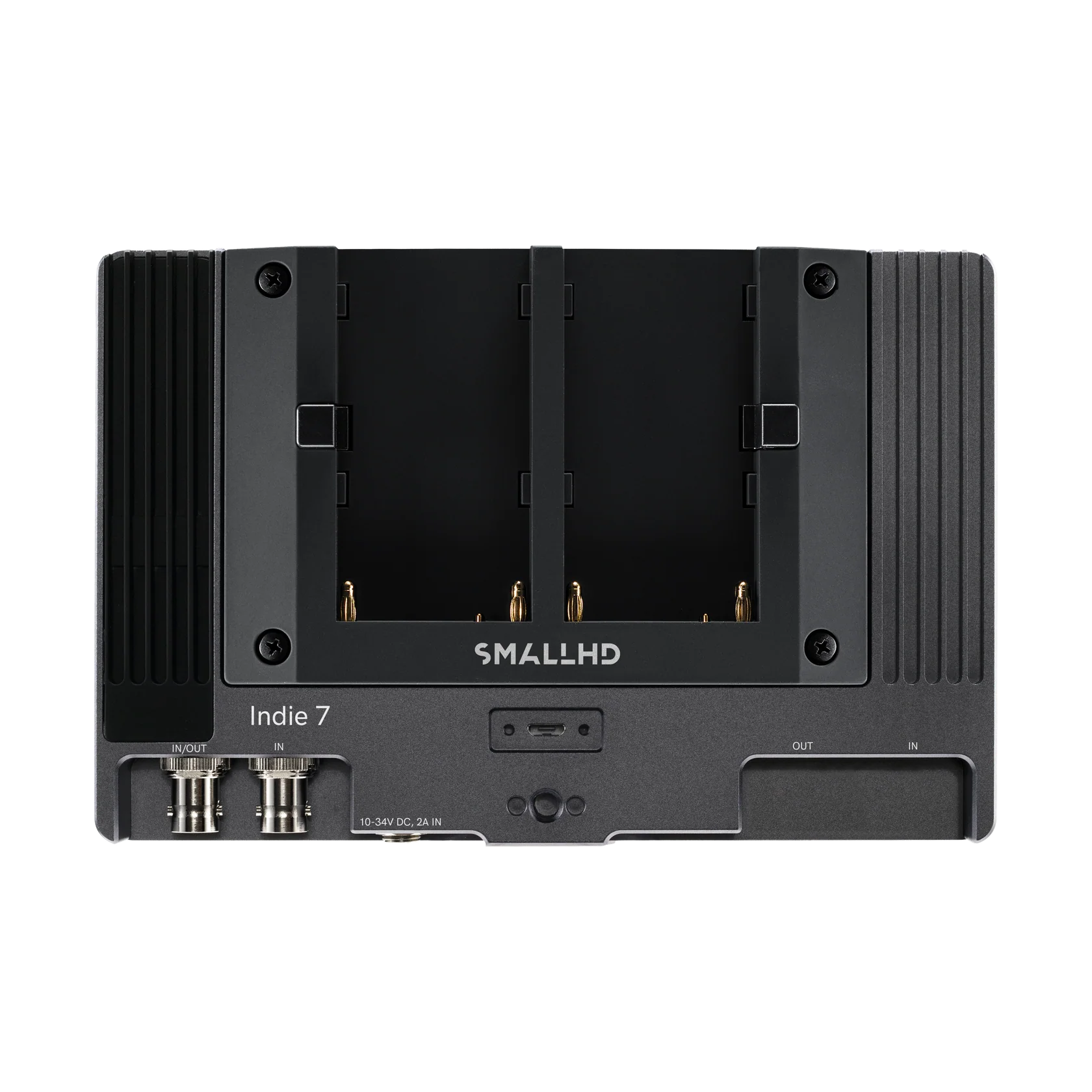

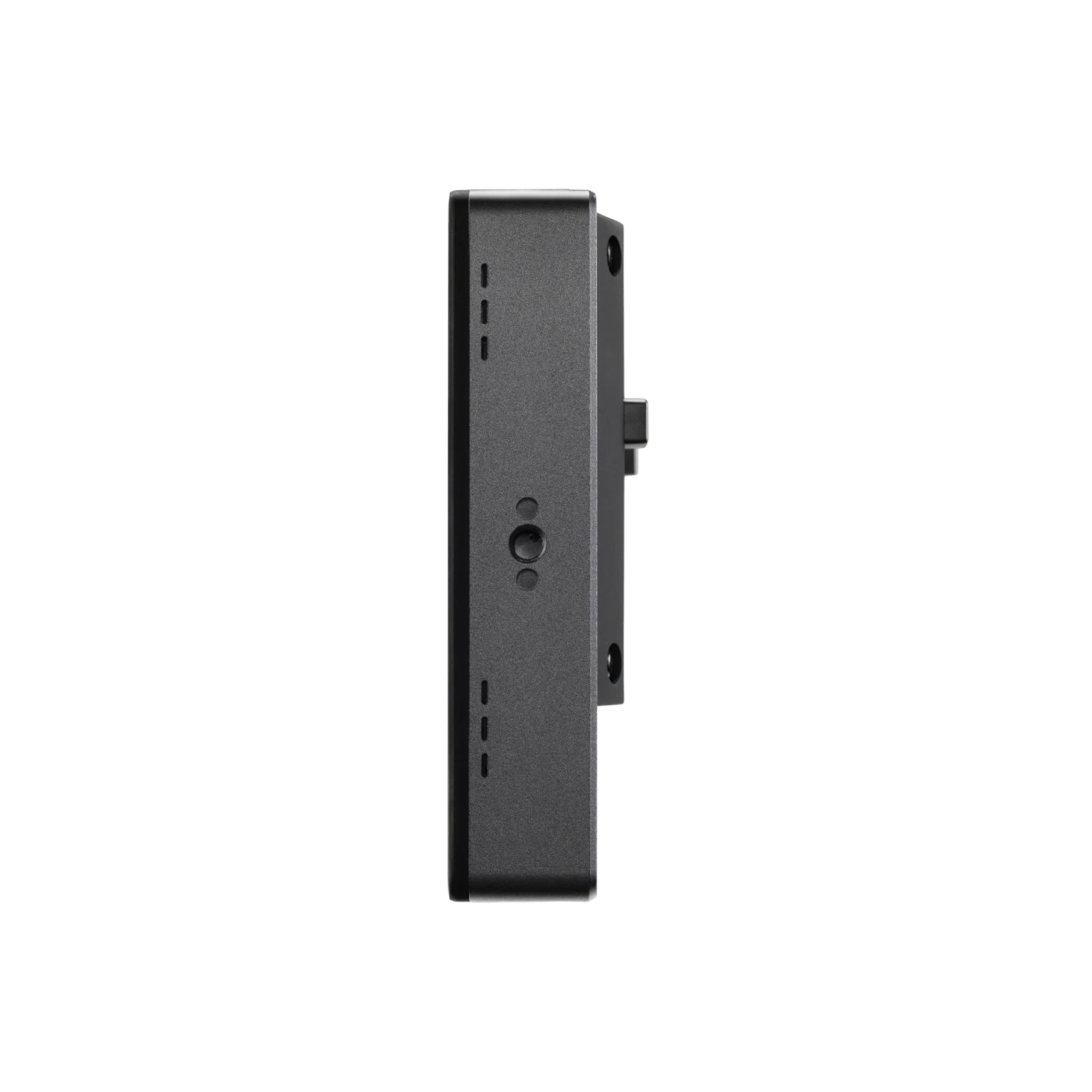

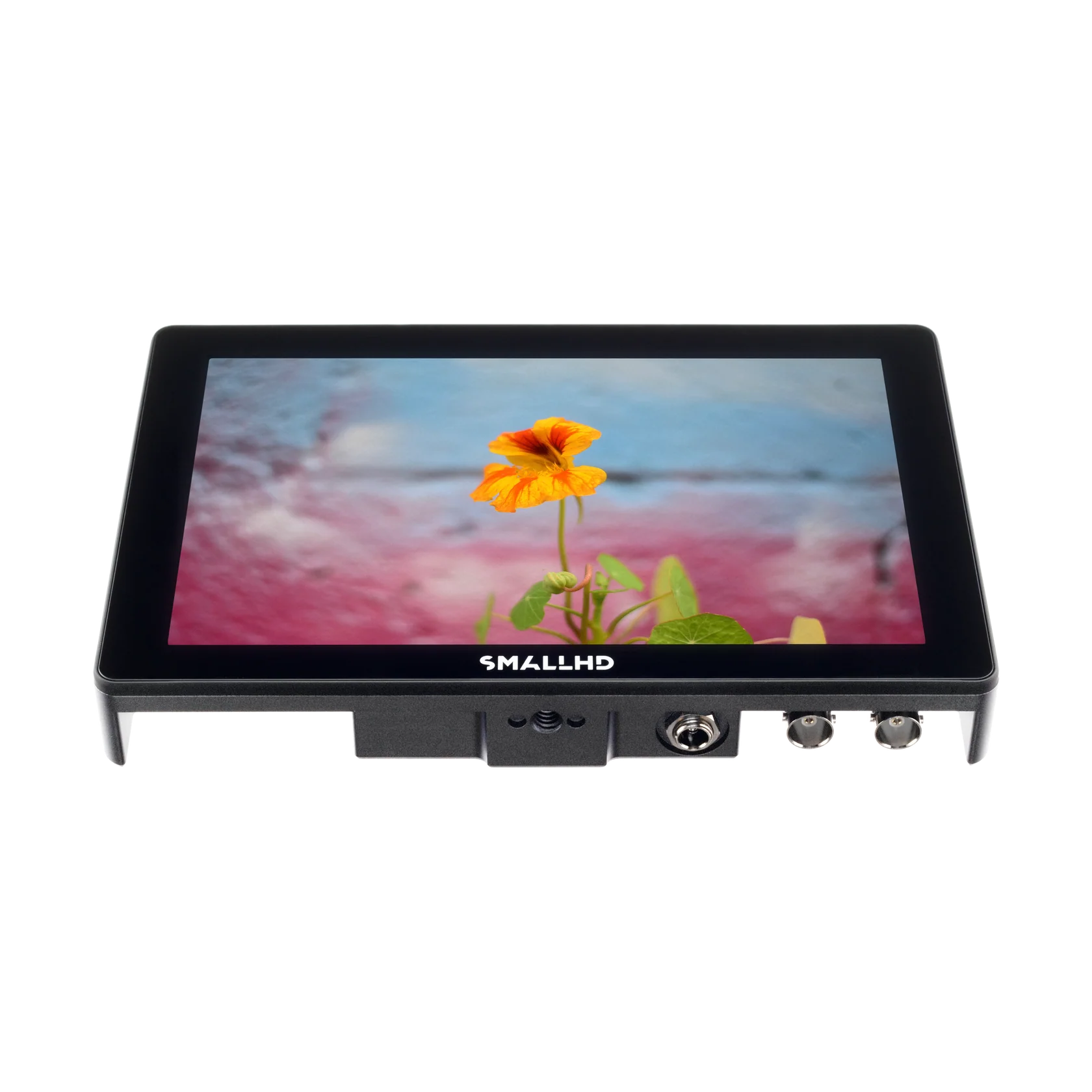

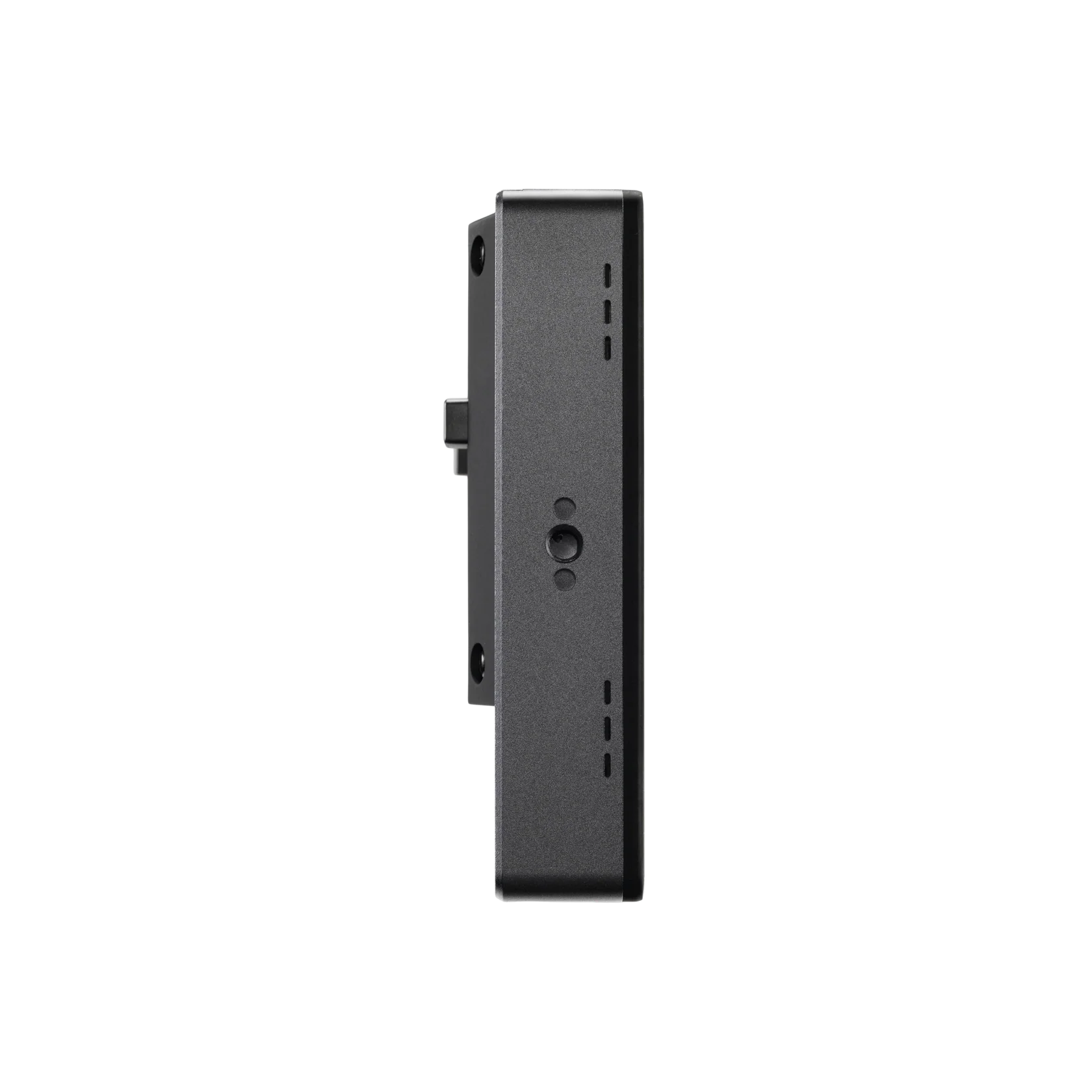

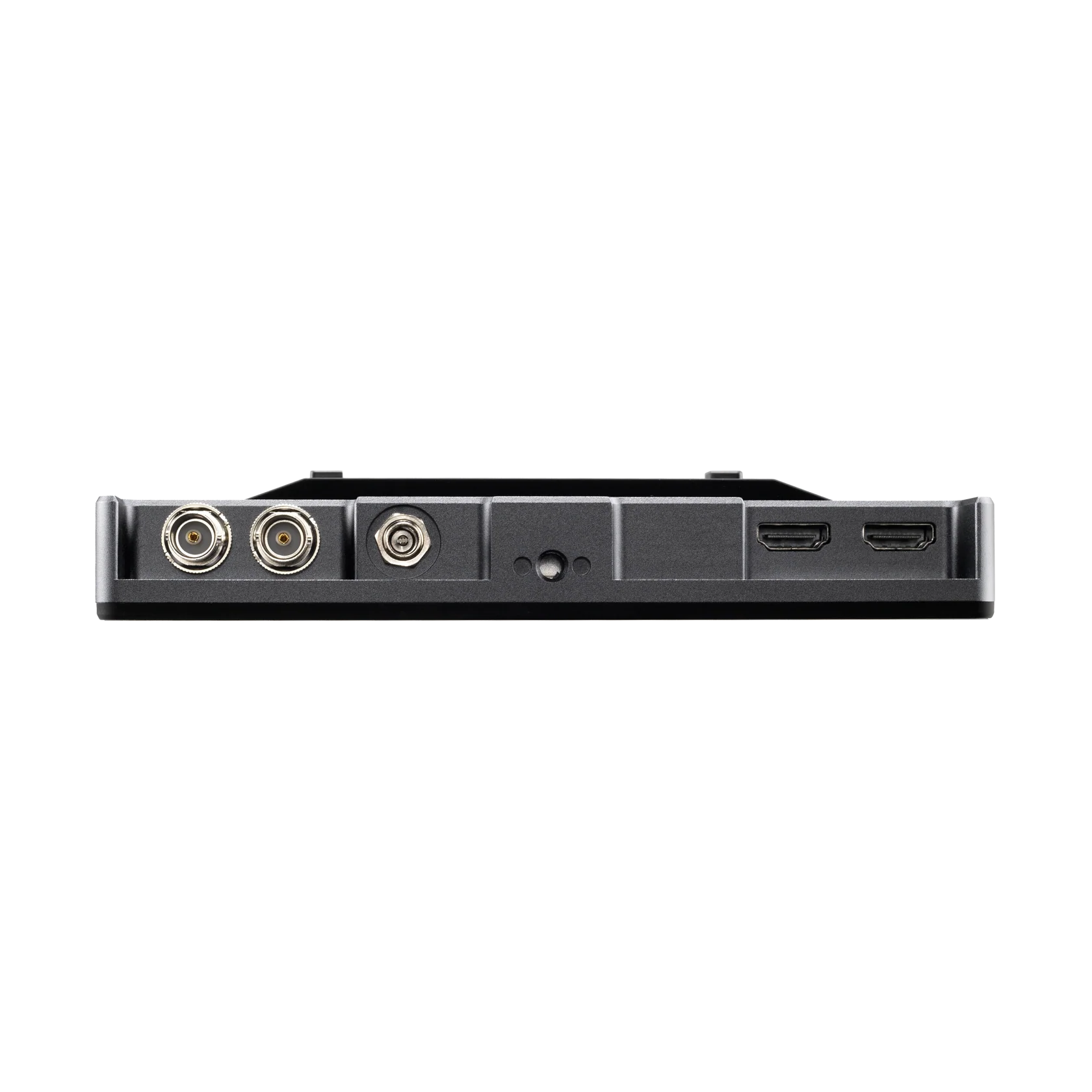

SmallHD INDIE 7″ Touchscreen On-Camera Monitor

The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7″ IPS LCD with 1920×1200 resolution, 10-bit color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.

The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4″-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.

Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.

Key Features:

7″ 1920×1200 Touchscreen Display
1000 cd/m², 10-Bit, IPS LCD Panel
HDMI & 3G-SDI Inputs & Outputs
Supports Video Input up to UHD 4K30
L-Series Battery Plate, SmallHD PageOS 4
Pixel Zoom, Focus Assist, Peaking Tools
SD Card Slot & Micro-USB Input
3.5mm Headphone Output, 1/4″-20 Threads

Features

Daylight-viewable, 7″ touchscreen on-camera monitor with 1000 cd/m² brightness / Slim, lightweight design with 10-bit, touchscreen IPS LCD panel / HDMI and 3G-SDI inputs and outputs; supports video input up to UHD 4K30 via HDMI / Four 1/4″-20 mounting threads on left, right, bottom, and back of the monitor / SmallHD PageOS 4 has all the features of OS3 to organize and save customized function and settings pages as well as a settings dashboard, page tabs, false color overlays, improved function buttons, pixel zoom, focus assist, peaking, and more / Power using a barrel input or with the included L-series battery plate, or use a separately available Gold mount or V-mount plate / Durable aluminum chassis / Display Tools / Pixel zoom: 2x and 4x with pinch-zoom / Aspect ratios: Preset and customizable

DSLR scale: Canon 5D Mk II and Canon 7D / Custom scale: Underscan only / Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x / Image flip: Auto and manual / Image rotation: Auto and manual / Cross conversion: HDMI to SDI, SDI to HDMI / Color focus assist: Adjustable style and intensity / Peaking: Adjustable intensity / False color: Spectrum, ARRI-style, and customizable / Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting / Vectorscope / RGB parade, customizable / Histogram: Luma and RGB / Image capture, with dedicated button and image gallery
/ Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu / LUT import: Via SD card or USB storage device / Image overlay: Opacity slider and blink setting / Image capture / Audio meters: Up to 8 channels

Teradek Bolt 6 RX 750 Monitor Module

Inputs/Outputs

Antenna I/O	No
Video I/O	2x HDMI 1.4b Output
Embedded Audio	HDMI: 2-Channel
Audio I/O	No
Power I/O	1x LEMO 2-Pin (18 VDC) Input
Other I/O	2x LEMO 5-Pin 2.0 Output
Encryption	Yes: 256-Bit AES

Wireless

Wireless Range	750′ / 228.6 m (Line-of-Sight)
# of Channels	24
Frequency Range	DFS Frequencies US: 5.27 to 5.67 GHz Non-DFS Frequencies US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz US: 5.94 to 6.42 GHz
Latency	0 ms
RF Power	22 dBm
Wi-Fi	Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.0
Mobile App Compatible	Yes: Android & iOS App Name: Bolt App
Cellular Support	No

Format Support

Video Format	HDMI/Wireless UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Audio Format	2-Channel 24-Bit 48 kHz
Wireless Video Compression	Uncompressed
Timecode Support	Yes

Power

Input Power	6 to 18 VDC
Battery	1x V-Mount on Fixed Plate
Power Consumption	7 W

Mounting

Tripod/Accessory Mounting

1x 1/4″-20 Female
1x 3/8″-16 Female

General

Environmental Resistance	No
Operating Conditions	32 to 72°F / 0 to 40°C
Material of Construction	Aluminum, Plastic
Dimensions	4.8 x 3.7 x 1.1″ / 122 x 94 x 27 mm
Weight	10.30 oz / 292.00 g

Svoris	2700 g

SmallHD 7″ Indie Monitor

SmallHD INDIE 7″ Touchscreen On-Camera Monitor

Teradek Bolt 6 RX 750 Monitor Module
