NAUJA

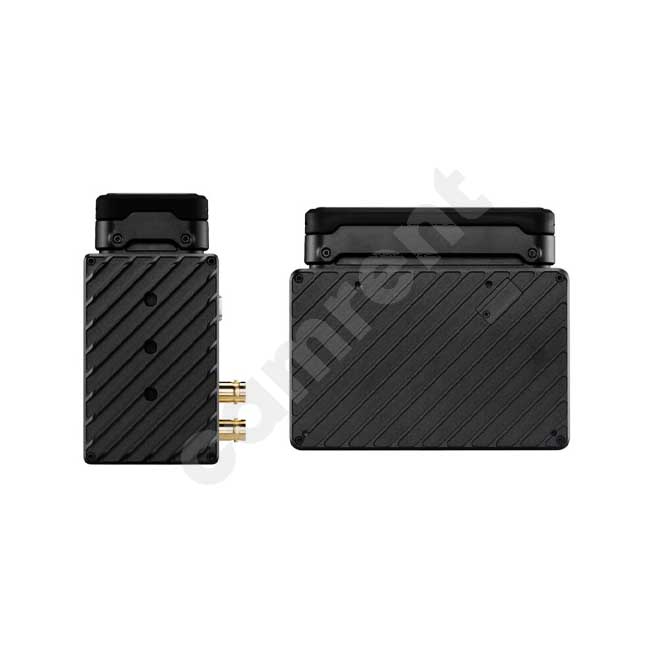

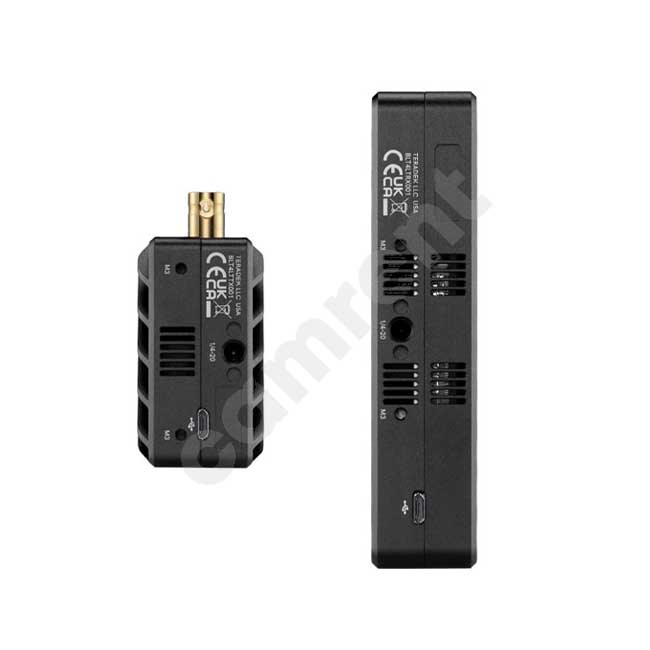

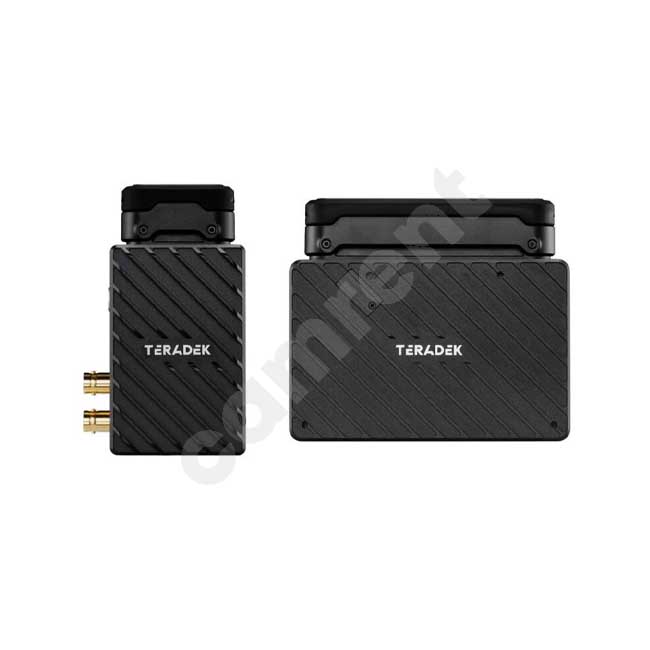

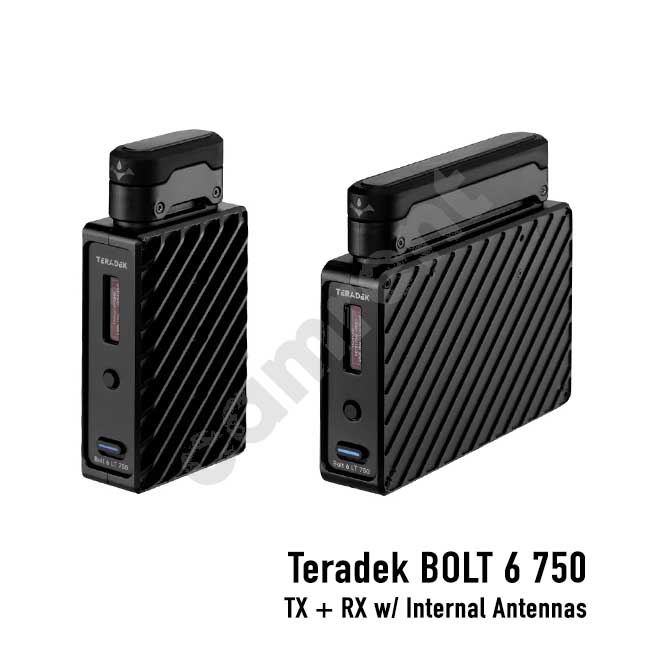

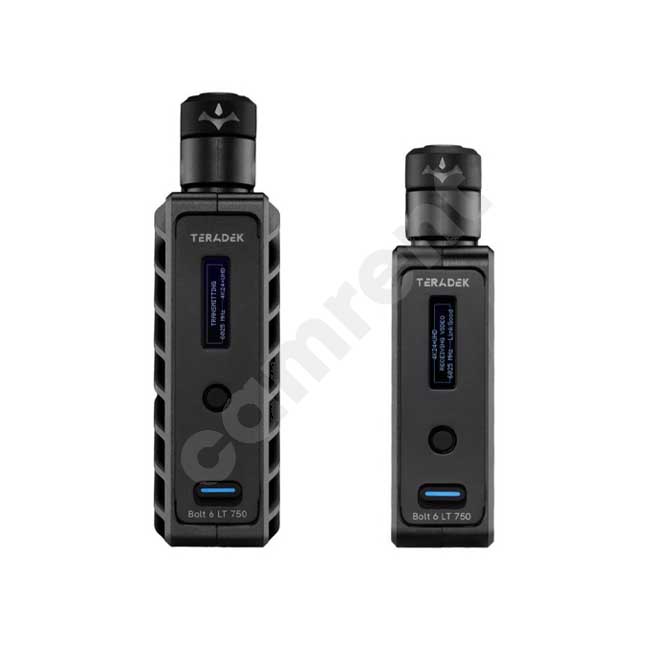

CAMRENT Teradek BOLT 6 750 SDI HDMI Video Transmission TX RX

Teradek BOLT 6 750 Video Transmission TX+RX

Name: Teradek BOLT 6 750 Video Transmission TX+RX
SKU: CAMR_TRDKBOLTTXRX
Price: 70.00 EUR
Availability: InStock

Kaina: 70,00 €

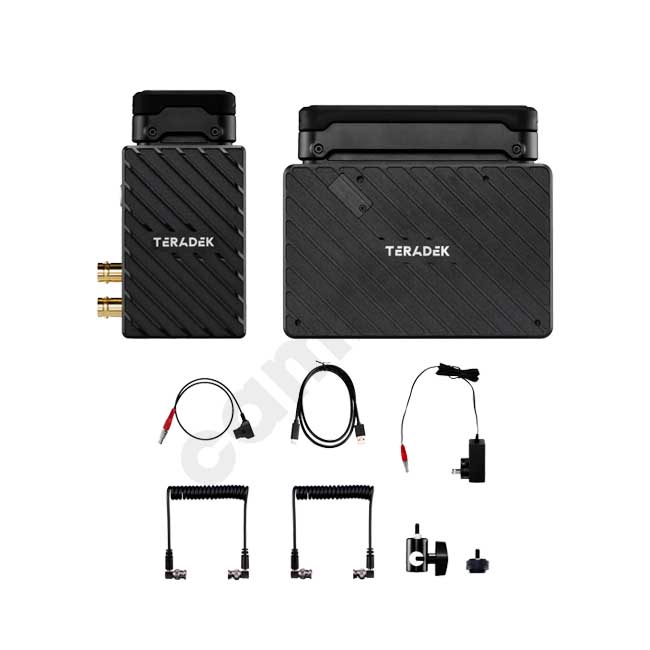

Komplektacija:
1x Bolt 6 LT 750 TX (siųstuvas)
1x Bolt 6 LT 750 RX (imtuvas)
1x Lightstand Adapter ¼-20in
1x Hot Shoe Adaptor
1x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
2x SDI – BNC to BNC Cable, 25 cm
2x HDMI A to HDMI A BNC Cable 30 cm
1x PSU 2pin Conn. to 18W AC Adapter (Int) – 6ft Cable
Hard case

Suderinamas RX ACE modulis Teradek ACE 750 RX
Suderinamas TX BOLT 6 modulis Teradek BOLT 6 TX
Suderinamas TX+RX ACE komplektas Teradek ACE 750 TX+RX

Produkto kodas: CAMR_TRDKBOLTTXRX Kategorijos: Laidai ir jungtys, Monitoriai, Įrašantys monitoriai

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas

Transmit and receive lossless HD video at ranges up to 230 m (750′) line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas from Teradek. This kit includes a wireless Bolt 6 LT 3G-SDI/HDMI transmitter and wireless Bolt 6 LT 3G-SDI/HDMI receiver, both with internal antennas, that support the 6 GHz wireless frequency, feature bright OLED displays, and can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support.

The transmitter inputs video over 3G-SDI or HDMI and features 3G-SDI and HDMI loop outputs, and the receiver outputs video via 3G-SDI and HDMI. Both units are also compatible with all Bolt 4K and Teradek Ace 750 models using the 5 GHz wireless band. Please note that this kit includes just one 6′ 2-pin to AC adapter cable.

Key Features:

3G-SDI/HDMI Transmitter & Receiver Set
Internal Antennas Transmitter & Receiver
Supports 6 GHz Frequency Band
Transmission up to 230 m / 750′ Line of Sight
Transmit/Receive up to 4K30 HDR Video
3G-SDI/HDMI Inputs & Outputs
Compatible with Bolt 4K, Bolt 6 and ACE 750 Units
HDMI Input/Output, Built-In Antennas
5 and 6 GHz Frequency Support

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas

Transmit lossless HD video up at distances up to 750′ with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas from Teradek. The transmitter can input video over HDMI or 3G-SDI with 10-bit 4:2:2 HDR support and supports the 6 GHz wireless band. This transmitter unit provides a powerful signal that can travel up to 750′ line of sight and features a sleek form with all antennas tucked inside, a bright OLED display, and an SDI loop output.

Sleek Design with Internal Antennas

The antennas in this transmitter are all tucked inside, producing a sleek, compact form. There are 1/4″-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Transmits to up to Six Receivers

The transmitter supports the transmission of video to up to six receivers, and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keep your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

Cross-Compatibility

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

Up to UHD 4K30 via HDMI

Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI and output via an SDI loop out.
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut.
The wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration.

Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver with Internal Antennas

Receive lossless HD video from up to 750′ away along the line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver with Internal Antennas from Teradek. This unit can wirelessly receive up to UHD 4K30 video with 10-bit HDR and output video via an HDMI or 3G-SDI port. It comes in a sleek form with all antennas tucked inside. It features a bright OLED display and support for the 6 GHz wireless band.

Sleek Design with Internal Antennas

The antennas in this receiver are all tucked inside, producing a sleek, compact form. There are 1/4″-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Cross-Compatibility

This receiver is cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum and works with Bolt 6 series devices using the 6 GHz frequency band. It also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas

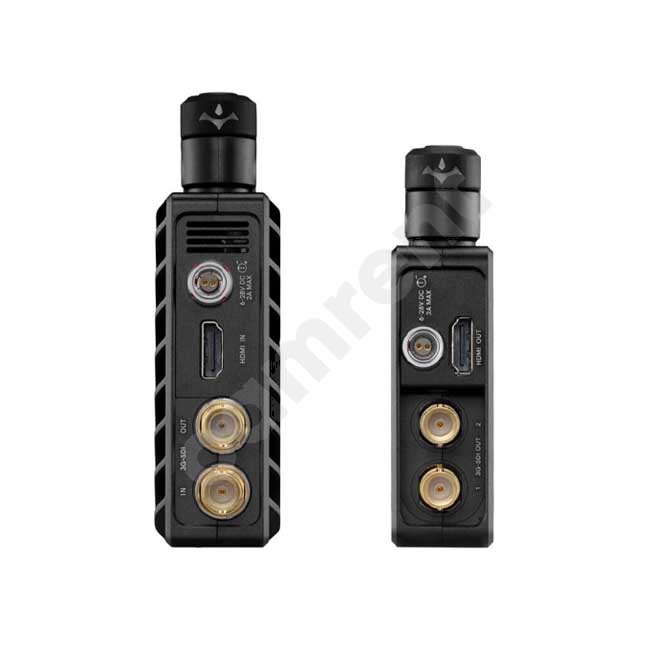

Inputs/Outputs

Antenna I/O	No
Video I/O	1x HDMI 1.4b Input 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI: 2-Channel SDI
Audio I/O	No
Power I/O	1x LEMO 2-Pin (28 VDC) Input
Other I/O	1x Micro-USB Input
Encryption	Yes: 256-Bit AES

Wireless

Wireless Range	750′ / 228.6 m (Line-of-Sight)
Channel Bandwidth	40 MHz, 20 MHz
Frequency Range	Non-DFS Frequencies US: 5.94 to 6.42 GHz DFS Frequencies US: 5.27 to 5.67 GHz
Latency	0 ms
RF Power	23 dBm
Wi-Fi	Yes
Bluetooth	Yes
Mobile App Compatible	Yes: Android & iOS App Name: Bolt App
Cellular Support	No

Format Support

Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Audio Format	2-Channel 24-Bit 48 kHz
Wireless Video Compression	Uncompressed
Timecode Support	Yes

Power

Input Power	6 to 28 VDC
Battery	Interchangeable Mount (No Plate Included)
Power Consumption	9 W

Mounting

Tripod/Accessory Mounting

Bottom 1x 1/4″-20 Female

General

Status Display	Yes
Environmental Resistance	No
Operating Conditions	32 to 72°F / 0 to 40°C
Material of Construction	Aluminum
Dimensions	4.1 x 2.4 x 1.3″ / 103 x 60 x 33 mm
Weight	7.27 oz / 206.00 g

Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver with Internal Antennas
