CAMRENT Teradek Ace 750 HDMI Video Transmission

Teradek Ace 750 HDMI Video Transmission TX-RX

Name: Teradek Ace 750 HDMI Video Transmission TX-RX
SKU: CAMR_TRDKACE750
Price: 27.00 EUR
Availability: InStock

Kaina: 27,00 €

Komplektacija:
Teradek Ace 750 Wireless Video Transmitter & Ace 750 Receiver
2x Shoe Adapter
2x HDMI Cable
2x D-Tap to Barrel Cable (50 cm)
1x Power Adapter (18W 12 VDC)
Hard case for transportation

Modernesnis / suderinamas BOLT 6 Teradek BOLT 6 TX+RX
Suderinama TX BOLT 6 Teradek BOLT 6 TX module
Papildomas RX modulis – Teradek ACE 750 RX

Produkto kodas: CAMR_TRDKACE750 Kategorijos: Laidai ir jungtys, Monitoriai, Įrašantys monitoriai, CAMRENT–5 Žyma: camrent5

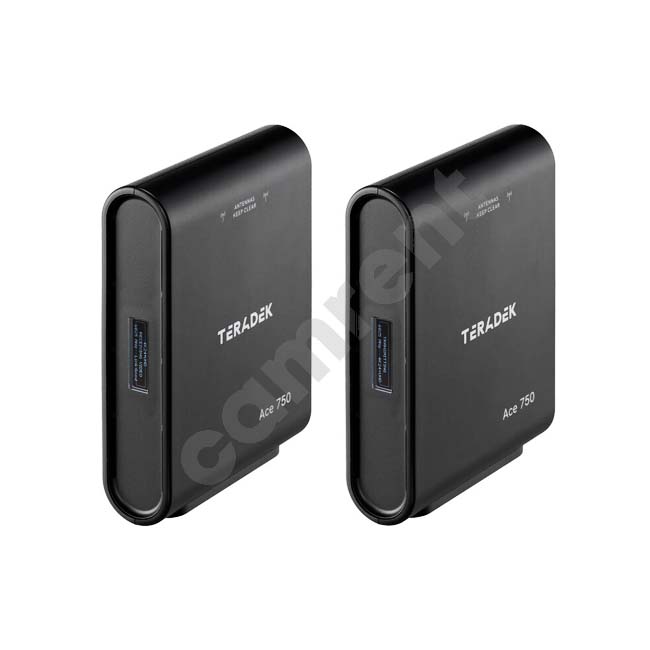

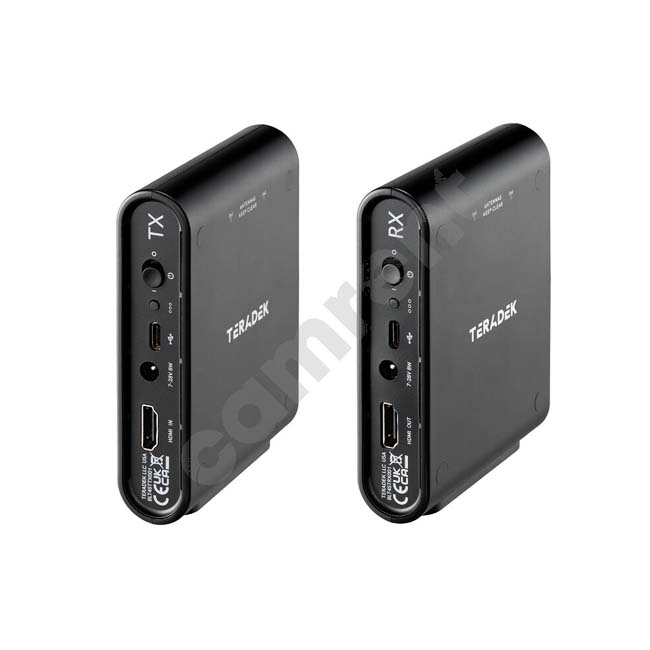

Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set

The Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set includes an Ace 750 transmitter unit and an Ace 750 receiver unit. The system allows you to transmit and receive visually lossless, uncompressed 10-bit 4K30 HDR video signals from a camera with no delay up to 750′ line of sight. The Ace 750 supports 5 and 6 GHz frequency bands, so it is compatible with existing Bolt systems such as the Bolt 6 and Bolt 4K, as well as SmallHD monitors with integrated Bolt TX or RX units. Built-in antennas make the unit more compact and easy to install, and the units feature HDMI connectors.

Key Features:

Includes Transmitter and Receiver Units
Transmit/Receive up to 4K30 HDR Video
Compatible with Bolt 4K and Bolt 6 Units
Transmission up to 230 m / 750′ Line of Sight
HDMI Input/Output, Built-In Antennas
Transmit to up to 6 Receivers/Devices
5 and 6 GHz Frequency Support
Inputs/Transmits/Outputs Embedded Audio
Less than 1 ms Latency

Teradek Ace 750 Wireless Video Transmitter

With the Teradek Ace 750 HDMI Wireless Video Transmitter, you can transmit visually lossless, uncompressed 10-bit 4K30 HDR video signals from your camera to one or more Ace 750 receivers with no delay up to 750′ line of sight. The Ace 750 supports 5 and 6 GHz frequency bands, so it is compatible with existing Bolt systems such as the Bolt 6 and Bolt 4K, as well as SmallHD monitors with integrated Bolt receivers. Built-in antennas make the unit more compact and easy to install.

The Ace 750 features an HDMI input, and power is provided using a DC power source or L-series battery plate, both available separately. The transmitter can send the video signal simultaneously to up to six devices, including Ace or Bolt receivers and devices running the Bolt Manager app. The unit can be secured to a mount or stand via built-in threads.

Zero-Delay Wireless Video

Transmit uncompressed 4K30 video to receivers up to 230 m / 750′ away with less than a 1 ms delay.

Bolt Compatibility

Supporting 5 and 6 GHz frequency ranges, Ace 750 transmitters are compatible with all Bolt 4K, Bolt 6, LT, and XT receivers, as well as integrated wireless SmallHD Bolt monitors.

Reliability

Built with the same reliability and performance as the Bolt, the Ace 750 ensures you have a continuous video feed when you need it most.

Mounting Options

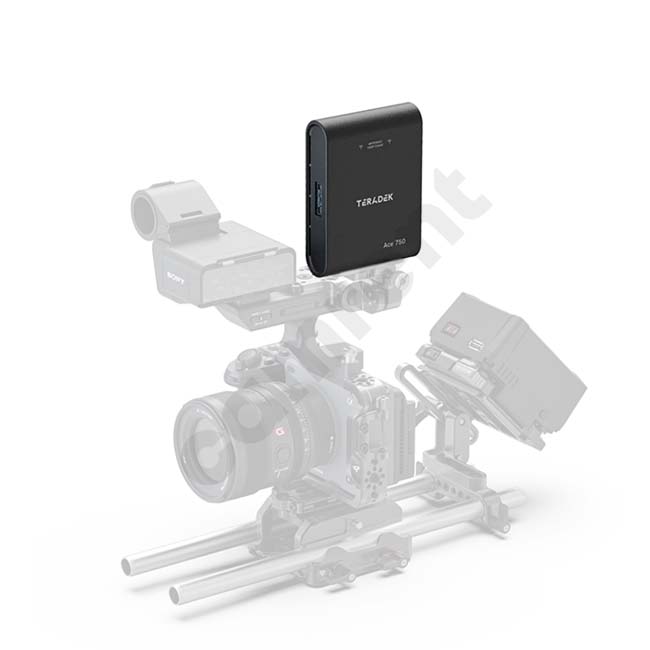

The Ace 750 transmitter includes multiple mounting threads for mounting onto a rig or stand.

Power Options

The Ace 750 is powered by using a separately available DC power source or by a separately available L-series battery plate attached directly to the transmitter.

Teradek Ace 750 HDMI Wireless Video Receiver

With the Teradek Ace 750 HDMI Wireless Video Receiver, you can receive visually lossless, uncompressed 10-bit 4K30 HDR video signals from a camera with an Ace 750 transmitter with no delay up to 230 m / 750′ line of sight. The Ace 750 supports 5 and 6 GHz frequency bands, so it is compatible with existing Bolt systems such as the Bolt 6 and Bolt 4K, as well as SmallHD monitors with integrated Bolt TX or RX units. Built-in antennas make the unit more compact and easy to install.

The Ace 750 features an HDMI output, and power is provided using a DC power source or L-series battery plate, both available separately. A separately available Ace 750 transmitter can send the video signal simultaneously to up to six receiver devices, including Ace or Bolt receivers and devices running the Bolt Manager app. The unit can be secured to a mount or stand via built-in threads.

Zero-Delay Wireless Video

Transmit and receive up to 10-bit 4K30 uncompressed HDR video to receivers up to 750′ away with less than a 1 ms delay.

Bolt Compatibility

Supporting 5 and 6 GHz frequency ranges, Ace 750 receivers are compatible with all Bolt 4K and Bolt 6 receivers, as well as integrated wireless SmallHD Bolt monitors.

Reliability

Built with the same reliability and performance as the Bolt, the Ace 750 ensures you have a continuous video feed when you need it the most.

Mounting Options

The Ace 750 receiver includes multiple mounting threads for mounting onto a rig or stand.

Power Options

The Ace 750 is powered using a separately available DC power source or by a separately available L-series battery plate attached directly to the receiver.

Teradek Ace 750 Wireless Video Transmitter

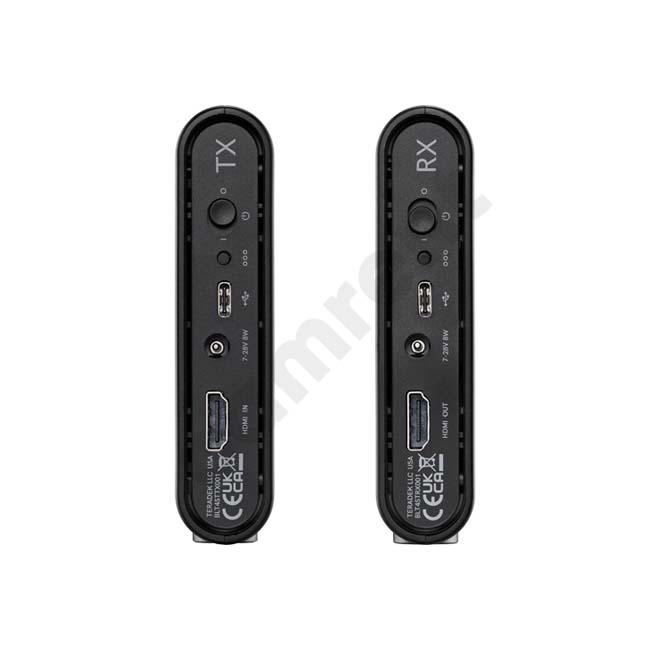

Inputs/Outputs

Antenna I/O	No
Video I/O	1x HDMI 1.4b Input
Embedded Audio	HDMI: 2-Channel
Audio I/O	No
Power I/O	1x Barrel Input
Other I/O	1x USB-C (Firmware) Input
Encryption	Yes: 256-Bit AES

Wireless

Wireless Range	750′ / 228.6 m (Line-of-Sight)
Channel Bandwidth	40 MHz
Frequency Range	Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
Latency	0 ms
RF Power	19 dBm
Wi-Fi	No
Bluetooth	Yes
Mobile App Compatible	Yes: Android & iOS App Name: Bolt Manager Functionality: Adjust Settings, Remote Control, Setup
Cellular Support	No

Format Support

Video Format	HDMI (10-Bit 4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i 480i: 59.94
Audio Format	2-Channel 24-Bit 48 kHz
Timecode Support	Yes

Power

Input Power	7 to 18 VDC
Battery	Interchangeable Mount (No Plate Included)
Power Consumption	6 W

Mounting

Tripod/Accessory Mounting

Bottom
1x 1/4″-20 Female
2x M3 Female

General

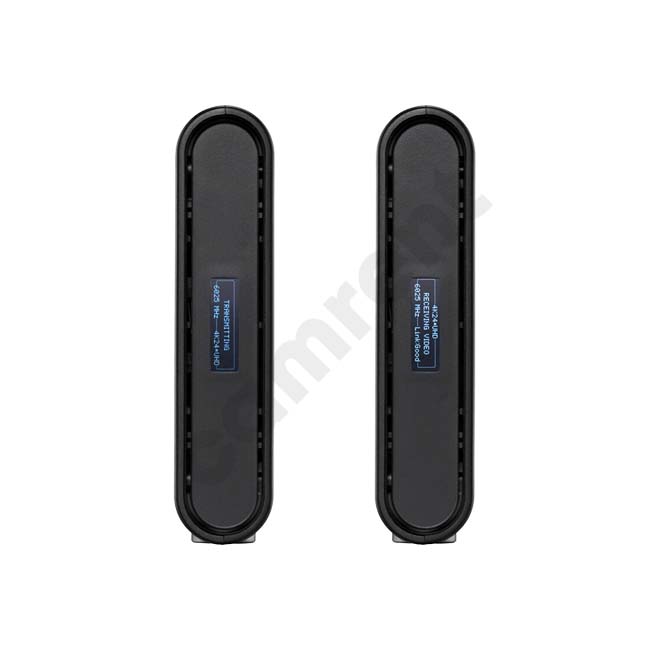

Status Display	Yes
Environmental Resistance	No
Operating Conditions	32 to 104°F / 0 to 40°C
Material of Construction	Plastic
Dimensions	4.4 x 3.2 x 1″ / 112 x 81 x 25 mm
Weight

Display

Panel Type	Receiver: LCD
Display Size	7.0″ / 17.8 cm
Display Size	Receiver: 7.0″ / 17.8 cm
Resolution	Receiver: 1920 x 1200
Aspect Ratio	Receiver: 16:10
Touchscreen	Yes
Image Controls	False Color, Focus Peaking, Screen Markers, Waveform, Zebra

Inputs / Outputs

Video I/O	Transmitter: 1x HDMI 1.4 Input Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI/SDI
Audio I/O	Receiver: 1x 1/8″ / 3.5 mm Headphone Output
Power	Transmitter/Receiver: 1 x Barrel Input
Other I/O	Receiver: 1x USB-C 2.0 Input
Media/Memory Card Slot	Single Slot: microSD/microSDHC
Encryption	256-Bit AES

Wireless

Wireless Range	3.7 Miles / 6 km (Line-of-Sight)
# of Channels	23
Channel Bandwidth	40 MHz
Frequency Range	Non-DFS Frequencies 2.4 to 2.48 GHz 5.15 to 5.25 GHz 5.72 to 5.85 GHz DFS Frequencies 5.25 to 5.35 GHz 5.47 to 5.6 GHz 5.65 to 5.72 GHz
Latency	68 ms
RF Power	< 33 dBm
Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth	No
Mobile App Compatible	No *As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Cellular Support	No

Format Support

Video Format	HDMI/SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Audio Format	16-Bit 48 kHz PCM Audio
Wireless Video Compression	Compressed
Timecode Support	Yes

Power

DC Input Power	6 to 18 VDC
Battery Type	Transmitter/Receiver: 1 x L-Series (Interchangeable Mount)
Power Consumption	Transmitter/Receiver: 11 W

Mounting

Cold Shoe

Environmental

Environmental Protection	No
Certifications	CE, FCC
Operating Temperature	-10 to 45°C

General

Dimensions	Transmitter: 127x87x26 mm Receiver: 213x135x51 mm
Weight	Transmitter: 350g, Excluding Antenna Receiver: 727g, Excluding Antenna

Teradek Ace 750 HDMI Wireless Video Receiver

Inputs/Outputs

Antenna I/O	No
Video I/O	1x HDMI 1.4b Output
Embedded Audio	HDMI: 2-Channel
Audio I/O	No
Power I/O	1x Barrel (18 VDC) Input
Other I/O	1x USB-C (Firmware) Input
Encryption	Yes: 256-Bit AES

Wireless

Wireless Range	750′ / 228.6 m (Line-of-Sight)
Channel Bandwidth	40 MHz
Frequency Range	Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
Latency	0 ms
RF Power	17 dBm
Wi-Fi	No
Bluetooth	Yes
Mobile App Compatible	Yes: Android & iOS App Name: Bolt Manager Functionality: Adjust Settings, Remote Control, Setup
Cellular Support	No

Format Support

Video Format	HDMI (10-Bit 4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i 480i: 59.94
Audio Format	2-Channel 24-Bit 48 kHz
Timecode Support	Yes

Power

Input Power	7 to 18 VDC
Battery	Interchangeable Mount (No Plate Included)
Power Consumption	6 W

Mounting

Tripod/Accessory Mounting

Bottom
1x 1/4″-20 Female
2x M3 Female

General

Status Display	Yes
Environmental Resistance	No
Operating Conditions	32 to 104°F / 0 to 40°C
Material of Construction	Plastic
Dimensions	4.4 x 3.2 x 1″ / 112 x 81 x 25 mm
Weight	6.60 oz / 187.00 g
