NAUJA

CAMRENT SmallHD Ultra5 Tereadek Bolt6 TX Monitor to rent

SmallHD Ultra5 Tereadek Bolt6 TX Monitor

SmallHD Ultra 5″ Monitor +Teradek BOLT 6 750 TX

Name: SmallHD Ultra 5" Monitor +Teradek BOLT 6 750 TX
SKU: ALX_ULTRA5BOLT6TX
Price: 55.00 EUR
Availability: InStock

Kaina: 55,00 €

Komplektacija:
SmallHD ULTRA 5 Bolt 6 TX 750 Monitor
2x Teradek Flexible 5/6 GHz V-Antennas
SmallHD D-Tap to 2-Pin Lemo Power Cable (90cm)
SDI cable angled 60cm, HDMI cable 55cm
Sunhood
SMALLRIG Magic Arm Support Small 7″ with 1/4″-20 Screws 5308
Case

Naudojant kaip monitorių – 35€

SmallHD Cine5 Monitor
SmallHD didesnis SmallHD 7″ Indie
Suderinamas BOLT 6 TX-RX Teradek BOLT6 TX+RX
Suderinamas BOLT 6 TX Teradek BOLT 6 TX

Produkto kodas: ALX_ULTRA5BOLT6TX Kategorijos: CAMRENT–5, Monitoriai Žymos: bolt6, smallhd, teradek

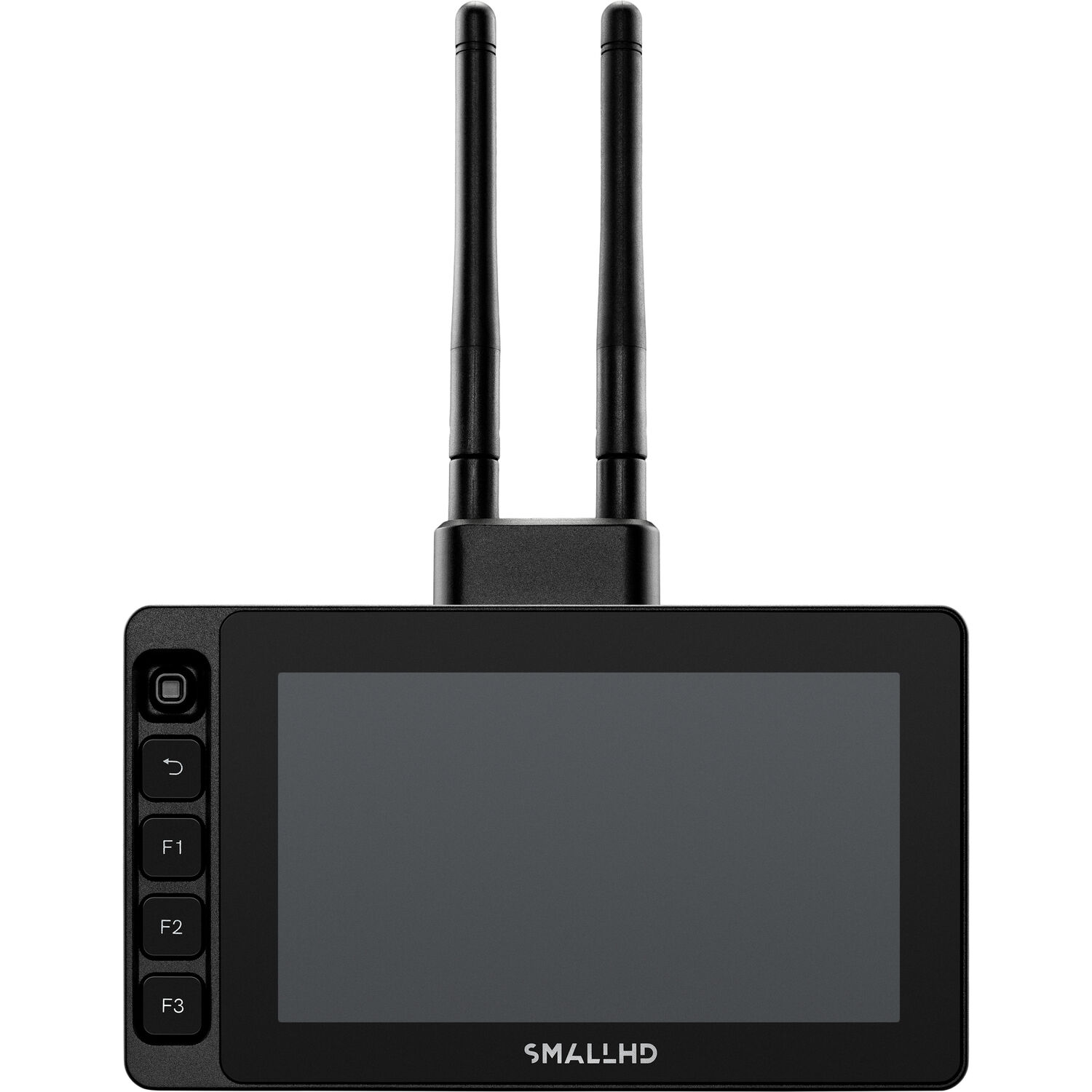

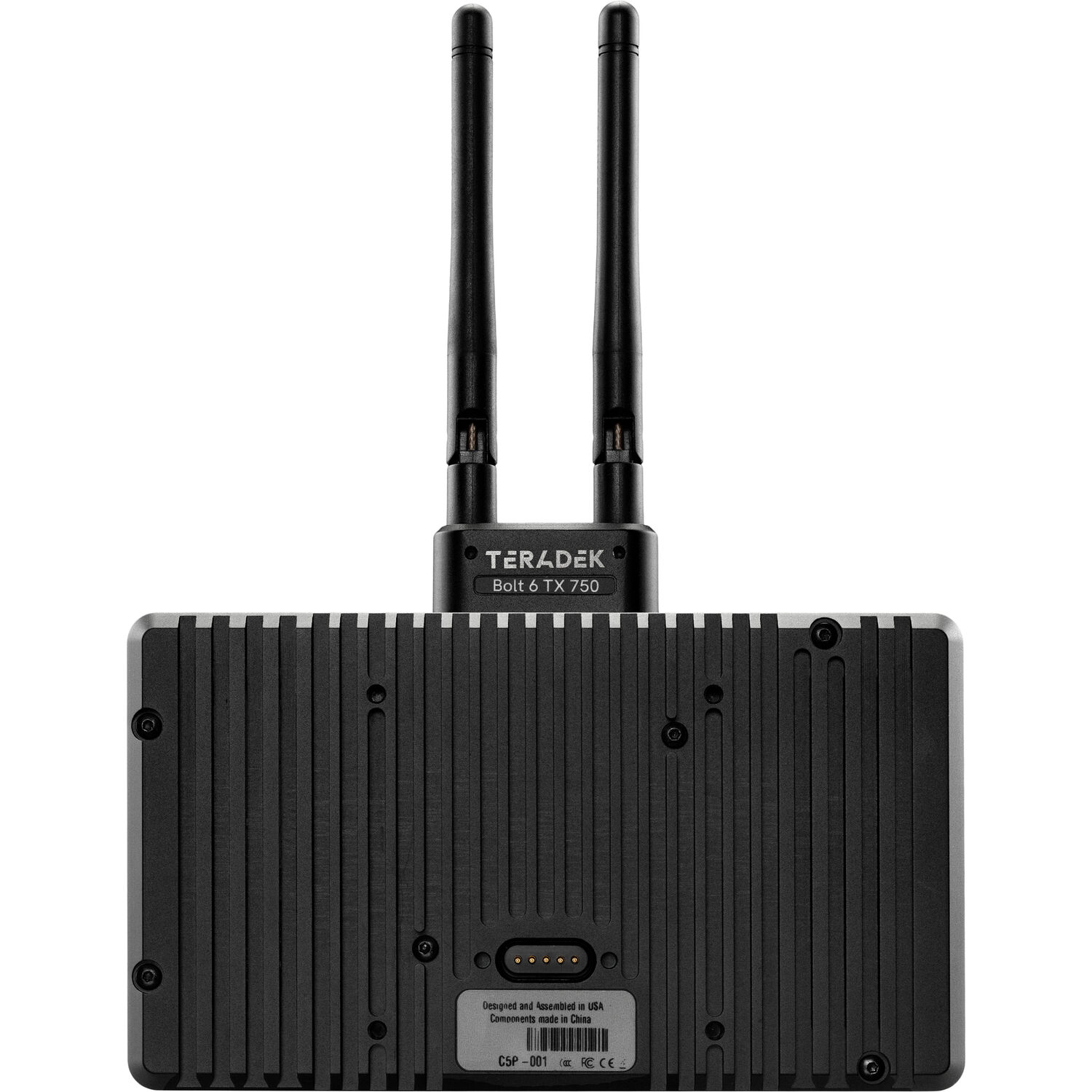

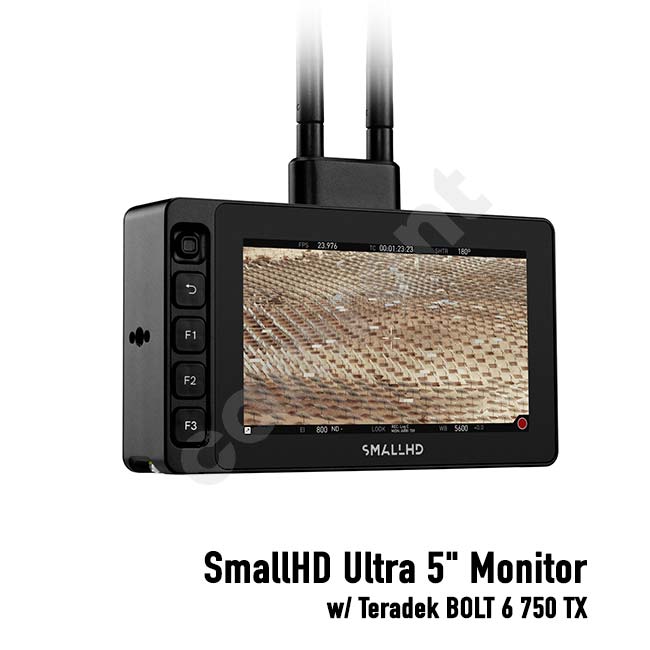

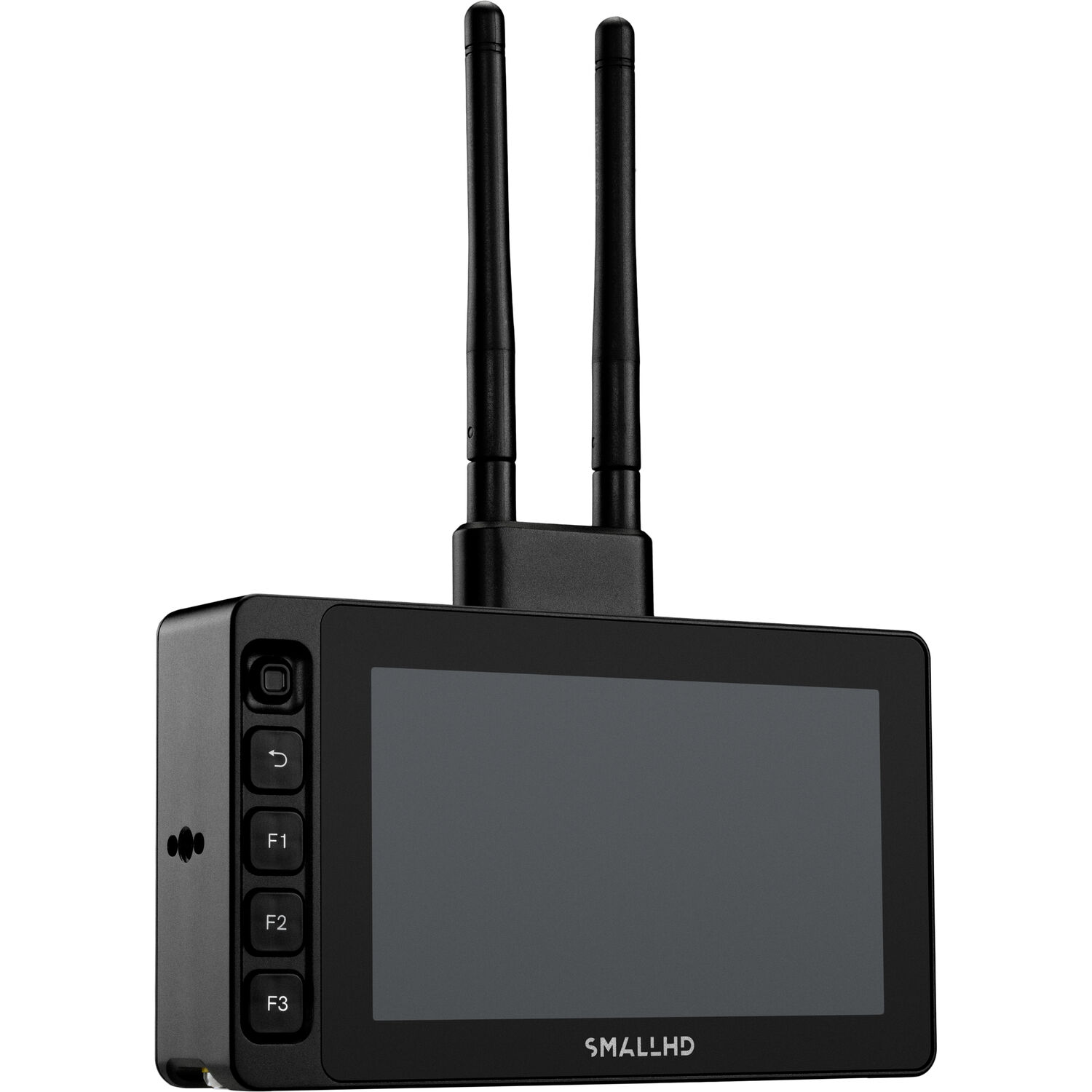

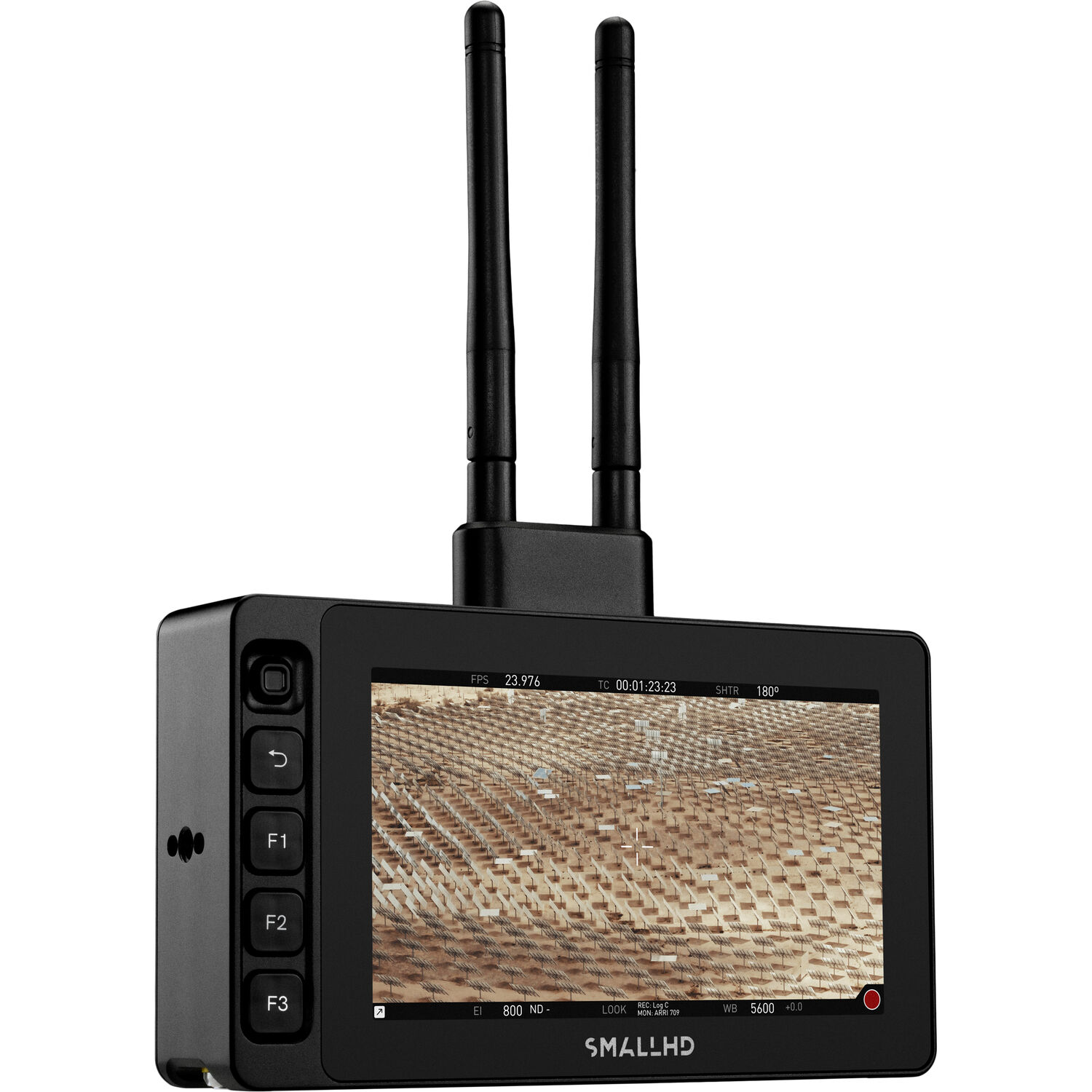

SmallHD ULTRA 5 Bolt 6 TX 750 Monitor

Add an ultra-bright monitor with wireless control to your production rig with the SmallHD ULTRA 5 Bolt 6 TX 750 Monitor. The unit includes an ULTRA 5 bright 5″ on-camera monitor and an integrated Bolt 6 transmitter from Teradek. The monitor features a 3000 bright cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options, and 10-bit 4:2:2 Rec. 709 color processing.

The built-in transmitter module provides wireless image transmission up to 750′, as well as wireless camera control using an optional receiver module on the other end. The module can transmit via the 6 GHz wireless band to up to six Teradek Bolt 6 series receivers, as well as to 5 GHz receivers such as the Teradek Bolt 4K series.

Key Features:

5″ 1920 x 1080 Touchscreen Display
Built-In Bolt 6 Wireless Transmitter
3G-SDI & HDMI Inputs & Outputs
6 GHz Wireless Transmission up to 750′
Bright 3000 cd/m² LCD Panel
10-Bit 4:2:2 DCI-P3 Color Gamut
5-Pin USB & Ethernet Control Ports
Power via 2-Pin LEMO Input
PageOS 5 with Imaging Tools
Milled Aluminum Unibody Housing

Features

The Ultra 5 Bolt 6 TX 750 integrates a Bolt 6 750 Transmitter directly inside the Ultra 5 monitor, allowing you to wirelessly send the image from your camera up to 750′ away

Daylight-viewable, 5″ touchscreen on-camera monitor with 3000 cd/m² brightness

Slim, lightweight design with 10-bit 4:2:2 DCI-P3 color, touchscreen LCD panel

HDMI and 3G-SDI inputs and outputs

The Bolt 6 750 TX is a real-time wireless video transmitter that supports video signals up to 4K30 via HDMI with no image delay, allowing you to send color-accurate, True HDR images in less than 0.001 seconds

Buttons around the monitor allow you to use the monitor in any conditions

The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more

Four 1/4″-20 mounting threads on the left, right, bottom, and back of the monitor

Power using a 2-pin power input

Optional RED camera control via the micro-USB port

Optional ARRI/Sony VENICE camera control via the Ethernet port

Durable aluminum chassis

Display Tools

Pixel zoom: 2x and 4x with pinch-zoom
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with a dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to eight channels

SmallHD ULTRA 5 TX Specs

Display

Panel Type	LCD
Display Size	5.0″ / 12.7 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Touchscreen	Yes
Maximum Brightness	3000 nits / cd/m²
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	No
Color Gamut	100% DCI-P3
Image Controls	Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform

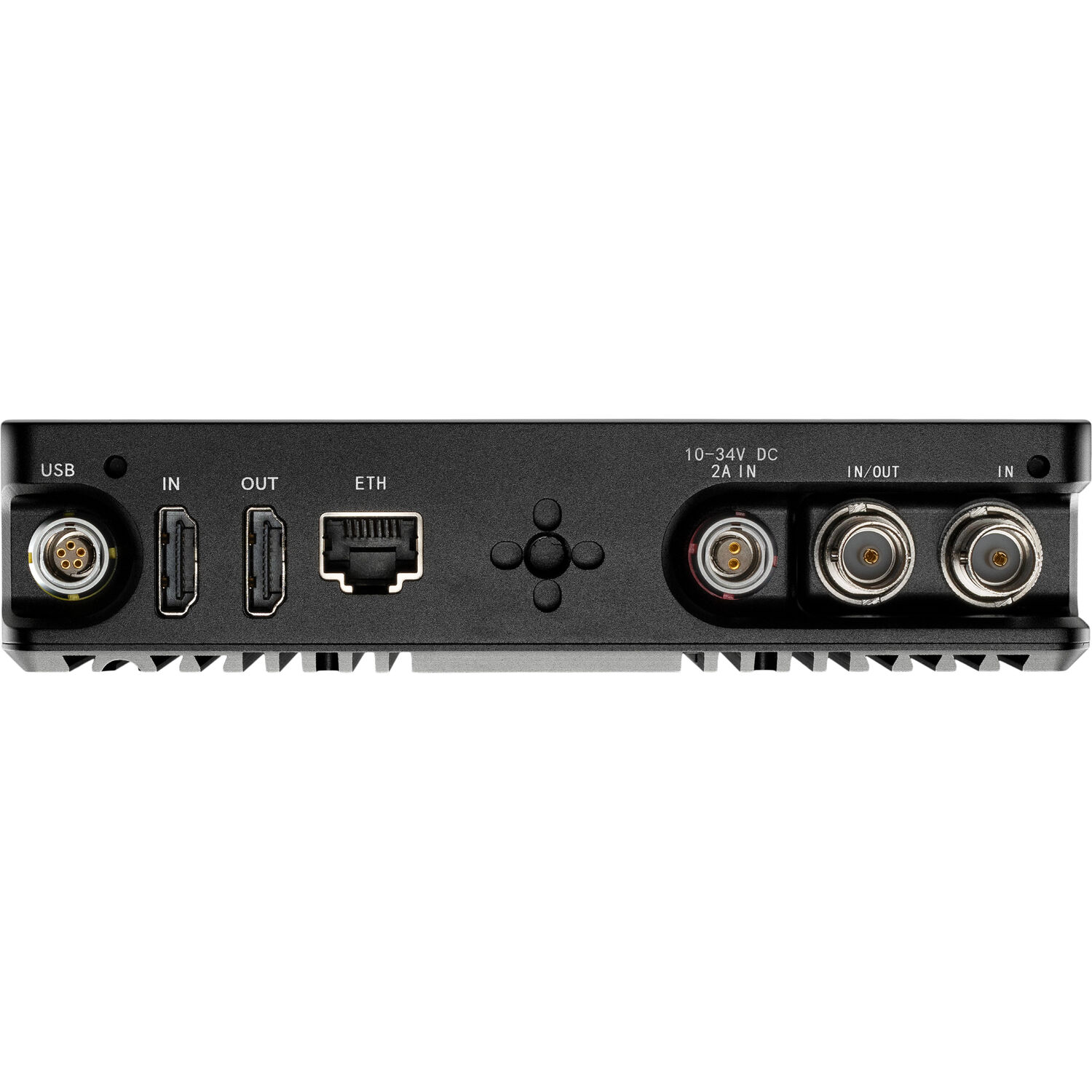

Inputs/Outputs

Video I/O	1x BNC (3G-SDI) Output 1x HDMI Output 1x BNC (3G-SDI) Input 1x HDMI Input
Embedded Audio	HDMI SDI
Audio I/O	1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x LEMO 0B 2-Pin (34 VDC / 2.1 A) Input
Other I/O	1x LEMO 5-Pin Output 1x RJ45 Output
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [Firmware Update Only]

Wireless

Wireless	Proprietary Wireless
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
480i
576i
HDMI (8/10/12-Bit)
UHD 4K: 30
1080p: 60/59.94/50/30/25/24/23.98
1080PsF: 30/25/24/23.98
1080i: 60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
576p: 100/50
480p: 120/119.88/60/59.94
480i
576i

Power
